$22225.50/Each

This product is no longer available. We've left this page up for reference only.

  • Liquid propane, 80,000 BTU
  • 30 gallon capacity
  • 10 gauge stainless steel pan with a polished interior and coved corners
  • 3/4” triple-ply aluminum core cooking surface
  • 1/2 hp hydraulic tilting mechanism for accurate and smooth tilting
  • Welded stainless steel legs with front bullet feet and rear flanged feet
  • Controls mounted in cabinet base; temperature range of 160-445 degrees Fahrenheit
  • Spring-assisted hinged stainless steel cover with a handle
View all Blodgett Tilt Skillets / Braising Pans

Blodgett

Blodgett BCH-30G LP Specs
Width 36 Inches
Depth 39 1/2 Inches
Height 40 1/4 Inches
Hertz 60 Hertz
Phase 1 Phase
Voltage 115 Volts
Capacity 30 Gallons
Cover Type Hinged
Features Power Tilt
Gas Inlet Size 3/4 Inches
Installation Type Floor Model
Made in America Yes
NSF Listed Yes
Power Type Liquid Propane
Style Tilting
Temperature Range 160 - 445 Degrees F
Total BTU 80,000
Type Skillets

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?
Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!

Blodgett BCH-30G LP Details

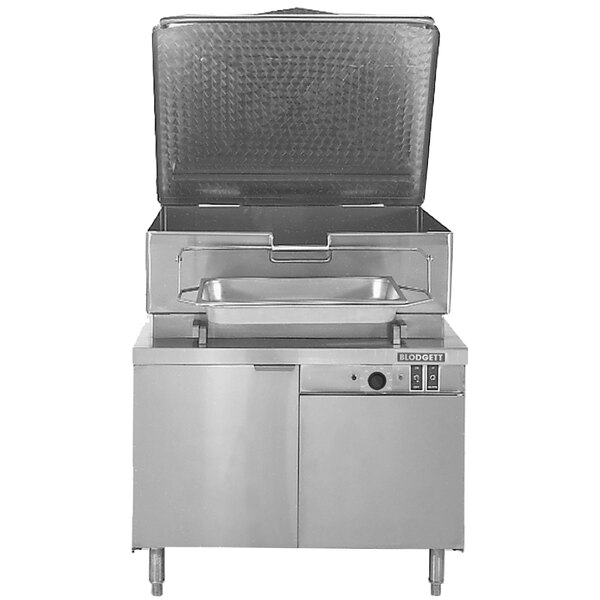

Cook large portions of ground meats, sauces, vegetables, and more with the BCH-30G liquid propane 30 gallon hydraulic tilt braising pan / tilt skillet! This 80,000 BTU unit features a large 30 gallon capacity that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges. Thanks to a 1/2 hp motor that drives a heavy duty hydraulic tilting mechanism, emptying the pan is even easier and safer than ever.

This 10 gauge stainless steel braising pan boasts a 3/4" triple-ply aluminum core cooking surface with a polished interior and coved corners for even heat distribution and easy cleanout. Plus, a removable pour strainer and no-drip condensate guide combine to further ease your cleaning and emptying experience.

Base-mounted controls, located on the front of the unit for easy access, offer a 160-445 degrees Fahrenheit temperature range. In addition, the high-temperature cut-off, cook indicator light, thermostat, and power switch all make it easy for your employees to operate this tilt skillet. Adjustable front bullet feet with rear flanged feet allow this braising pan to maintain proper leveling on any surface. A 115V electrical connection is required to power the controls.

Overall Dimensions:
Left to Right: 36"
Front to Back: 39 1/2"
Height: 40 1/4"
Capacity: 30 gallons

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
  • Made in America

    Made in America

    This item was made in the United States of America.
  • CSA Design Cert

    CSA Design Cert

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
  • CSA Blue Flame

    CSA Blue Flame

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.
  • 3/4

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection.

Resources and Downloads for
Blodgett BCH-30G LP

Spec Sheet Specsheet Manual Manual Warranty Warranty Parts Diagram Diagram

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
