Fuel Type: Natural Gas
Product Overview
- Durable stainless steel construction with 50 lb. oil capacity
- High-limit shut off for safety, electronic matchless ignition system
- Solid state analog control knob with digital display and 3 melt modes
- Built-in KleenScreen PLUS filtration system removes impurities and extends oil life
- Includes two twin size fry baskets with plastic-coated handles
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 215 lb.
- Width
- 15 5/8 Inches
- Depth
- 33 1/8 Inches
- Height
- 48 1/8 Inches
- Fry Pot Width
- 13 3/8 Inches
- Fry Pot Depth
- 14 1/8 Inches
- Amps
- 3.5 - 6.9 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120/240 Volts
- Burner Style
- Tube
- Cabinet
- Stainless Steel
- Capacity
- 50 lb.
- Capacity per Fry Pot
- 50 lb.
- Features
- Built-In Filtration System Energy Star Qualified Made in America NSF Listed
- Gas Connection Size
- 3/4 Inches
- Number of Fry Baskets
- 2 Fry Baskets
- Number of Fry Pots
- 1 Fry Pot
- Plug Type
- NEMA 5-15P
- Power Type
- Natural Gas
- Split Pot
- Without Split Pot
- Temperature Range
- 150 - 390 Degrees F
- Total BTU
- 75,000 BTU
- Type
- Gas Floor Fryers
Vulcan 1VHG50AF NAT Details

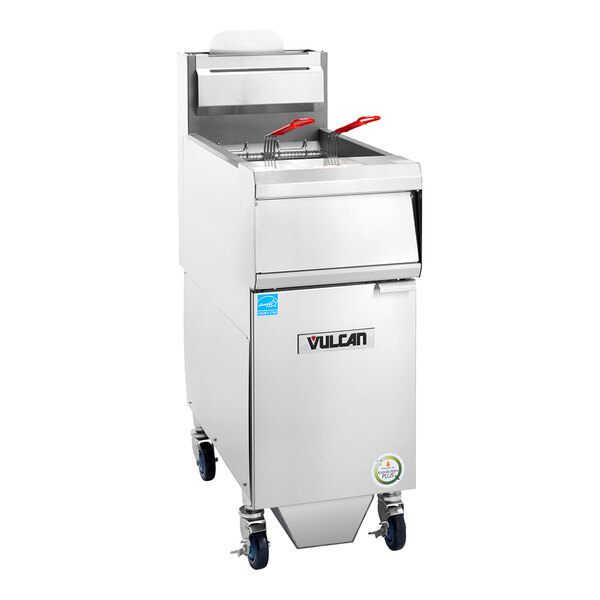

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 50 lb., this unit is ideal for industrial kitchens, restaurants, cafeterias, and other foodservice establishments where space is not a concern, and it's packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 13 3/8" x 14 1/8" frying area, this tube-style fryer system delivers 75,000 BTU of power and comes with 2 twin fry baskets, so you can get to frying as soon as you fill the tank! This fryer's output capacity can produce up to 69 lb. of 1/4" french fries per hour.

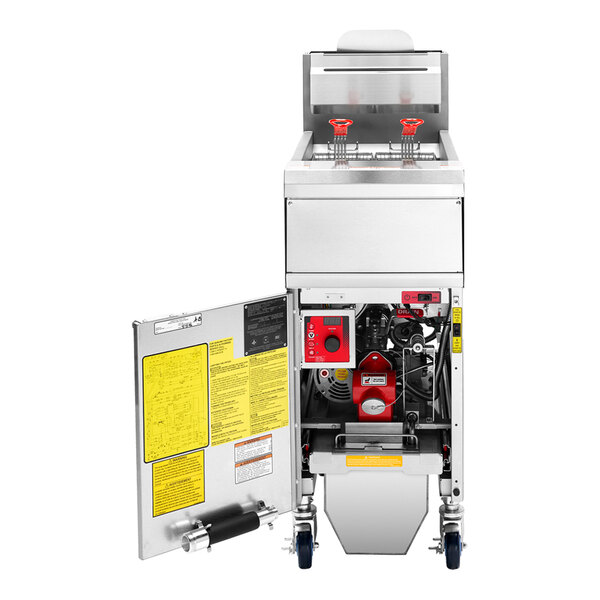

This fryer is equipped with a user-friendly solid state analog control knob with a digital character display that is located behind the access panel, which can be adjusted to provide a precise 150 to 390 degrees Fahrenheit temperature control within +/- 2 degrees Fahrenheit from the set point. This accurate temperature control combined with the unit's four heat exchanger tubes allows the oil temperature to recover rapidly as food is immersed for delicious and consistent results every time. Its LED temperature control display can show temperatures in Fahrenheit or Celsius. An electric matchless ignition system combined with three melt modes allows you to gradually heat up your oil and help preserve its life.
This fryer features a dry fire safety prevention sequence that will prevent the fryer from turning on if there is no oil in the tank. Plus, to ensure safety for all employees, a high-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. Its large cold zone holds larger amounts of sediment and helps prevent it from burning and contaminating the oil, helping to extend your oil life and the amount of time needed between filtering. For ultimate oil preservation, the KleenScreen PLUS filtration system aids by removing impurities, which improves the quality and taste of your product while extending the life of the oil by 200-400%. A one-touch button for filtration and a 1 1/4" full port drain valve make oil filtration and removal a quick and hassle-free process.
For added durability and long-lasting use, the cabinet and fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush, stainless steel crumb scoop, and clean-out rod. When cleaning behind the unit, the four adjustable 6" casters provide easy maneuverability. Two of the casters are locking to secure the unit in place while it's in use. Energy Star certified, this fryer offers 56% energy efficiency to ensure lower energy bills and possible energy rebates while helping you create delicious fried foods (see Energy Star website for a potential rebate on your purchase). This unit's filter battery comes with a filter pan, suction tube, screen assembly, high-temperature discard hose, crumb basket, manual, quick start guide, and warranty. This unit requires natural gas and a 120/240V phase 1 electrical connection for operation.
Overall Dimensions:
Left to Right: 15 5/8"
Front to Back: 33 1/8"
Height: 48 1/8"
Fry Pot Dimensions:
Width: 13 3/8"
Depth: 14 1/8"
Cooking Depth: 4 1/4"
Capacity: 50 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I modify this item?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
5-15P
This unit comes with a NEMA 5-15P plug.
Made in America
This item was made in the United States of America.
