Fuel Type: Natural Gas
Product Overview
- Energy Star 2 fryer system with 50 lb. oil capacity per tank and electronic matchless ignition
- Drain valve interlock switch automatically turns off gas burners when draining oil
- Solid state analog control knob with digital display and 2 melt modes
- Built-in KleenScreen PLUS filtration system removes impurities and extends oil life
- Includes two twin size fry baskets with plastic-coated handles per tank
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 530 lb.
- Width
- 31 1/4 Inches
- Depth
- 35 1/8 Inches
- Height
- 47 3/4 Inches
- Fry Pot Width
- 13 3/8 Inches
- Cooking Area Depth
- 4 1/2 Inches
- Fry Pot Depth
- 14 1/8 Inches
- Amps
- 7.2 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Burner Style
- Tube
- Cabinet
- Stainless Steel
- Capacity
- 100 lb.
- Capacity per Fry Pot
- 50 lb.
- Features
- Built-In Filtration System
- Fry Pot BTU
- 75,000
- Gas Connection Size
- 1 1/4 Inches
- Number of Fry Baskets
- 4 Fry Baskets
- Number of Fry Pots
- 2 Fry Pots
- Power Type
- Natural Gas
- Split Pot
- Without Split Pot
- Temperature Range
- 150 - 390 Degrees F
- Total BTU
- 150,000 BTU
- Type
- Gas Floor Fryers
Vulcan 2VHG50AF NAT Details

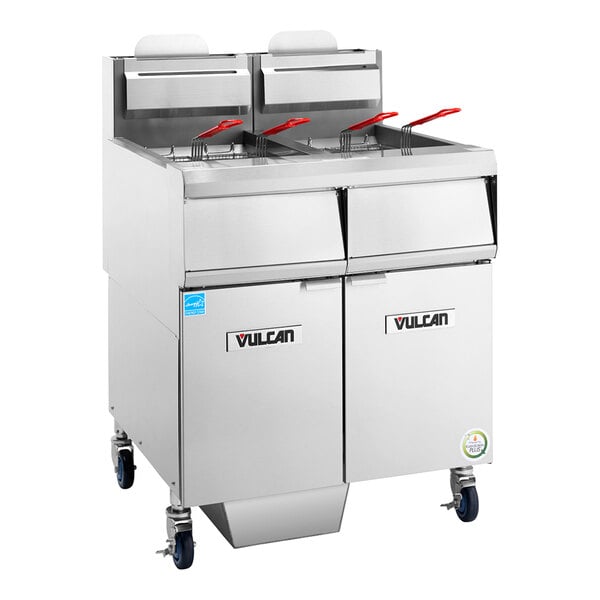

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 100 lb. total, this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 13 3/8" x 14 1/8" frying area per tank, this tube-style fryer system delivers 150,000 BTU of power and comes with 2 twin fry baskets per tank, so you can get to frying as soon as you fill the tank! This fryer's output capacity can produce up to 69 lb. of 1/4" french fries per hour per tank.
This fryer is equipped with a user-friendly solid state analog control knob with a digital character display that is located behind the access panel, which can be adjusted to provide a precise 150 to 390 degrees Fahrenheit temperature control within +/- 2 degrees Fahrenheit from the set point. This accurate temperature control combined with the unit's four heat exchanger tubes per tank allows the oil temperature to recover rapidly as food is immersed for delicious and consistent results every time. Its temperature control display can show temperatures in Fahrenheit or Celsius. An electric matchless ignition system combined with a standard preheat cycle and two melt modes per tank allows you to gradually heat up your oil and help preserve its life.

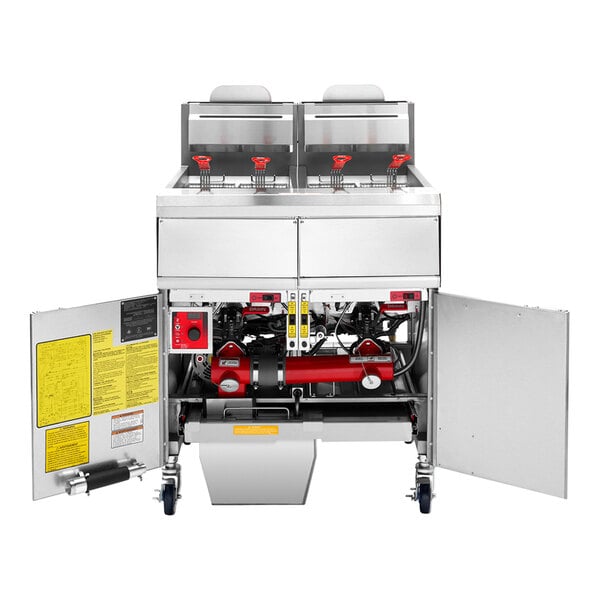

This fryer features a dry fire safety prevention sequence that will prevent the fryer from turning on if there is no oil in the tank. Plus, to ensure safety for all employees, a high-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. Its large cold zones hold larger amounts of sediment and help prevent it from burning and contaminating the oil, helping to extend your oil life and the amount of time needed between filtering. For ultimate oil preservation, the KleenScreen PLUS filtration system aids by removing impurities, which improves the quality and taste of your product while extending the life of the oil by 200-400%. A one-touch button to engage the pump and motor for filtration and a 1 1/4" full port drain valve make oil filtration and removal a quick and hassle-free process. Its drain valve interlock switch automatically turns the gas burners off when draining the oil. This unit features a 1/3 hp motor and pump that circulates hot frying compound at an impressive rate of 8 gallons per minute while the stainless steel mesh screen filter has a filter area of 330 square inches and filters from two sides. It has a hands-free oil return line connection, and the included 16 gauge stainless steel filter pan has a 65 lb. compound capacity.
For added durability and long-lasting use, the cabinets and fry tanks are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean-out rod. When cleaning behind the unit, the four adjustable 6" casters provide easy maneuverability. Two of the casters are locking to secure the unit in place while it's in use. Energy Star certified, this fryer offers 56% energy efficiency to ensure lower energy bills and possible energy rebates while helping you create delicious fried foods (see Energy Star website for a potential rebate on your purchase). This unit's filter battery comes with a filter pan, suction tube, screen assembly, high-temperature discard hose, crumb basket, manual, quick start guide, and warranty. This unit requires natural gas and a 120V phase 1 electrical connection for operation.
Overall Dimensions:
Left to Right: 31 1/4"
Front to Back: 35 1/8"
Height: 47 3/4"
Fry Pot Dimensions (per unit):
Width: 13 3/8"
Depth: 14 1/8"
Cooking Depth: 4 1/2"
Capacity: 50 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I modify this item?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
5-15P
This unit comes with a NEMA 5-15P plug.
Made in America
This item was made in the United States of America.
1 1/4" Gas Connection
This unit comes with a 1 1/4" gas connection to be installed by a professional.
Need Parts & Accessories?
Show replacement parts and accessories for Vulcan 2VHG50AF NAT today!
Resources and Downloads for
Vulcan 2VHG50AF NAT
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
