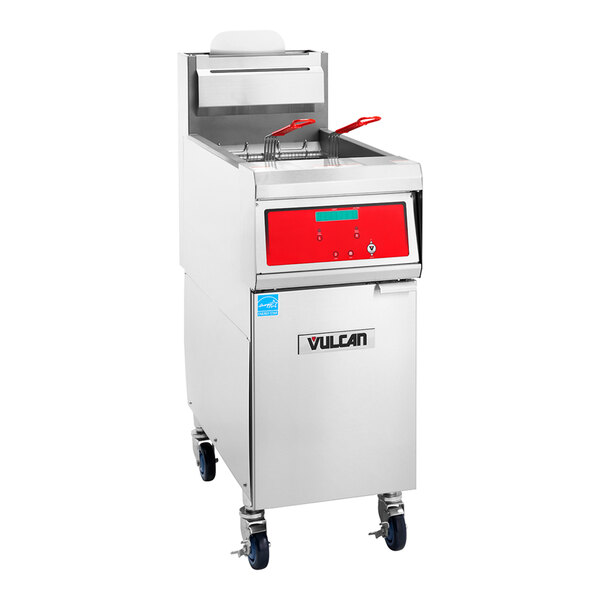

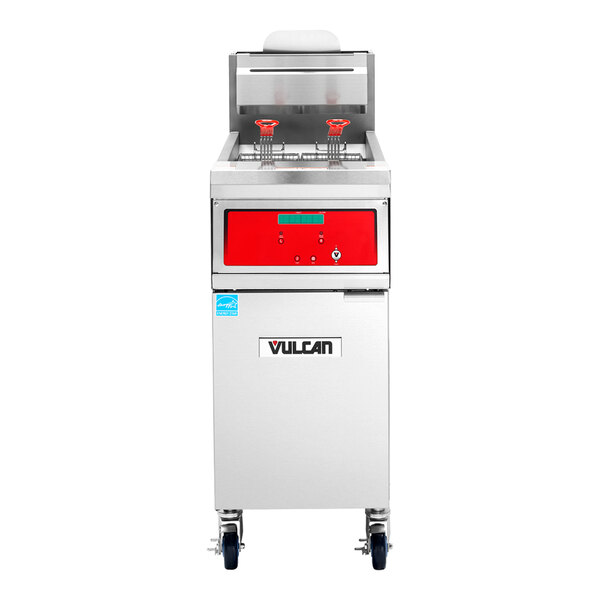

Vulcan 1VHG50D-NAT QuickFry Series 50 lb. Natural Gas Floor Fryer with Digital Controls - 75,000 BTU
Item number 9011vhg50dnMFR number 1VHG50D NAT
Works With
Apply, opens link in this tabEarn up to $277.86 back (27,786 points)
(27,786 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.
Usually Ships in 9 Months from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable stainless steel construction with a 50 lb. oil capacity
- Produces up to 60 lb. of 1/4" french fries per hour
- Digital controls with 2 countdown timers and 3 melt modes
- Features dry fire safety prevention, a high-limit indicator, and a drain valve interlock switch
- Includes 2 twin fry baskets with plastic-coated handles
UPC Code:400016545081
- Quantity
- 1/Each
- Shipping Weight
- 215 lb.
- Width
- 15 5/8 Inches
- Depth
- 32 11/16 Inches
- Height
- 47 3/4 Inches
- Fry Pot Width
- 13 3/8 Inches
- Cooking Area Depth
- 4 1/4 Inches
- Fry Pot Depth
- 14 1/8 Inches
- Amps
- 0.3 Amp
- Hertz
- 50/60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Burner Style
- Tube
- Cabinet
- Stainless Steel
- Capacity
- 50 lb.
- Caster Size
- 6 Inches
- Casters
- With Casters
- Control Type
- Digital
- Features
- Energy Star Qualified Made in America NSF Certified
- Frying Area
- 13 3/8 x 14 1/8 Inches
- Gas Connection Size
- 3/4 Inches
- Installation Type
- Floor Model
- Number of Fry Baskets
- 2 Fry Baskets
- Number of Fry Pots
- 1 Fry Pot
- Plug Type
- NEMA 5-15P
- Power Type
- Natural Gas
- Split Pot
- Without Split Pot
- Temperature Range
- 150 - 390 Degrees F
- Total BTU
- 75,000 BTU
- Type
- Gas Floor Fryers
Vulcan 1VHG50D NAT Details
Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 50 lb., this unit is ideal for industrial kitchens, restaurants, cafeterias, and other foodservice establishments. Boasting a 13 3/8" x 14 1/8" frying area, this tube-style fryer system delivers 75,000 BTU of power. Two twin fryer baskets with plastic-coated handles are included, allowing you to get started as soon as you fill the tank. This fryer produces up to 60 lb. of 1/4" french fries per hour. With an energy efficiency rating of 51%, it provides an impressive performance with reduced operating costs.
This fryer has user-friendly digital controls that allow the operator to cook with actual time or compensating time. It features 2 countdown timers, an auto and manual boil-out mode, and a digital temperature display that shows Fahrenheit or Celsius. This fryer can be precisely adjusted between 150 and 390 degrees Fahrenheit. This accurate temperature control combined with the unit's 4 heat exchanger tubes allows the oil temperature to recover rapidly as food is immersed. An electric matchless ignition system combined with 3 melt modes allows you to gradually heat up your oil and help preserve its life.
This fryer's dry fire safety prevention sequence prevents the fryer from turning on if there is no oil in the tank. A high-limit indicator shuts off the gas connection and standing pilot if the oil temperature is too high, while the drain valve interlock switch automatically turns off the gas burners when draining oil. Both the cabinet and fry tank are made of durable stainless steel. The included tank brush and clean-out rod simplify cleaning, while a 1 1/4" full port drain valve ensures hassle-free oil removal. The (4) 6" casters, 2 locking, make it easy to move for cleaning or lock in place during use. This unit requires natural gas and a 120V, 1-phase electrical connection for operation.
Overall Dimensions:
Left to Right: 15 5/8"
Front to Back: 32 11/16"
Height: 47 3/4"
Fry Pot Dimensions:
Width: 13 3/8"
Depth: 14 1/8"
Cooking Depth: 4 1/4"
Capacity: 50 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
5-15P
This unit comes with a NEMA 5-15P plug.
Made in America
This item was made in the United States of America.
NSF Certified
This item is certified by NSF to applicable standards.
CSA, US
This product is certified by CSA to applicable U.S. standards.
