Due to a manufacturer's price increase, this price will increase by 2.00% to 5.00% on 01/01/25

Earn up to $517.35 back (51,735 points)with a Webstaurant Rewards Visa® Credit Card

Fuel Type: Liquid Propane

Usually Ships in 9 Months from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Durable stainless steel construction with 50 lb. oil capacity
  • High-limit shut off for safety, electronic matchless ignition system
  • Solid state analog control knob with digital display and 3 melt modes

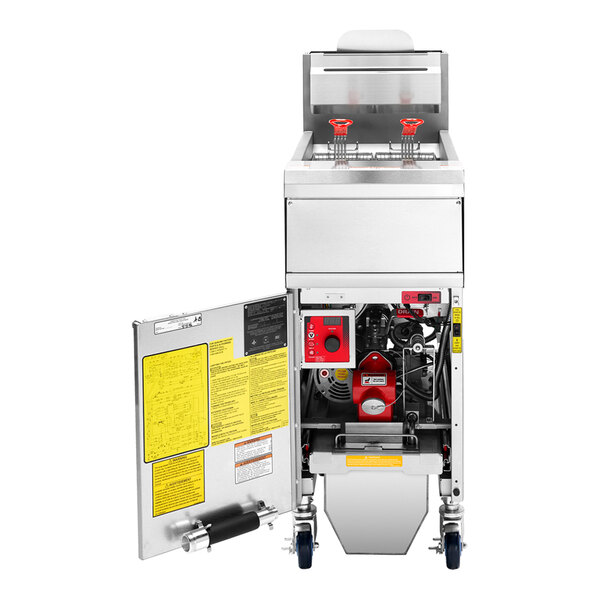

  • Built-in KleenScreen PLUS filtration system removes impurities and extends oil life
  • Includes two twin size fry baskets with plastic-coated handles
UPC Code:400016545012

Vulcan 1VHG50AF LP Specs

Quantity
1/Each
Shipping Weight
215 lb.
Width
15 5/8 Inches
Depth
33 1/8 Inches
Height
48 1/8 Inches
Fry Pot Width
13 3/8 Inches
Fry Pot Depth
14 1/8 Inches
Amps
3.5 - 6.9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
120/240 Volts
Burner Style
Tube
Cabinet
Stainless Steel
Capacity
50 lb.
Capacity per Fry Pot
50 lb.
Features
Built-In Filtration System  Energy Star Qualified  Made in America  NSF Listed
Gas Connection Size
3/4 Inches
Number of Fry Baskets
2 Fry Baskets
Number of Fry Pots
1 Fry Pot
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Split Pot
Without Split Pot
Temperature Range
150 - 390 Degrees F
Total BTU
70,000 BTU
Type
Gas Floor Fryers

Vulcan 1VHG50AF LP Details

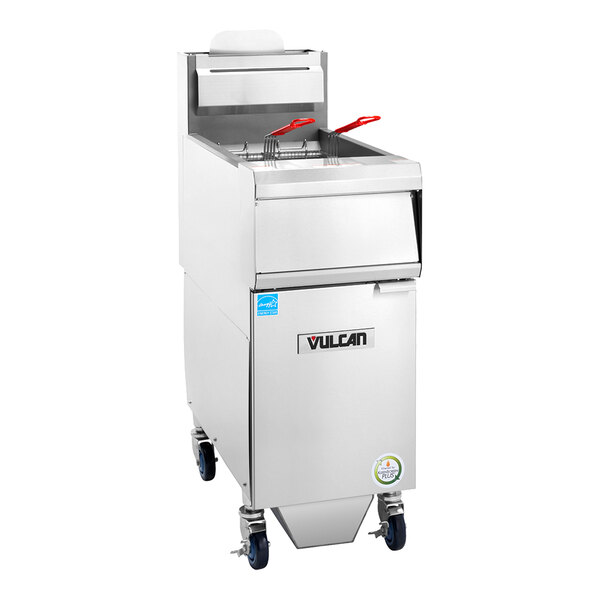

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 50 lb., this unit is ideal for industrial kitchens, restaurants, cafeterias, and other foodservice establishments where space is not a concern, and it's packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 13 3/8" x 14 1/8" frying area, this tube-style fryer system delivers 70,000 BTU of power and comes with 2 twin fry baskets, so you can get to frying as soon as you fill the tank! This fryer's output capacity can produce up to 69 lb. of 1/4" french fries per hour.

This fryer is equipped with a user-friendly solid state analog control knob with a digital character display that is located behind the access panel, which can be adjusted to provide a precise 150 to 390 degrees Fahrenheit temperature control within +/- 2 degrees Fahrenheit from the set point. This accurate temperature control combined with the unit's four heat exchanger tubes allows the oil temperature to recover rapidly as food is immersed for delicious and consistent results every time. Its LED temperature control display can show temperatures in Fahrenheit or Celsius. An electric matchless ignition system combined with three melt modes allows you to gradually heat up your oil and help preserve its life.

This fryer features a dry fire safety prevention sequence that will prevent the fryer from turning on if there is no oil in the tank. Plus, to ensure safety for all employees, a high-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. Its large cold zone holds larger amounts of sediment and helps prevent it from burning and contaminating the oil, helping to extend your oil life and the amount of time needed between filtering. For ultimate oil preservation, the KleenScreen PLUS filtration system aids by removing impurities, which improves the quality and taste of your product while extending the life of the oil by 200-400%. A one-touch button for filtration and a 1 1/4" full port drain valve make oil filtration and removal a quick and hassle-free process.

For added durability and long-lasting use, the cabinet and fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush, stainless steel crumb scoop, and clean-out rod. When cleaning behind the unit, the four adjustable 6" casters provide easy maneuverability. Two of the casters are locking to secure the unit in place while it's in use. Energy Star certified, this fryer offers 56% energy efficiency to ensure lower energy bills and possible energy rebates while helping you create delicious fried foods (see Energy Star website for a potential rebate on your purchase). This unit's filter battery comes with a filter pan, suction tube, screen assembly, high-temperature discard hose, crumb basket, manual, quick start guide, and warranty. This unit requires liquid propane and a 120/240V phase 1 electrical connection for operation.

Overall Dimensions:
Left to Right: 15 5/8"
Front to Back: 33 1/8"
Height: 48 1/8"

Fry Pot Dimensions:
Width: 13 3/8"
Depth: 14 1/8"
Cooking Depth: 4 1/4"
Capacity: 50 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan 1VHG50AF LP today!

Resources and Downloads for
Vulcan 1VHG50AF LP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
