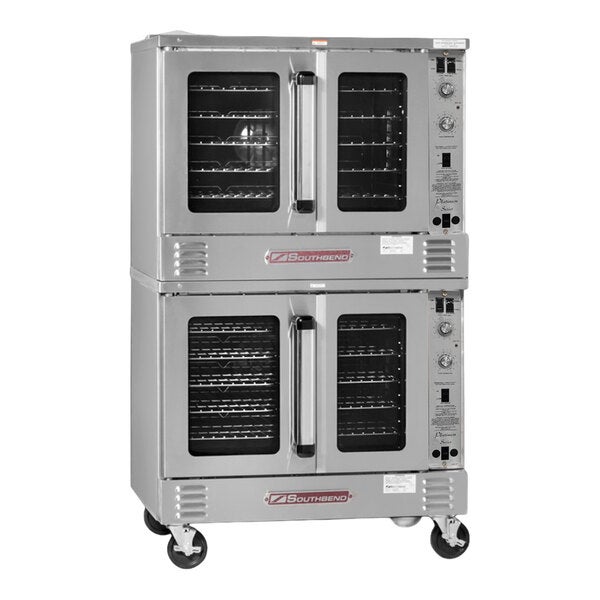

Southbend PCG100B/SD Platinum Series 5-Shelf Double Deck Full Size Deep Depth Liquid Propane Convection Oven - 100,000 BTU

Item number  996pcg100bslMFR number  PCG100B/SD

Ships free withLearn More
Free Shipping

$11,369.00/Each

What We Offer

shield icon

Protect Your Product

Coverage starting at $131.51

Add to Wish List

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Operates using high-efficiency inshot burners and 2-speed, 1/2 hp fan motors
  • Dependent glass doors swing open a full 180 degrees
  • Each oven includes 11-position rack guides and 5 oven racks for a custom configuration
  • Easy to use with independent solid-state thermostats and 60-minute mechanical cook timers
  • Heat-keeping dual door seal system helps maintain consistent, efficient cooking temperatures

UPC Code:400018168493

View All Products From SouthbendView all Southbend Commercial Convection Ovens

Works With

Southbend PCG100B/SD Specs

Quantity
1/Each
Shipping Weight
1180 lb.
Width
38 Inches
Depth
43 1/2 Inches
Height
64 Inches
Interior Width
29 Inches
Interior Depth
29 Inches
Interior Height
20 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Casters
Without Casters
Construction
Stainless Steel
Control Type
Dial
Controller Amps
4.3 Amps
Door Type
Glass
Features
Energy Star Qualified Made in America NSF Certified
Gas Connection Size
3/4 Inches
Hinge Location
Left Right
Horsepower
1/2 hp
Installation Type
Freestanding
Interior Material
Porcelain
Number of Chambers
2 Chambers
Number of Decks
Double
Number of Doors
4 Doors
Number of Racks
10 Racks
Oven Interior Style
Deep Depth
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Product Line
Southbend Platinum Series
Size
Full Size
Temperature Range
140 - 500 Degrees F
Total BTU
100,000 BTU
Type
Convection Ovens

Southbend PCG100B/SD Details

Enhance the efficiency of your kitchen with this Southbend Platinum series convection oven! This unit features a double-stack design with 2 ovens for optimal space efficiency. It produces 50,000 BTU per oven, and it operates using high-efficiency, non-clogging inshot burners and 2-speed, 1/2 hp fan motors. Its dependent glass doors have stay-cool, heavy-duty handles and open a full 180 degrees to easily access the interior. The interior is illuminated with bright lighting to easily monitor the cooking process. Each oven has heavy-duty, removable 11-position wire rack guides spaced on 1 5/8" centers and 5 plated oven racks, allowing for a custom configuration.

This convection oven is easy to operate with independent solid-state thermostats and 60-minute mechanical cook timers. It adjusts from 140 to 500 degrees Fahrenheit to accommodate a wide variety of foods. It has energy-saving, high-efficiency glass windows and a heat-keeping dual door seal system to maintain consistent, efficient cooking temperatures. Plus, it has a forced cool down fan mode to ensure quick, even cooking. The unit's deep depth offers more interior oven space than standard convection ovens.

This unit features electric ignitions with a flame safety device for safe operation. Each oven has a durable stainless steel front, sides, top, and rear jacket with a coved, fastener-free porcelain enamel interior. It stands on sturdy 6" stainless steel legs for optimal stability (casters sold separately). This unit has a plug-in, plug-out control panel that slides out for easy full-view servicing. It requires both a liquid propane gas connection and a 120V, 1 phase electrical connection for operation, and it includes the necessary stacking kit.

Overall Dimensions:
Width: 38"
Depth: 43 1/2"
Height: 64"

Interior Dimensions:
Width: 29"
Depth: 29"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • CSA, US and Canada

    CSA, US and Canada

    This product is certified by CSA to applicable U.S. and Canadian standards.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

My business is at a high elevation; does this change anything when I order gas cooking equipment?
Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
