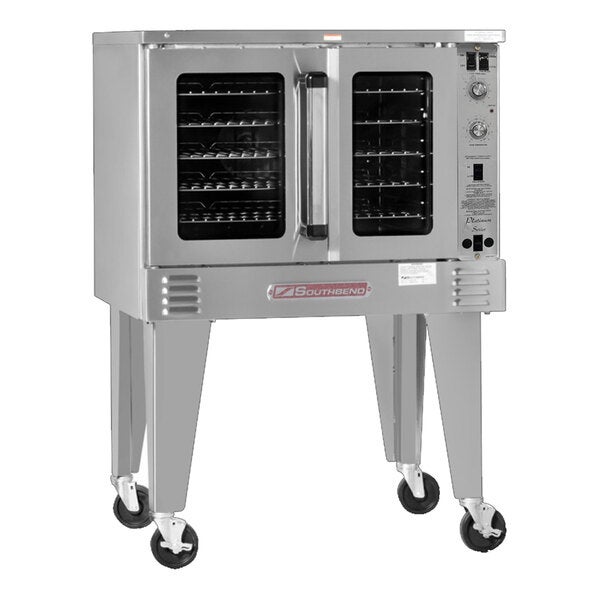

Southbend PCE75B/SD Platinum Series 5-Shelf Single Deck Full Size Deep Depth Electric Convection Oven - 208V, 3 Phase, 7.5 kW

Item number  996pce75bsdcMFR number  PCE75B/SD

Ships free withLearn More
Free Shipping

$6,512.00/Each

What We Offer

Protect Your Product

Coverage starting at $131.51

Add to Wish List

Installation Services

Check if installation is currently available for your area.

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Operates using a 7.5 kW heating element and a 2-speed, 1/2 hp fan motor
  • Dependent, 2-piece glass doors swing open a full 180 degrees
  • 11-position rack guides allow you to reconfigure the 5 included oven racks
  • Easy to use with a solid-state thermostat and a 60-minute mechanical cook timer
  • Heat-keeping dual door seal system helps maintain consistent, efficient cooking temperatures

UPC Code:400018168387

View All Products From SouthbendView all Southbend Commercial Convection Ovens

Works With

Southbend PCE75B/SD Specs

Quantity
1/Each
Shipping Weight
680 lb.
Width
38 Inches
Depth
43 1/2 Inches
Height
55 Inches
Interior Width
29 Inches
Interior Depth
29 Inches
Interior Height
20 Inches
Amps
20.9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208 Volts
Wattage
7.5 Kilowatts
Casters
Without Casters
Construction
Stainless Steel
Control Type
Dial
Controller Amps
4.3 Amps
Door Type
Glass
Features
Energy Star Qualified Made in America NSF Certified
Hinge Location
Left Right
Horsepower
1/2 hp
Installation Type
Freestanding
Interior Material
Porcelain
Number of Chambers
1 Chamber
Number of Decks
Single
Number of Doors
2 Doors
Number of Racks
5 Racks
Oven Interior Style
Deep Depth
Plug Type
Hardwire
Power Type
Electric
Product Line
Southbend Platinum Series
Size
Full Size
Temperature Range
140 - 500 Degrees F
Type
Convection Ovens

Southbend PCE75B/SD Details

Enhance the efficiency of your kitchen with this Southbend Platinum series convection oven! This oven operates using a 7.5 kW high-efficiency heating element and a 2-speed, 1/2 hp fan motor. Its dependent, 2-piece glass doors have a stay-cool, heavy-duty handle and open a full 180 degrees to easily access the interior. The interior is illuminated with bright lighting to easily monitor the cooking process. This unit has heavy-duty, removable 11-position wire rack guides spaced on 1 5/8" centers, allowing you to reconfigure its 5 plated wire oven racks.

This convection oven is easy to operate using its solid-state thermostat and 60-minute mechanical cook timer. It adjusts from 140 to 500 degrees Fahrenheit to accommodate a wide variety of foods. It has energy-saving, high-efficiency glass windows and a heat-keeping dual door seal system to maintain consistent, efficient cooking temperatures. Plus, it has a forced cool down fan mode to ensure quick, even cooking. The unit's deep depth offers more interior oven space than standard convection ovens.

This convection oven features a durable stainless steel front, sides, and top, while its interior has a coved, fastener-free porcelain enamel finish. It stands on sturdy 26" triangular stainless steel legs for optimal stability (casters sold separately). This unit has a plug-in, plug-out control panel that slides out for easy full-view servicing. For safe use, it has manual reset high-limit temperature control to protect against overheating. This hardwired unit requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Width: 38"
Depth: 43 1/2"
Height: 55"

Interior Dimensions:
Width: 29"
Depth: 29"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • CSA, US and Canada

    CSA, US and Canada

    This product is certified by CSA to applicable U.S. and Canadian standards.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
