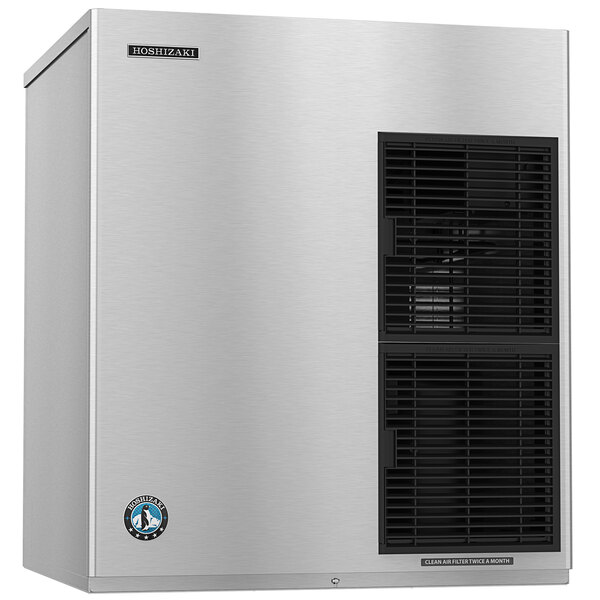

Hoshizaki F-1501MRJ-C Slim Line Series 30" Remote Condenser Modular Cubelet Ice Machine - 208-230V; 1 Phase; 1335 lb.

The purpose of this video is to demonstrate the proper installation of Hoshizaki ice machines. While the KM cuber and flaker machines differ in some features, the installations are basically the same. In order to avoid problems after starting up, it is important that you install these machines properly the first time. There are several things you should do before installing the ice maker. First, take a look at the installation site. Remember, these ice makers are not intended for outdoor use. For best results, the ice maker should not be located next to ovens, grills, or other high-heat producing equipment. The location should provide a firm, level foundation for the ice maker and storage bin. Check the installation site to be sure there's an adequate water supply and proper drainage. Be sure to allow for a 6 inch clearance at the rear, sides, and top of the machines intended location to allow for proper air circulation and ease of maintenance and service. If you are installing an auger type ice maker, it is necessary to allow for adequate clearance above the unit to allow for during service. Next, inspect the exterior of the cartons for visible damage and unpack the storage bin. Make sure it is the correct bin for your application. Attach the four adjustable legs provided to the bottom of the storage bin and position it in the selected permanent position. Then, unpack the ice maker, being careful to save the registration cards located in the pouch on the carton. Also, remove all packing material and tape from inside the machine and remove the package containing the installation manual and accessories. Always refer to this manual or your Hoshizaki technician's pocket guide and carefully follow the instructions for installing the ice maker. To prevent damage, remove the outer panels before installing the ice maker. Now, check to see that the refrigerant lines do not rub or touch other line surfaces. On air cooled units, be sure that the fan blade turns freely. Check that the compressor is snug on all mounting pads. Finally, check the name plate to make sure that your electrical service is the same as the voltage specified. The gasket provided with the Hoshizaki bins provides an adequate seal between the two units. Place the ice maker on top of the storage bin and secure it by using the two mounting brackets and four bolts provided. Level the ice maker storage bin in both the left to right and front to rear directions using the adjustable bin legs. If you're stacking two S units on a single bin, remove the top panel and ABS evaporator cover from the lower unit. Set the second unit on top and secure it with the brackets provided in the accessory package. Remove the bin control holder and bulb from the top bracket and round it to the bottom unit bracket, taking care not to touch the suction or discharge lines or the compressor base with the controlled capillary tube. Use the top bulb holder to secure it to the bottom bracket. Plug in both bin control plugs and be aware that Hoshizaki stacked units operate independently of each other. When making the electrical connections, it is important that they be made in accordance with the instructions on the warning tag provided with the leads in the junction box. Make sure the white leads are connected to the neutral conductor of the power source. To prevent possible electric shock or damage to the machine, be sure to install a proper ground wire to the ice maker. On 208/230V single-phase applications, a dedicated neutral wire is required by national electrical codes. A separate power supply or receptacle is required for the installation of each ice maker. Be sure to check the name plate for proper capacity. On units requiring the installation of a remote condenser, the unit must be installed in a permanent location. If the condenser unit supplied is not the appropriate Hoshizaki condenser, be sure that the application has been approved in writing by the Hoshizaki technical support department. The installation site should be firm and flat. The location should also be dry and well ventilated. This means locating the unit away from standing water and providing 24 inch clearance on both the front and rear of the unit. Also, when locating the condenser, keep in mind that the maximum refrigerant line length with a factory charge is 66 feet. This can be extended to a maximum of 100 feet with an additional charge. Consult the manual for recommendations for line size and charge amounts. To install the remote condenser unit, first remove it from the carton and secure the legs squarely with eight M8 by 16 mm hexagon bolts and M8 nuts. Next, secure the legs to the roof curb with eight bolts in the eight mounting holes. When installing two remote condenser units, you may stack them to save space. Attach the upper condenser unit on top of the lower unit and secure it with the four screws provided. When installing two copper tubing sets between the ice maker and condenser units, take extra care to mark the refrigerant lines and electrical connections. This will assure that they will not get crossed during installation. Each copper tubing should be sized properly and insulated separately. Pre-charged tubing kits are available from Hoshizaki America in 20, 35, and 55 foot lengths. Line sets fabricated on the job should be evacuated through the charging ports on the Aeroquip couplings and charged with refrigerant vapor to a pressure of 15 to 30 PSIG. Pre-charged tubing kits do not need to be evacuated. To connect line sets to the ice maker and condensing units, remove the plastic caps that connect the couplings and place a small amount of clean, dry refrigerant oil on the O rings and male threads on each connection. Connect the refrigerant lines with the proper-sized Aeroquip fittings to the connection of the condenser unit and ice maker. Then, tighten the fittings until they bottom out, and turn them 1/4 round more. This provides a leak free, brass to brass seal. The fan controlled wiring in the ice making unit requires a 3 wire circuit. To connect the circuit, first remove the panel and junction box cover from the condenser unit. This circuit should be routed through seal-tight conduit. A disconnect may be required by a local code. Connect the fan motor leads in the junction box of the remote condenser unit to the fan motor leads in the junction box of the ice maker. A proper ground wire is required to prevent possible electrical shock. The ice maker inlet water line must be sized correctly for proper operation. Check your manual carefully to be sure which size is required for the ice maker you are installing. Depending on the local water quality, the installation of an external filter with an adequate flow rate may be required for the ice making inlet. The water supply pressure should be a minimum of 10 PSIG and a maximum of 113 PSIG. If the pressure exceeds 113 PSIG, you will need to install a pressure reducing valve. On water cooled models, two separate water supply inlets are provided: one for the ice making inlet and the other for the water cooled condenser inlet. The drain outlet for the ice maker reservoir uses a 3/4 inch female pipe thread or FPT. The drain for condensation is a 3/8 inch ID pipe. Be sure the ice maker drain and the condenser drain piping connections are made separately from the bin drain. Hard piping with copper or PVC is recommended. On water cooled models, a separate 1/2 inch FPT connection is provided for the condenser drain outlet. All Hoshizaki ice makers should be installed in accordance to all applicable national, state, and local regulations. Also, a back flow preventer may be required by local codes. Now that you have installed the Hoshizaki ice maker, review the final check list provided in the installation manual. At the point that the list requires you to start the ice machine, flush the water system thoroughly and check the unit for proper operation. Check the bin control switch for correct operation and position. This can be accomplished by holding an ice cube in contact with the bulb while the ice maker is running. The machine should stop within six to ten seconds. Once the installation is complete, carefully score the edges of the protective plastic film and peel the film from the exterior panels. Make sure to give the end user the instruction manual and review the operation of the ice maker, stressing the importance of performing the recommended periodic maintenance. Also, be sure to give the end user the name and phone number of an authorized service agent. Remind them to fill out the warranty tag and forward it to the factory for warranty registration. Once you have successfully completed the check list, you can be sure that the Hoshizaki ice maker is installed correctly and will avoid the unnecessary problems that sometimes occur due to improper installation. Remember, while this video has shown you the proper installation procedures, you should always refer to the ice maker manual or your Hoshizaki technician's pocket guide for detailed installation information.

I'm Jenner Cormier, We're here today at our beautiful bar, Isabelle, going to make you guys a few drinks with Hoshizaki ice, our preferred choice. We're going to start with some chocolate bitters, going to add in 2 dashes of those. Followed by some fresh meyer lemon juice, and a barspoon of homemade yellow plum jam. You could substitute in just about anything, in this case. Anything seasonal, anything with some nice sweetness, some nice brightness. That'll act as our sweetening agent as well. We're going to add a little bit of fresh mint, just going to use some of the leaves, leave that sprig for garnish. We're going to add some overproof bourbon, a nice healthy ounce. Followed by an aromatized wine, full French. So we're going to add some ice in here, give it a good shake. Today, we're lucky enough to be using Hoshizaki's crescent cube, which is going to give us a really nice chill on the drink without over diluting. Now we're going to fine strain this into a chilled glass. See we don't have many ice shards? It's that wonderful, dense, crescent cube we used. Going to quickly chill down our mixing vessel, with this wonderful 1" cube from Hoshizaki. We're going to jump right in, 2 dashes of bitter truth Jerry Thomas bitters, followed by a healthy half ounce of moscow, we will follow that up with a nice artichoke flavored amaro. Tie that drink together with Plantation's pineapple rum. So we're stirring this drink with Hoshizaki 1" cubes, they're nice and dense, so we're going to get a really wonderful chill with just the right amount of dilution that we're looking for. We're going to strain that into a nice, chilled, old fashioned glass, and we're going to express an orange zest over the surface of the drink. I think that far too often, ice is overlooked as a main ingredient in drink making. You can depend on Hoshizaki's ice to produce a consistent, final product.
