$354.41/Each

Ships free with Plus

for details

Earn up to $10.63 back (1,063 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 10" tall gooseneck spout, 1 GPM laminar spray device
  • 3/8 compression connection for water line; 3/8" back-check tee mixing valve included
  • 24" long flex hose connects faucet to control module
  • Powered via plug-in adapter or with 4 AA batteries (both included)
  • Brass construction, polished chrome finish
UPC Code:671254438903

Sloan 3362149 Specs

Quantity
1/Each
Shipping Weight
4.82 lb.
Spout Length
5 1/4 Inches
Faucet Height
10 Inches
Battery Type
AA
Faucet Centers
Single
Features
ADA Compliant  Automatic Shutoff  Flex Inlets Included  Hands Free  Mixer
Finish
Chrome
Flow Rate
1 GPM
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Spout Clearance
7 1/4 Inches
Spout Type
Gooseneck
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

I live in California. Can I purchase this product?

This product cannot be shipped to California.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!

Sloan 3362149 Details

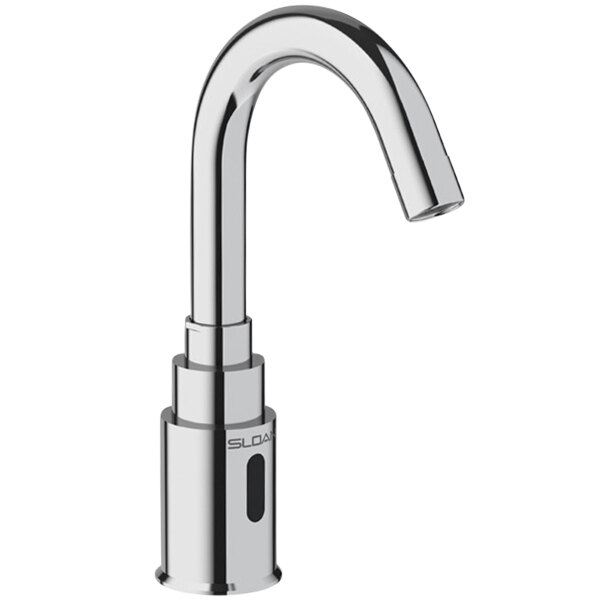

This Sloan 3362149 deck mounted sensor faucet with 10" gooseneck spout, 4" trim plate, and 1 gpm laminar spray device is a great way to bring the convenience and safety of hands-free operation to your restroom! It features a polished chrome finish that complements nearly any design aesthetic, lending a subtle, modern accent to any sink. It features a 10" high curved gooseneck spout with a 1 gpm laminar spray device, which provides a steady stream of water without aerating the water stream. This design is particularly important in applications where contamination is a concern, since a typical aerator can introduce airborne germs into the water supply. This type of stream is idea for high flow applications.

The infrared sensor has an adjustable range of 4" - 12" and comes set with a default timeout of 30 seconds. By using a sensor, you eliminate the faucet handle, which is a key contact point for germs to length. This helps to make your business safer and more sanitary for guests and employees alike! The faucet installs on a single mounting hole, with a 4" trim plate to blend it into the sink deck and to cover up any unused holes from an old faucet. A 24" long flex hose and 36" long sensor cable connect the faucet to the control module, which installs conveniently underneath the sink and is powered by the plug-in adapter or with 4 AA batteries (included). With batteries installed, it can provide up to 2 years of life, giving you plenty of time before a changeout is needed. A filtered solenoid valve and serviceable strainer filter are also included.

It also comes with a 3/8" back-check tee mixing valve to mix the incoming hot and cold water to the desired temperature. The supply hoses for the hot and cold lines to the tee, and the hose to connect the tee to the faucet are sold separately.

Overall Dimensions:
Spout Length: 5 1/4"
Faucet Height: 10"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • IAPMO R&T, UPC Certified - USA

    IAPMO R&T, UPC Certified - USA

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
