Canarm 13 1/2" Variable Speed Upblast Direct-Drive Aluminum Exhaust Fan ALX135-UD050EC - 1,850 CFM, 1 Phase, 1/2 hp

$855.00/Each

Try this Canarm 13 1/2" Variable Speed Upblast Direct-Drive Aluminum Exhaust Fan ALX135-UD050EC - 1,850 CFM, 1 Phase, 1/2 hp instead! With similar benefits and features, this item is an ideal alternative to your current item.

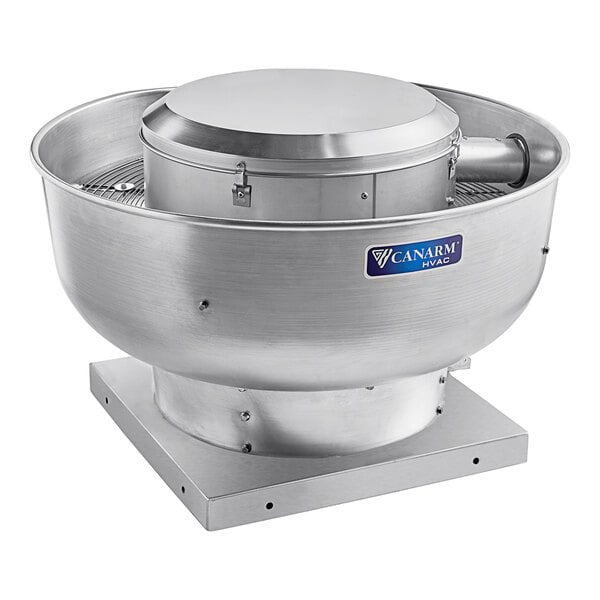

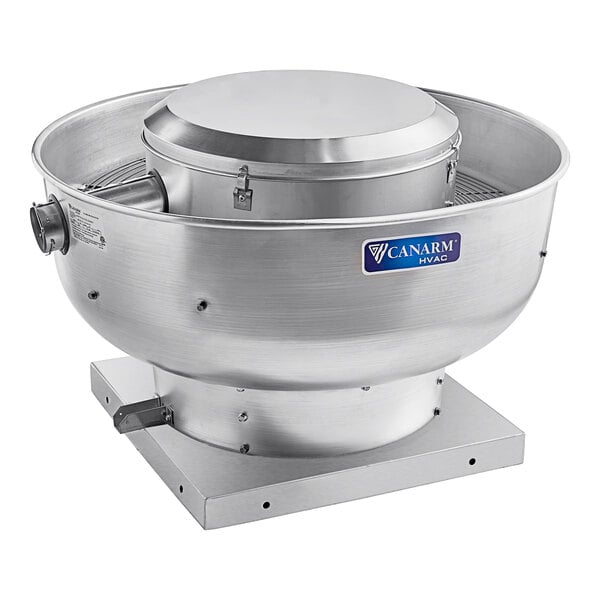

Canarm 13 1/2" Variable Speed Capable Upblast Direct Drive Aluminum Exhaust Fan ALX135-UD050V - 1,950 CFM, 1,650 RPM, 120/240V, 1 Phase

Item number  664l135u050vMFR number  ALX135-UD050V

$889.00/Each

Discounted shipping with Plus
Email Address

You will only be emailed once the product becomes available. We won't add you to our email list or share your data.

Earn up to $26.67 back (2,667 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Variable speed capable with the use of a remote 0-10V potentiometer (sold separately)
  • Durable spun aluminum construction does not chip, rust, or peel
  • 13 1/2" non-overloading wheel provides efficient airflow
  • Can be wall-mounted or installed on your roof top
  • Powerful 3/4 hp motor produces up to 1,950 CFM; 120/240V, 1 phase
UPC Code:alx135-ud050v
View All Products From CanarmView all Canarm Exhaust Fans

Works With

  • Canarm MC-10 10 Amp Variable Speed Wall-Mount Fan Control CN5101

    Canarm MC-10 10 Amp Variable Speed Wall-Mount Fan Control CN5101

    $68.49/Each

    Add to Cart
  • Canarm MC-5 230V 5 Amp Variable Speed Wall-Mount Fan Control CN5061-230

    Canarm MC-5 230V 5 Amp Variable Speed Wall-Mount Fan Control CN5061-230

    $65.49/Each

    Out Of Stock
  • Canarm R-B-8890321 Hinge Kit for ALX Series

    Canarm R-B-8890321 Hinge Kit for ALX Series

    $112.49/Each

    Add to Cart
  • Canarm 9301003 3000 Series 15" x 15" Gravity Shutter Backdraft Damper for ALX Series

    Canarm 9301003 3000 Series 15" x 15" Gravity Shutter Backdraft Damper for ALX Series

    $149.99/Each

    Add to Cart
  • Canarm 9301003-M 3000 Series 15" x 15" Motorized Shutter Backdraft Damper for ALX Series

    Canarm 9301003-M 3000 Series 15" x 15" Motorized Shutter Backdraft Damper for ALX Series

    $208.99/Each

    Add to Cart
  • Canarm RCG19.5 19 1/2" Galvanized Steel Roof Curb for ALX Series

    Canarm RCG19.5 19 1/2" Galvanized Steel Roof Curb for ALX Series

    $132.49/Each

    Add to Cart
  • Canarm RCGVH19.5 19 1/2" Galvanized Steel Vented Roof Curb for ALX Series

    Canarm RCGVH19.5 19 1/2" Galvanized Steel Vented Roof Curb for ALX Series

    $168.99/Each

    Add to Cart

Enhance the air quality in your warehouse, office, factory, kitchen, or commercial facility with this Canarm exhaust fan!

This versatile upblast unit works to exhaust air and provide ventilation in your establishment. It requires a 120/240V, 1 phase electrical connection for operation and must be hardwired; the cord and plug are not included. This unit is intended for use in accordance with NFPA 96 guidelines. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Durable Construction

It includes a durable spun aluminum construction that does not chip, rust, or peel for long-lasting use in industrial settings, commercial kitchen ventilation, or other foodservice environments.

Easily Accessible

For fast, tool-free access to the motor and other internal components on this exhaust fan, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance.

Optimal Protection

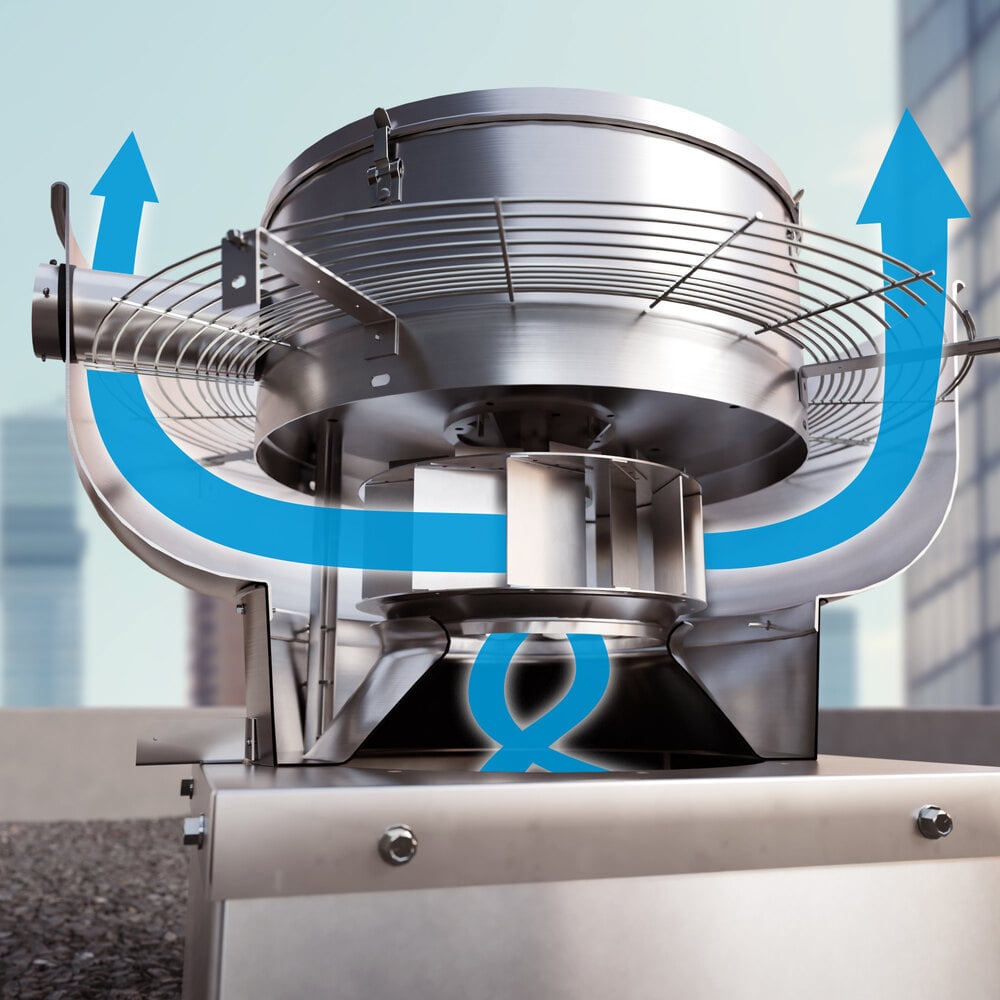

To ensure electrical components remain outside of this unit's airstream, it has a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire.

Consistent and Safe

Great for use in establishments producing grease-laden vapors or any application that requires reliable and efficient airflow, the 13 1/2" aluminum wheel is inclined backwards to exhaust air efficiently, and it's non-overloading to provide consistent and safe use. It boasts a 3/4 hp motor that delivers 1,300 CFM to 1,950 CFM with a maximum RPM of 1,650.

Mounting Versatility

This rugged exhaust fan mounts directly to the wall, or it can be installed on your rooftop. For rooftop applications, a 17" opening is required.

Innovative and Convenient

Essential to grease-laden air removal, this unit comes with an integrated grease drain that works to direct grease away from the fan base.

Variable Speed Control

The variable speed motor can easily be adjusted by using a remote 0-10V potentiometer (sold separately). The exhaust fan can be controlled up to 50' away when used with a remote potentiometer, providing you with convenient access even when you are not near the unit.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

Are any additional components needed to wire the motor of this unit?
Due to the difference in wires used by your electrician, spade connectors will need to be supplied to guarantee the correct size is used.
This fan has a variable speed capable motor. The speed of the motor can be easily adjusted by using a remote 0-10V potentiometer (sold separately).
There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Overall Dimensions:
Width:
32 1/8 Inches
Depth:
21 Inches
Height:
22 1/4 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Need Parts & Accessories?

Show replacement parts and accessories for Canarm ALX135-UD050V today!

Find Parts for this Item

Canarm ALX135-UD050V Specs

Quantity
1/Each
Shipping Weight
82 lb.
Width
32 1/8 Inches
Depth
21 Inches
Height
22 1/4 Inches
Wheel Diameter
13 1/2 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120/240 Volts
Color
Silver
Curb Size
21 Inches
Drive Type
Direct Drive
Horsepower
3/4 hp
Installation Type
Roof Top Mounted Wall Mounted
Material
Aluminum
Max CFM
1,950 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
RPM
1,650 RPM
Speeds
Variable Capable
Style
Fixed Upblast
Type
Exhaust Fans Upblast Exhaust Fans

Customer Reviews

1.0

Rated 1 out of 5 stars

1 Customer Reviews

Frequently Mentioned

  • fan
  • lid
  • mounted
  • speed
  • wall
  • answer
  • big
  • board
  • controller
  • creased
Showing 1 of 1 review
Review by

Scott S.

Posted on 09/30/2024

Verified Purchase

Rated 1 out of 5 stars

This fan came, the lid is creased. I thought no big deal I will use it anyway. looked inside the lid and there is no on board speed controller. Even though the description says that it comes with one OR you could purchase a wall mounted one. I spoke with two representatives who could not understand that and received an email for a link to the wall mounted speed switch as an answer. The wiring diagram is incorrect and the fan will not work hooked up direct.

Thank you for your review, Scott! A Customer Solutions Representative has been in contact with you about this exhauster. Please note, this item can be controlled using a remote 0-10V potentiometer (sold separately), and we have since updated the product page to reflect this information. Compatible potentiometers can be found in the Works With section on this page. If you have any further questions, please reach out to Customer Solutions—we'd be happy to help!
