Great product works great in our bakery over the oven to keep it cool in the summer

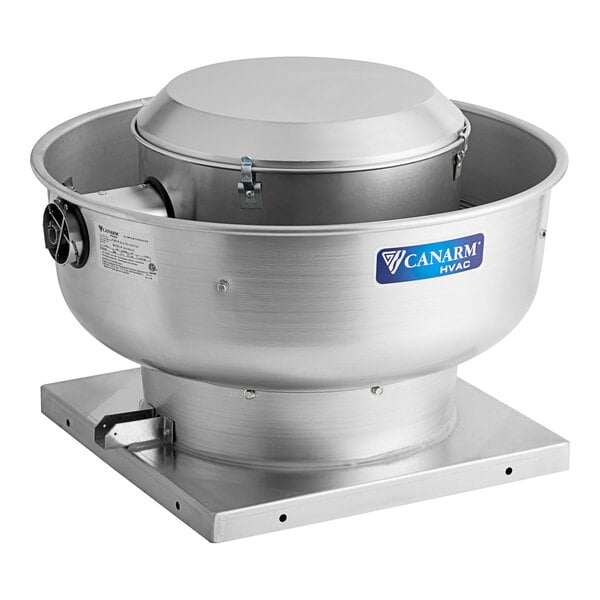

Canarm 10 1/2" Variable Speed Capable Upblast Direct Drive Aluminum Exhaust Fan ALX105-UD013V - 950 CFM, 1,650 RPM, 120/240V, 1 Phase
Item number 664l105u013vMFR number ALX105-UD013V
Works With
Apply, opens link in this tabEarn up to $13.20 back (1,320 points)
(1,320 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Variable speed capable with the use of a remote 0-10V potentiometer (sold separately)
- Durable spun aluminum construction does not chip, rust, or peel
- 10 1/2" non-overloading wheel provides efficient airflow
- Can be wall-mounted or installed on your roof top
- Powerful 1/8 hp motor produces up to 950 CFM; 120/240V, 1 phase
UPC Code:alx105-ud013v
Works With
Enhance the air quality in your warehouse, office, factory, kitchen, or commercial facility with this Canarm exhaust fan!
This versatile upblast unit works to exhaust air and provide ventilation in your establishment. It requires a 120/240V, 1 phase electrical connection for operation and must be hardwired; the cord and plug are not included. This unit is intended for use in accordance with NFPA 96 guidelines. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
"Perfect for my food trailer"
Read More ReviewsDurable Construction
It includes a durable spun aluminum construction that does not chip, rust, or peel for long-lasting use in industrial settings, commercial kitchen ventilation, or other foodservice environments.
Easily Accessible
For fast, tool-free access to the motor and other internal components on this exhaust fan, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance.
Optimal Protection
To ensure electrical components remain outside of this unit's airstream, it has a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire.
Consistent and Safe
Great for use in establishments producing grease-laden vapors or any application that requires reliable and efficient airflow, the 10 1/2" aluminum wheel is inclined backwards to exhaust air efficiently, and it's non-overloading to provide consistent and safe use. It boasts a 1/8 hp motor that delivers 300 CFM to 950 CFM with a maximum RPM of 1,650.
Mounting Versatility
This rugged exhaust fan mounts directly to the wall, or it can be installed on your rooftop. For rooftop applications, a 15" opening is required.
Innovative and Convenient
Essential to grease-laden air removal, this unit comes with an integrated grease drain that works to direct grease away from the fan base.
Variable Speed Control
The variable speed motor can easily be adjusted by using a remote 0-10V potentiometer (sold separately). The exhaust fan can be controlled up to 50' away when used with a remote potentiometer, providing you with convenient access even when you are not near the unit.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Are any additional components needed to wire the motor of this unit?
Due to the difference in wires used by your electrician, spade connectors will need to be supplied to guarantee the correct size is used.
How can I control the speed of the fan motor?
This fan has a variable speed capable motor. The speed of the motor can be easily adjusted by using a remote 0-10V potentiometer (sold separately).
How do I size a fan for my hood?
There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Overall Dimensions:
- Width:
- 25 Inches
- Depth:
- 19 Inches
- Height:
- 18 Inches
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:Need Parts & Accessories?
Show replacement parts and accessories for Canarm ALX105-UD013V today!
Resources and Downloads for Canarm ALX105-UD013V
Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Other Products from this Line
Customer Reviews
Customer Photos & Videos
Frequently Mentioned
- este
- great
- necesitas
- producto
- todo
- asegure
- bakery
- completar
- complicado
- compras

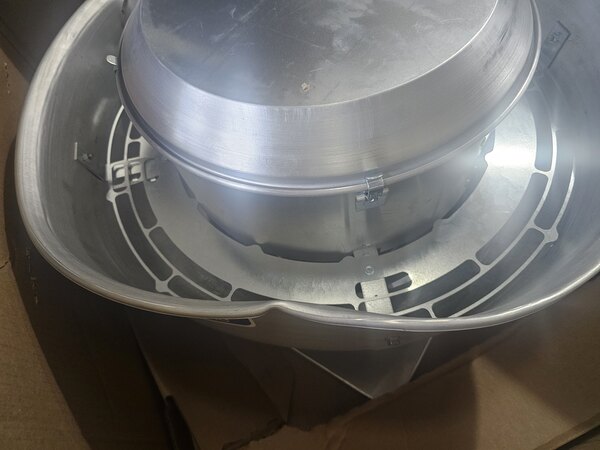

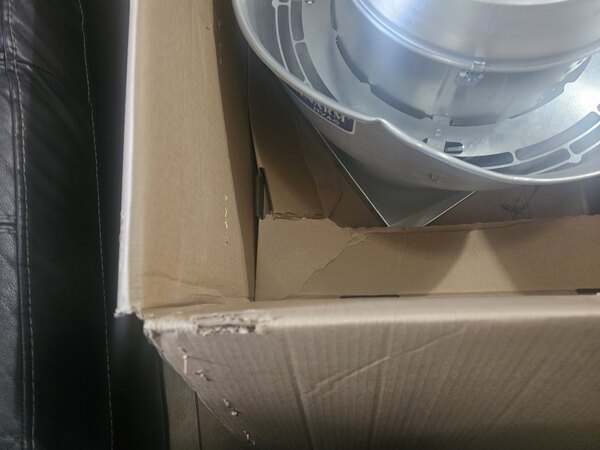

El Delivery (eso espero) fue un desastre. El producto llegó dañado y tratando de establecer contacto con el vendedor todo se hizo muy complicado. El equipo necesitó unos conectores para el motor (normalmente cuando compras este tipo de producto viene todo lo que necesitas para ponerlo.en.marcha). No creo vuelta a usar este web mientras no me asegure de que podré completar el trabajo.
Thank you for your review, Javier! We would like to gather more information about your experience with this exhauster. A Customer Solutions Representative will contact you soon.
Perfect for my food trailer
