$1,169.00/Each
Discounted shipping with PlusEarn up to $35.07 back (3,507 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Versatile variable speed settings with remote-controlled option (sold separately)
- Durable spun aluminum construction does not chip, rust, or peel
- 18 1/4" non-overloading wheel provides efficient airflow
- Can be wall-mounted or installed on your roof top
- Energy-saving, 1 hp motor produces up to 3400 CFM; 120/240V, 1 phase
Other Products from this Line
$452.49/Each
$426.99/Each
$579.00/Each
$929.00/Each
$699.00/Each
$839.00/Each
$679.00/Each
$959.00/Each
$699.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 114 lb.
- Width
- 37 1/2 Inches
- Depth
- 28 Inches
- Height
- 31 3/4 Inches
- Wheel Diameter
- 18 1/4 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120/240 Volts
- Color
- Silver
- Curb Size
- 24 3/4 Inches
- Drive Type
- Direct Drive
- Horsepower
- 1 HP
- Installation Type
- Roof Top Mounted Wall Mounted
- Material
- Aluminum
- Max CFM
- 3,400 CFM
- Min CFM
- 1,100 CFM
- Motor Type
- Direct Drive
- Plug Type
- Hardwire
- RPM
- 1,200 RPM
- Speeds
- Variable
- Style
- Fixed Upblast
- Type
- Upblast Exhausters

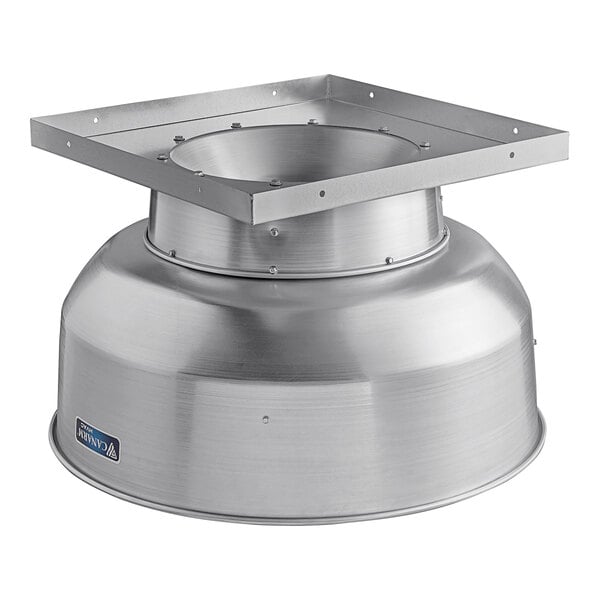

Canarm ALX180-UD100EC Details
Enhance air quality in your warehouse, kitchen, or commercial facility with this Canarm 10 1/2" variable speed upblast direct drive aluminum exhauster ALX105-UD033EC! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, this motor has up to 82" efficiency to reach your ideal speed every time. For energy-efficient use, this motor provides 70% energy savings compared to traditional motors.
The speed is easily adjustable using the on-board variable speed controls, or it can also be controlled remotely with a 0-10V potentiometer (sold separately). When used with the potentiometer, the exhauster is able to be controlled up to 50' away, providing you with convenient access even when you are not near the unit.
This rugged unit mounts directly to the wall or it can be installed on your roof top. For roof top applications, a 15" opening is required. This fan includes a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use. This unit boasts a 1 hp motor that delivers 1100 CFM to 3400 CFM. The 10 1/2" aluminum wheel is inclined backwards to efficiently exhaust air, and it is non-overloading to provide consistent, safe use. To easily access the motor, quick release latches are included.
This unit requires a 120/240V electrical connection for operation. It must be hardwired, a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 25"
Depth: 19"
Height: 18"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
Can I control the speed of the fan motor?
How do I size a fan for my hood?
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
