Product Overview

  • Versatile variable speed settings with remote-controlled option (sold separately)
  • Durable spun aluminum construction does not chip, rust, or peel
  • 12 1/4" non-overloading wheel provides efficient airflow
  • Can be wall-mounted or installed on your roof top
  • Energy-saving, 1/2 hp motor produces up to 1548 CFM; 120/240V, 1 phase
UPC Code:623454122144

Canarm ALX120-UD050EC Specs

Quantity
1/Each
Shipping Weight
35 lb.
Width
25 Inches
Depth
19 Inches
Height
19 Inches
Wheel Diameter
12 1/4 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120/240 Volts
Color
Silver
Curb Size
19 Inches
Drive Type
Direct Drive
Horsepower
1/2 HP
Installation Type
Roof Top Mounted  Wall Mounted
Material
Aluminum
Max CFM
1,548 CFM
Min CFM
325 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
RPM
1,800 RPM
Speeds
Variable
Style
Fixed  Upblast
Type
Upblast Exhausters

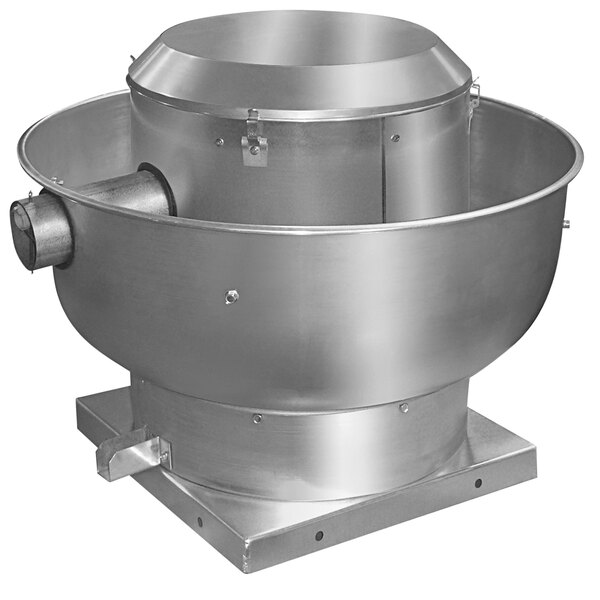

Canarm ALX120-UD050EC Details

Enhance air quality in your warehouse, kitchen, or commercial facility with this Canarm 16 1/2" variable speed upblast direct drive aluminum exhauster ALX165-UD050EC! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, this motor has up to 82" efficiency to reach your ideal speed every time.

For energy-efficient use, this motor provides 70% energy savings compared to traditional motors. The speed is easily adjustable using the on-board variable speed controls, or it can also be controlled remotely with a 0-10V potentiometer (sold separately). When used with the potentiometer, the exhauster is able to be controlled up to 50' away, providing you with convenient access even when you are not near the unit.

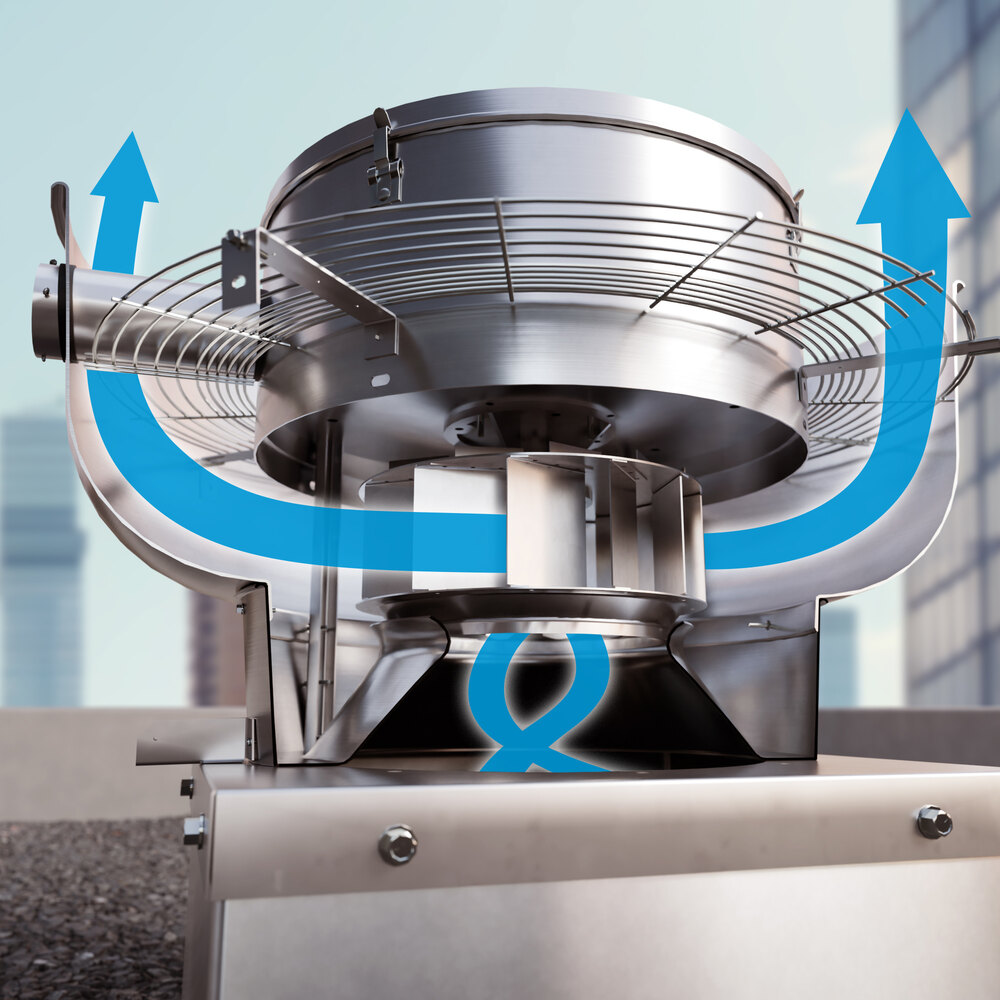

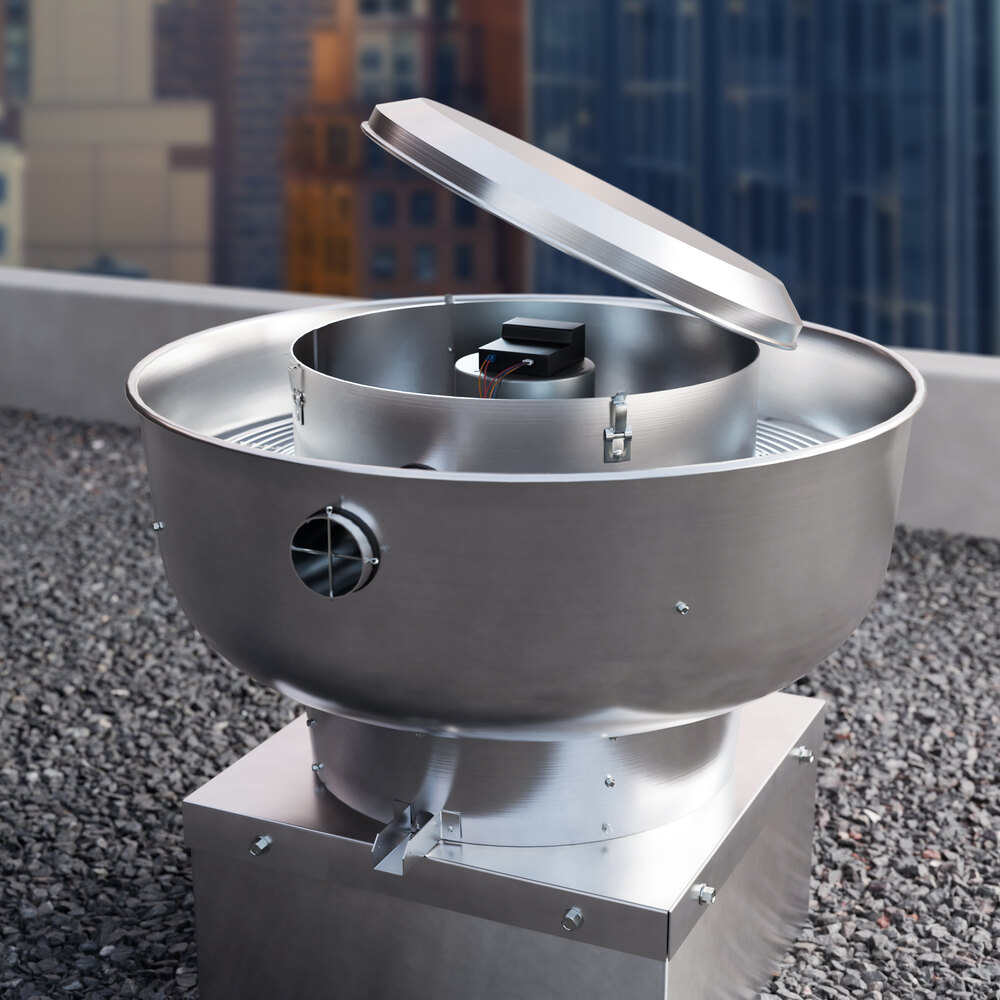

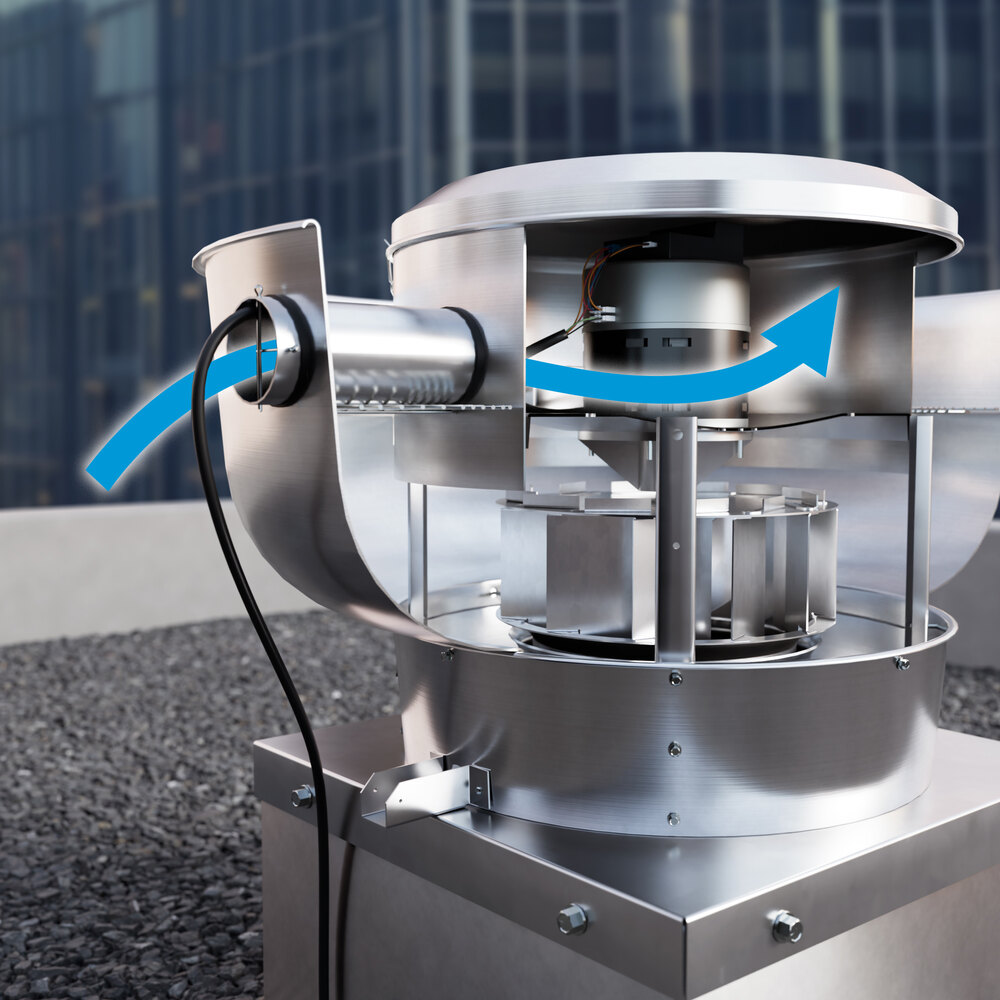

This rugged unit mounts directly to the wall or it can be installed on your roof top. For roof top applications, a 20 3/4" opening is required. This fan includes a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use. This unit boasts a 1/2 hp motor that delivers 1155 CFM to 2595 CFM. The 16 1/2" aluminum wheel is inclined backwards to efficiently exhaust air, and it is non-overloading to provide consistent, safe use. To easily access the motor, quick release latches are included.

This unit requires a 120/240V electrical connection for operation. It must be hardwired, a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 37 1/2"
Depth: 24 3/4"
Height: 27 1/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Can I control the speed of the fan motor?

This fan has variable speed capabilities. Models using EC motors have “true variable speed” control available using the on-board speed adjustment with LED display, or they can be controlled remotely using a potentiometer (sold separately).

How do I size a fan for my hood?

There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Ask your own question!
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
