Name: Canarm 12 1/4" Variable Speed Upblast Direct Drive Aluminum Exhauster ALX120-UD033EC - 1400 CFM, 1650 RPM, 120/240V, 1 Phase
Brand: Canarm
SKU: 664L120U033E
Price: 699 USD
Availability: LimitedAvailability

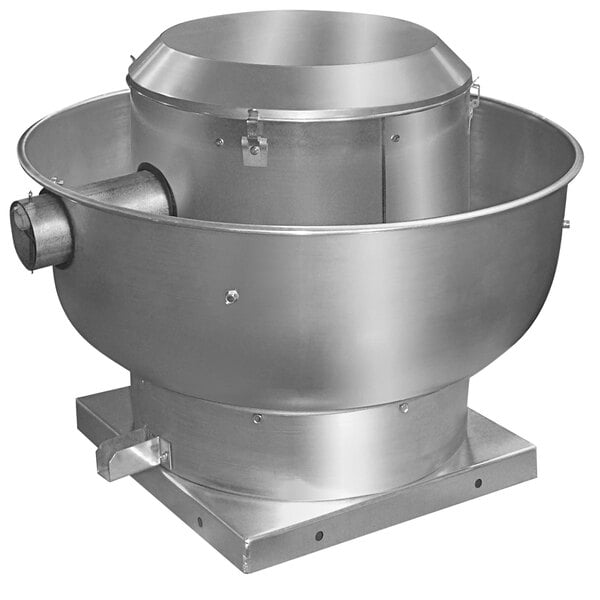

A white and metal Canarm aluminum exhauster with a round lid.

Only

$699.00/Each

Discounted shipping with Plus

Earn up to $20.97 back (2,097 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Versatile variable speed settings with remote-controlled option (sold separately)
Durable spun aluminum construction does not chip, rust, or peel

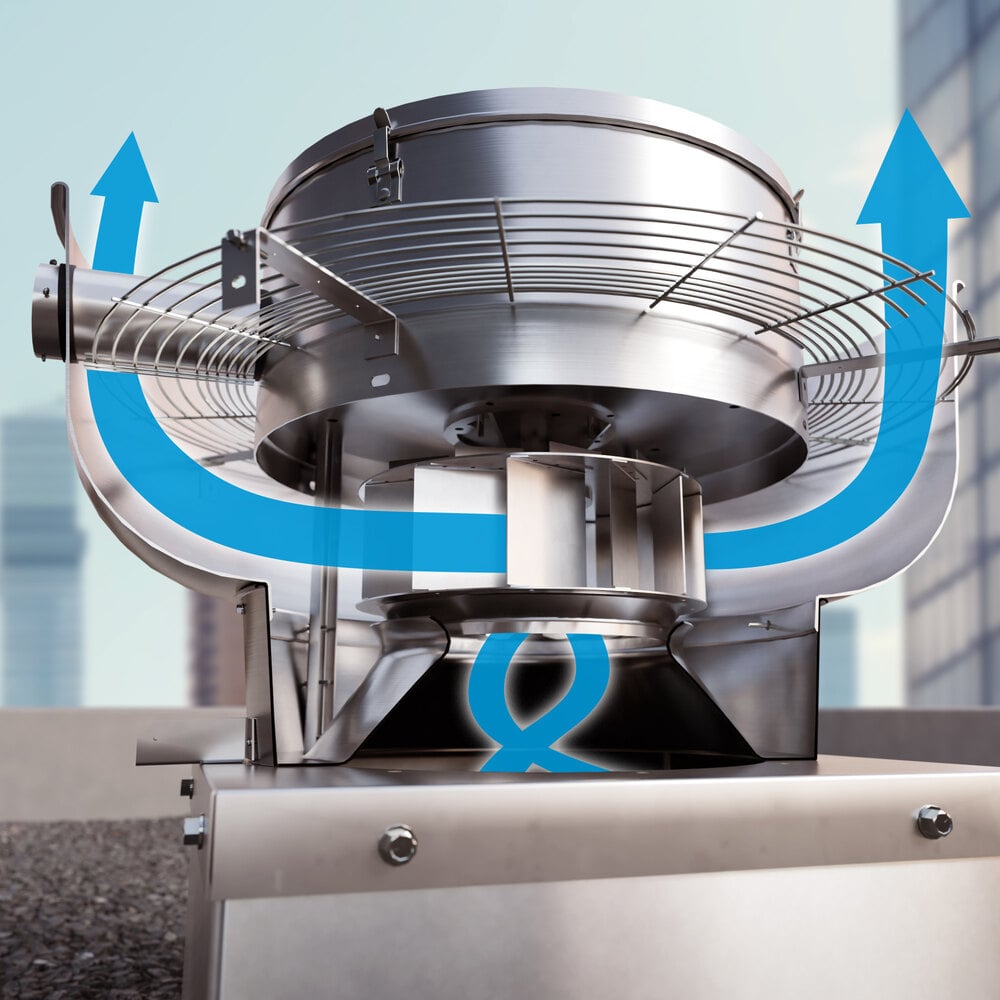

12 1/4" non-overloading wheel provides efficient airflow

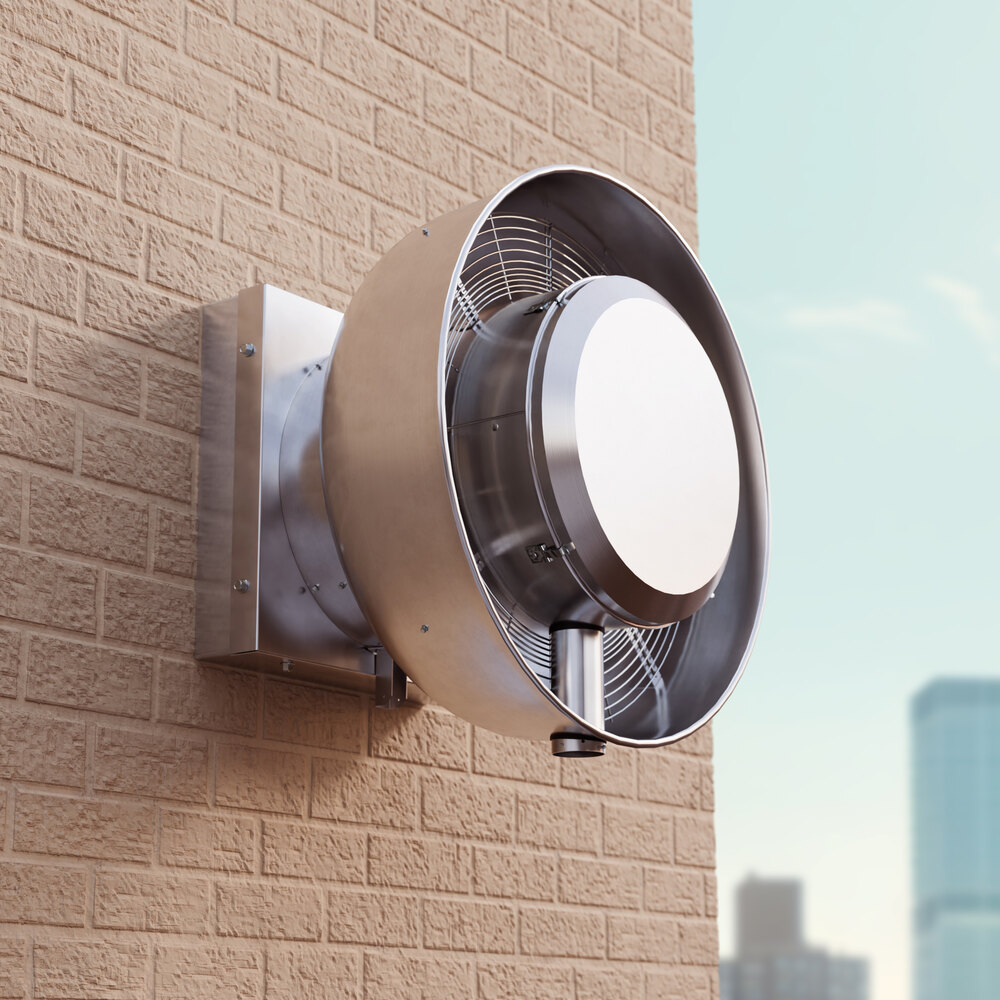

Can be wall-mounted or installed on your roof top
Energy-saving, 1/3 hp motor produces up to 1400 CFM; 120/240V, 1 phase

UPC Code:623454122076

View all Canarm Kitchen Hood Exhaust Fans & Intake Fans

Quantity: 1/Each
Shipping Weight: 35 lb.
Width: 25 Inches
Depth: 19 Inches
Height: 19 Inches
Wheel Diameter: 12 1/4 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 120/240 Volts
Color: Silver
Curb Size: 19 Inches
Drive Type: Direct Drive
Horsepower: 1/3 HP
Installation Type: Roof Top Mounted Wall Mounted
Material: Aluminum
Max CFM: 1,400 CFM
Min CFM: 977 CFM
Motor Type: Direct Drive
Plug Type: Hardwire
RPM: 1,650 RPM
Speeds: Variable
Style: Fixed Upblast
Type: Upblast Exhausters

Canarm ALX120-UD033EC Details

Enhance air quality in your warehouse, kitchen, or commercial facility with this Canarm 13 1/2" variable speed downblast direct drive aluminum exhauster ALX135-DD050EC! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, this motor has up to 82% efficiency to reach your ideal speed every time.

For energy-efficient use, this motor provides 70% energy savings compared to traditional motors. The speed is easily adjustable using the on-board variable speed controls, or it can also be controlled remotely with a 0-10V potentiometer (sold separately). When used with the potentiometer, the exhauster is able to be controlled up to 50' away, providing you with convenient access even when you are not near the unit.

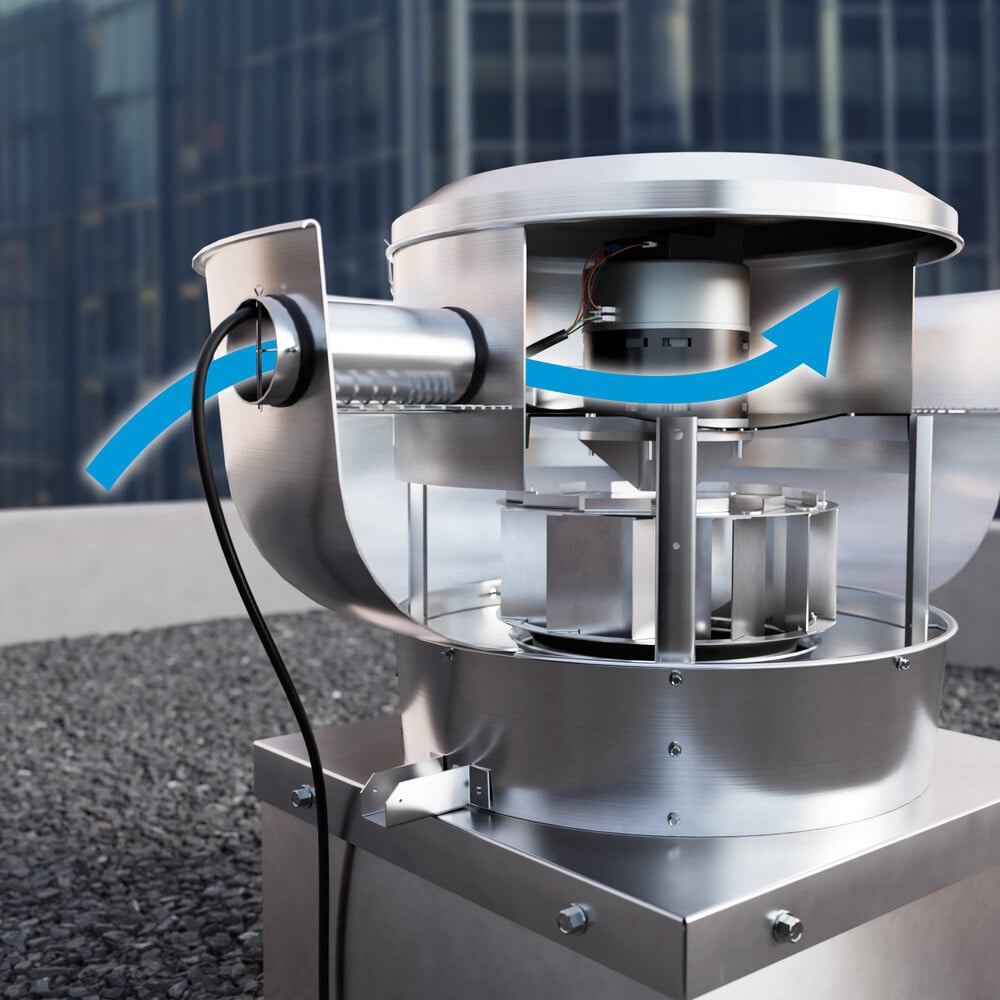

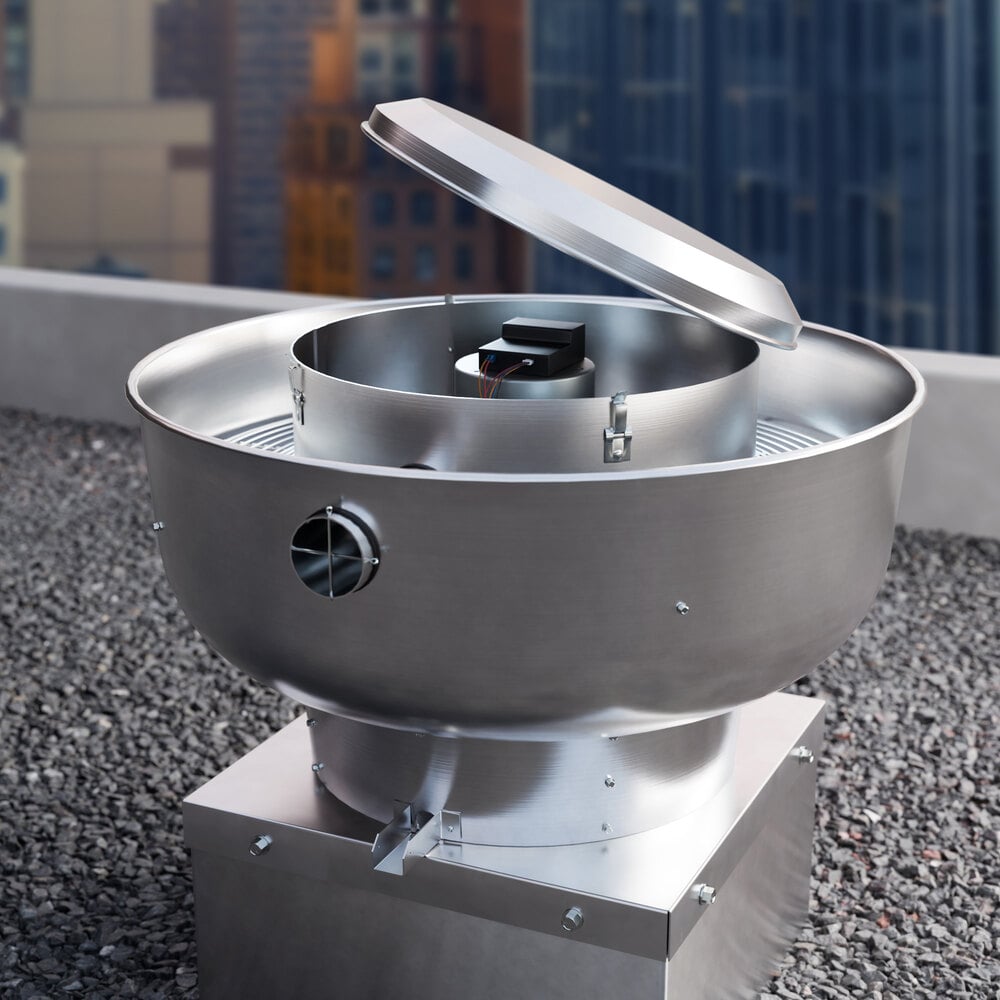

This rugged unit mounts directly to the wall or it can be installed on your roof top. For roof top applications, a 17" opening is required. This fan includes a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use. This unit boasts a 1/2 hp motor that delivers 865 CFM to 1843 CFM. The 13 1/2" aluminum wheel is inclined backwards to efficiently exhaust air, and it is non-overloading to provide consistent, safe use. To easily access the motor, quick release latches are included.

This unit requires a 120/240V electrical connection for operation. It must be hardwired, a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 31 1/4"
Depth: 21"
Height: 22 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I control the speed of the fan motor?

This fan has variable speed capabilities. Models using EC motors have “true variable speed” control available using the on-board speed adjustment with LED display, or they can be controlled remotely using a potentiometer (sold separately).

How do I size a fan for my hood?

There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.

Ask your own question!

ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
