Item number 664l120u033vMFR number ALX120-UD033V
Earn up to $14.35 back (1,435 points)
(1,435 points) with a Webstaurant Rewards Visa® Credit Card
Usually ships in 1 business day
UPC Code:alx120-ud033v
This versatile upblast unit works to exhaust air and provide ventilation in your establishment. It requires a 120/240V, 1 phase electrical connection for operation and must be hardwired; the cord and plug are not included. This unit is intended for use in accordance with NFPA 96 guidelines. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
This product has been certified by ETL, a division of the Intertek Group.

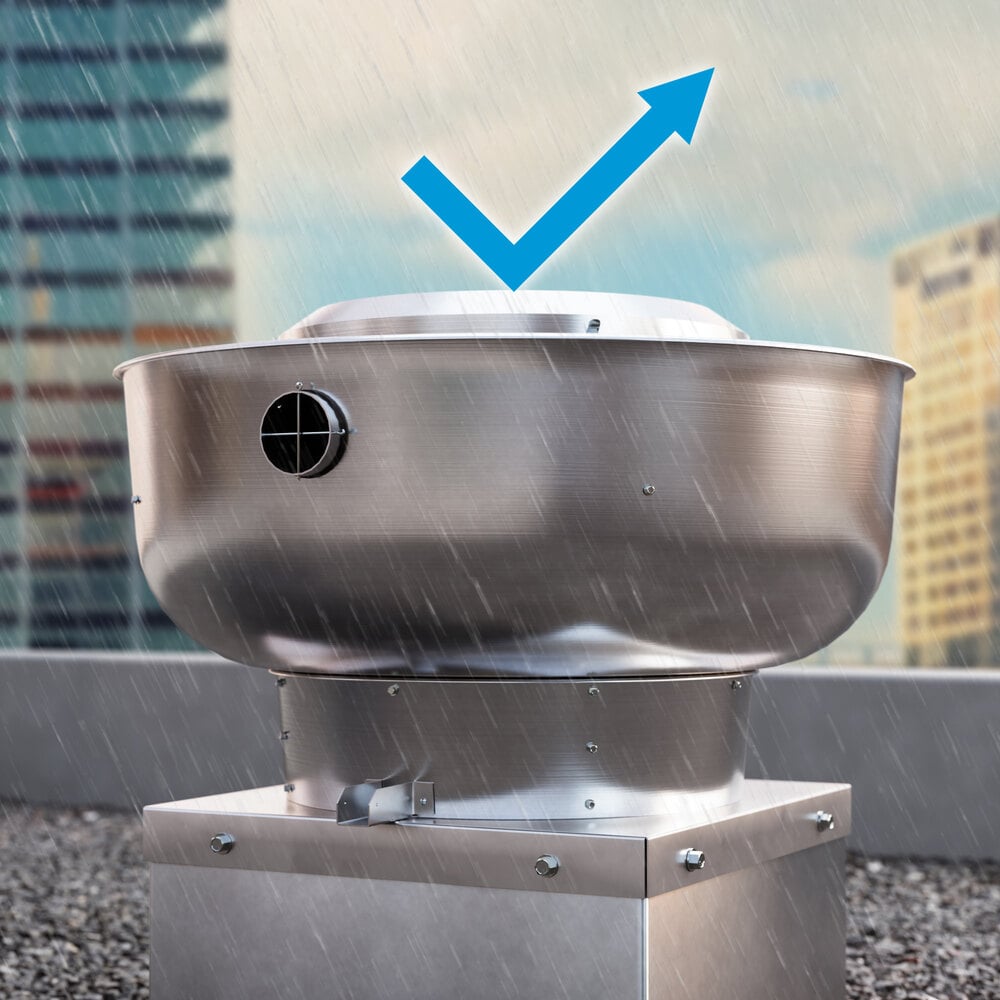

It includes a durable spun aluminum construction that does not chip, rust, or peel for long-lasting use in industrial settings, commercial kitchen ventilation, or other foodservice environments.
For fast, tool-free access to the motor and other internal components on this exhaust fan, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance.

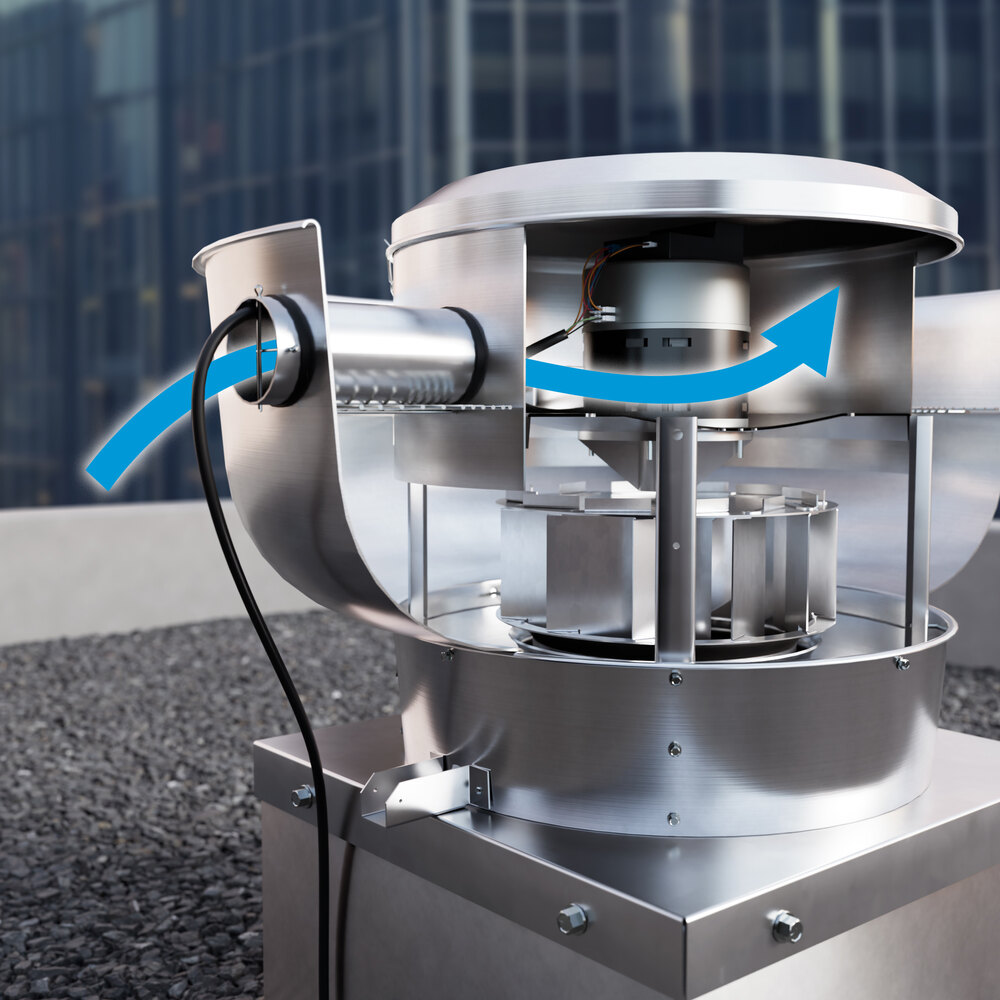

To ensure electrical components remain outside of this unit's airstream, it has a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire.

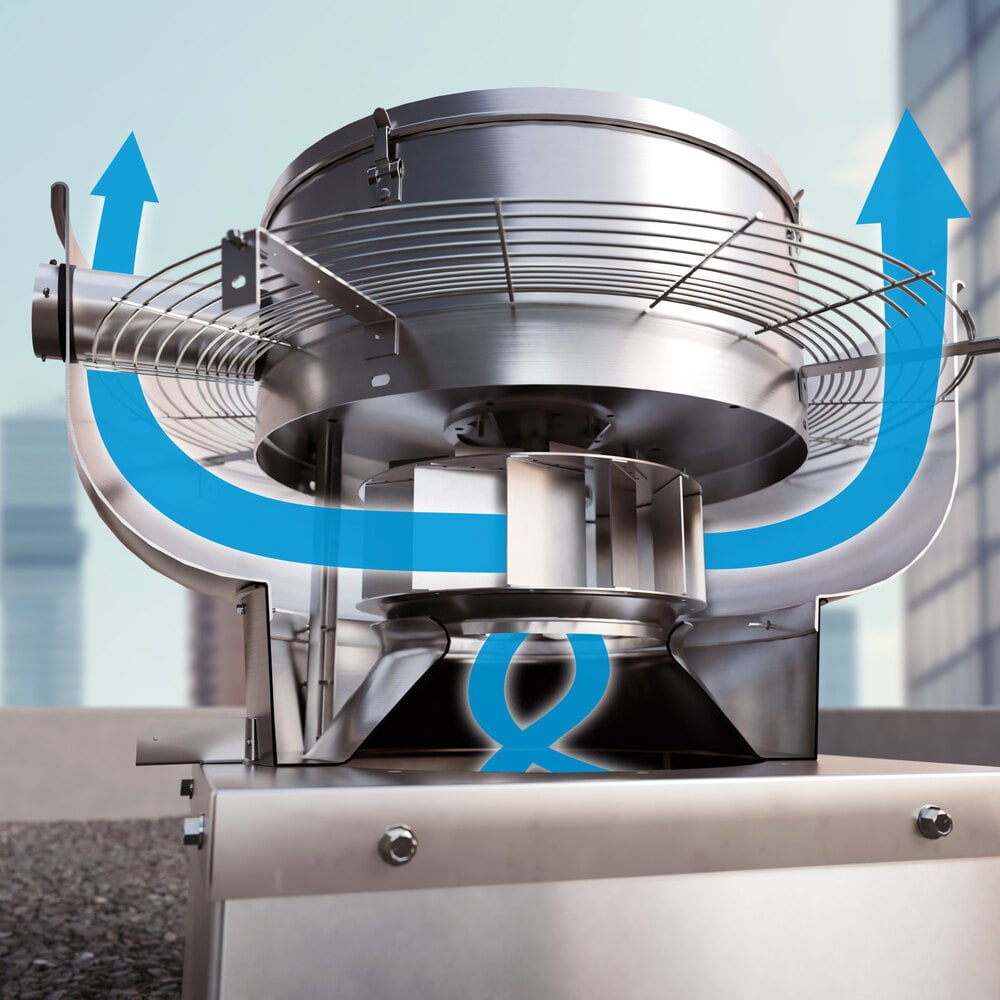

Great for use in establishments producing grease-laden vapors or any application that requires reliable and efficient airflow, the 12 1/4" aluminum wheel is inclined backwards to exhaust air efficiently, and it's non-overloading to provide consistent and safe use. It boasts a 1/3 hp motor that delivers 451 CFM to 1,400 CFM with a maximum RPM of 1,650.
This rugged exhaust fan mounts directly to the wall, or it can be installed on your rooftop. For rooftop applications, a 15" opening is required.
Essential to grease-laden air removal, this unit comes with an integrated grease drain that works to direct grease away from the fan base.
The variable speed motor can easily be adjusted by using a remote 0-10V potentiometer (sold separately). The exhaust fan can be controlled up to 50' away when used with a remote potentiometer, providing you with convenient access even when you are not near the unit.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:Show replacement parts and accessories for Canarm ALX120-UD033V today!
Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Came misshapen, without proper wiring diagram.
1 out of 1 found this review helpful
Thank you for your review, Tory! We would like to gather more information about your experience with this exhauster. A Customer Solutions Representative will contact you soon.
Year running and still working
Shipping was a little wonky - perhaps adding some extra filler? I’d pay the extra $5-$8 for the extra protection. Wiring diagram on the inside of the motor compartment could be a little misleading if you aren’t familiar with wiring diagrams. I recommend taking a photo of the diagram on the motor and zooming in for proper wiring… Overall happy with purchase (and that it is a downfiring rigid mount motor that “could” potentially be used for another setup - brilliant in my mind :)
