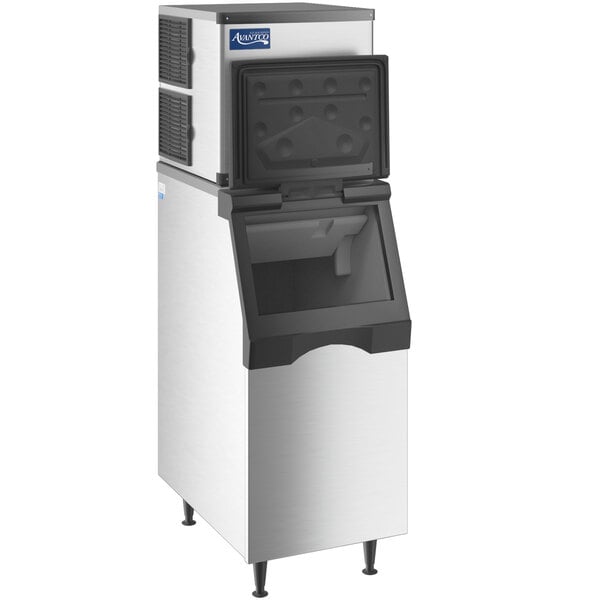

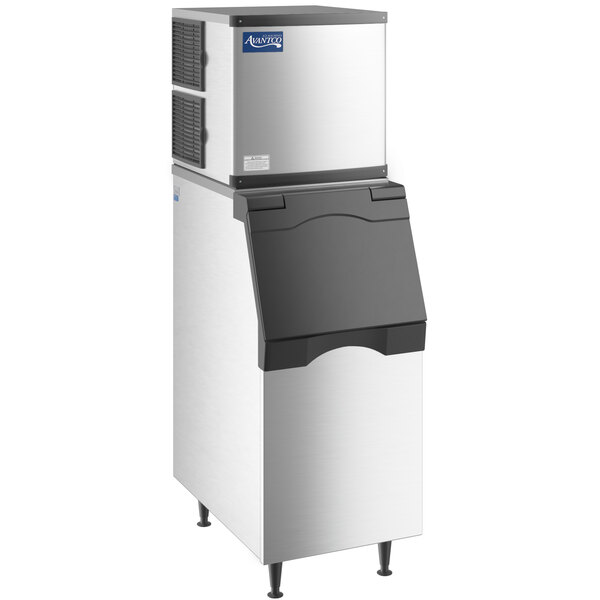

Name: Avantco Ice KMC-H-322-LA 22" Air Cooled Modular Half Cube Ice Machine with 383 lb. Bin - 350 lb.
Brand: Avantco Ice Machines
SKU: 194KMCH322LA
Price: 3016.45 USD
Availability: InStock

0:00 / 0:00

Regularly

$3,016.45/Each

Plus Member Price

$2,816.45/Each

Ships free with Plus

Earn up to $90.49 back (9,049 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

Makes up to 350 lb. of half cube ice per day; Ice storage bin capacity 383 lb.
Durable metallic alloy exterior with a polyethylene interior
Digital controller allows user to quickly identify issues and the current stage of production
Removable air filter for quick cleaning and maintenance
R290 refrigerant; 115V

UPC Code:400015401401

View all Avantco Ice Machines Air Cooled Ice Machines

Make sure you've always got plenty of fresh ice on hand with the Avantco KMC-H-322-LA 22" air cooled modular half cube ice machine with bin!

Capable of producing up to 350 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand. At only 22" in width, this narrow unit is great for tight bars, kitchens, and coffee shops. An included ice bin holds up to an impressive 383 lb. of ice, making it ideal for busy establishments that can not afford long periods of downtime while ice is being made.

5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.

Intuitive Diagnostics and Controls

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Stainless Steel Construction

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. It is also non-corrosive, making it ideal for settings that are high in moisture and humidity.

Enhanced Bin

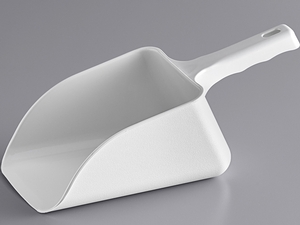

This bin's sturdy polyethylene interior stands up to heavy use, and features bright LEDs to illuminate the ice. An ice scoop and scoop holder ledge is included with this unit.

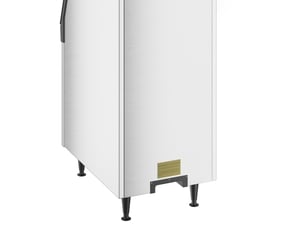

Adjustable Legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

OceanLoch Mounting Holes

Pre-drilled holes are on the back of the unit to mount your OceanLoch water filter to ensure you are serving the cleanest ice possible.

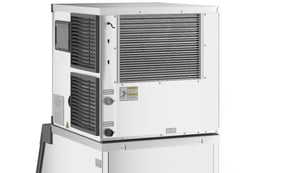

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Customer Q&AAsk a Question

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

Does the height of this item include the feet?

The height listed on this product includes the adjustable feet set to their lowest setting.

Does this Avantco ice machine have backflow prevention?

Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

What type of environment is best suited for this Avantco Ice Machine?

It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Will this Avantco Ice machine fit on other brands of ice bins and dispensers?

We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.

Compare to Other Products

Item #: 194kmch322laAvantco Ice KMC-H-322-LA 22" Air Cooled Modular Half Cube Ice Machine with 383 lb. Bin - 350 lb.
Free Shipping
Price:$3,016.45/Each

115 Volts

350 Pounds

383 lb.

Air Cooled

Item #: 194kmch322baAvantco Ice KMC-H-322-A 22" Air Cooled Modular Half Cube Ice Machine with 275 lb. Bin - 350 lb.
Free Shipping
Price:$2,776.45/Each

22 Inches

32 11/16 Inches

115 Volts

350 Pounds

275 lb.

Air Cooled

Item #: 194kmc350b2fAvantco Ice KMC-350-B2F 22" Air Cooled Modular Full Cube Ice Machine with Bin - 344 lb.
Free Shipping
Price:$3,099.00/Each

22 Inches

32 11/16 Inches

115 Volts

344 Pounds

275 lb.

Air Cooled

Item #: 194kmc350b2hAvantco Ice KMC-350-B2H 22" Air Cooled Modular Half Cube Ice Machine with Bin - 350 lb.
Free Shipping
Price:$3,099.00/Each

22 Inches

32 11/16 Inches

115 Volts

350 Pounds

275 lb.

Air Cooled

Item #: 194kmc420b2hAvantco Ice KMC-420-B2H 22" Air Cooled Modular Half Cube Ice Machine with Bin - 420 lb.
Free Shipping
Price:$3,199.00/Each

22 Inches

32 11/16 Inches

115 Volts

420 Pounds

275 lb.

Air Cooled

Item #: 194kmc500b3fAvantco Ice KMC-500-B3F 30" Air Cooled Modular Full Cube Ice Machine with Bin - 497 lb.
Free Shipping
Price:$3,549.00/Each

30 Inches

32 11/16 Inches

115 Volts

497 Pounds

375 lb.

Air Cooled

Overall Dimensions:

Overall Width:: 22 Inches
Overall Depth:: 34 Inches
Overall Height:: 66 3/8 Inches
