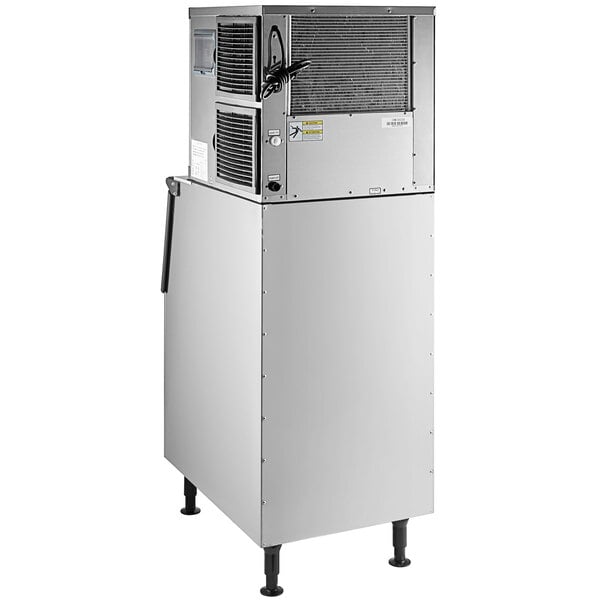

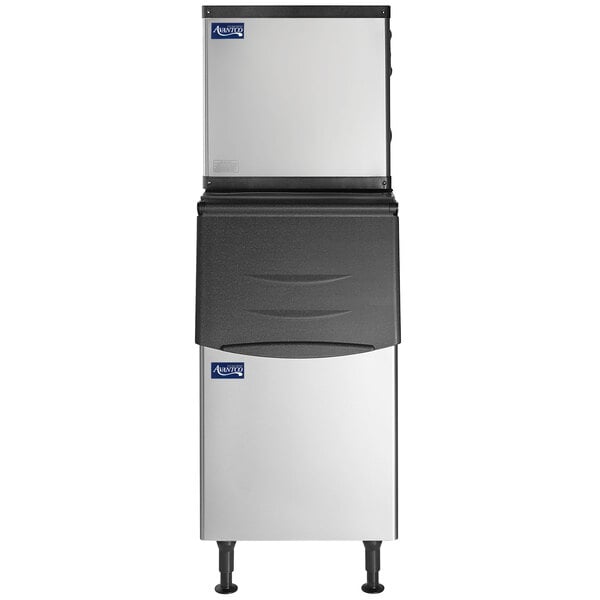

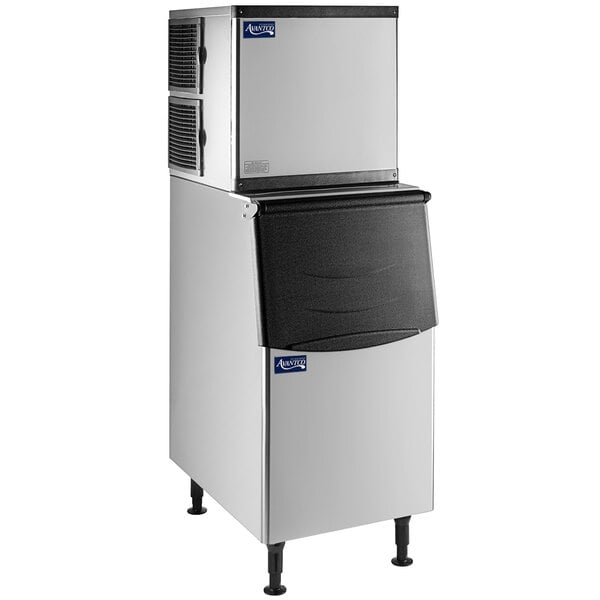

Avantco Ice KMC-H-422-A 22" Air-Cooled Modular Half Cube Ice Machine with 275 lb. Storage Bin - 420 lb., 115V

Item number  194kmch422ba

Ships free withLearn More
Free Shipping
Regularly

$2,469.00/Each

$2,219.00/Each

Accessories & Options

What We Offer

Protect Your Product

Coverage starting at $246.99

Add to Wish List

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Makes up to 420 lb. of half cube ice per day and stores up to 275 lb.
  • Durable 304 stainless steel exteriors with polyethylene interiors
  • Digital controller allows user to quickly identify issues

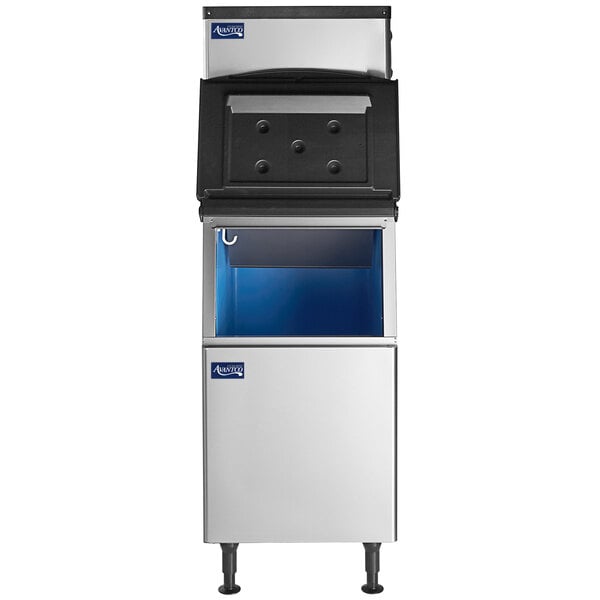

  • Bright LED lights illuminate the ice bin
  • Kit includes ice machine, ice bin, and sanitary ice scoop

UPC Code:400013672094

View All Products From Avantco Ice MachinesView all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice 22" air-cooled modular half cube ice machine with bin!

Capable of producing up to 420 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand. Not only that, with an included ice bin that holds an impressive 275 lb. of ice, this ice machine and bin duo are perfect for preventing periods of downtime while ice is being made. This kit also comes with an ice scoop for a complete set. This unit uses R290 refrigerant and requires a 115V electrical connection for operation.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Listed

    ETL Listed

    This product has been certified by ETL, a division of the Intertek Group.

OceanLoch+ Mounting

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

Adjustable Legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

Intuitive Diagnostics

For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel-plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

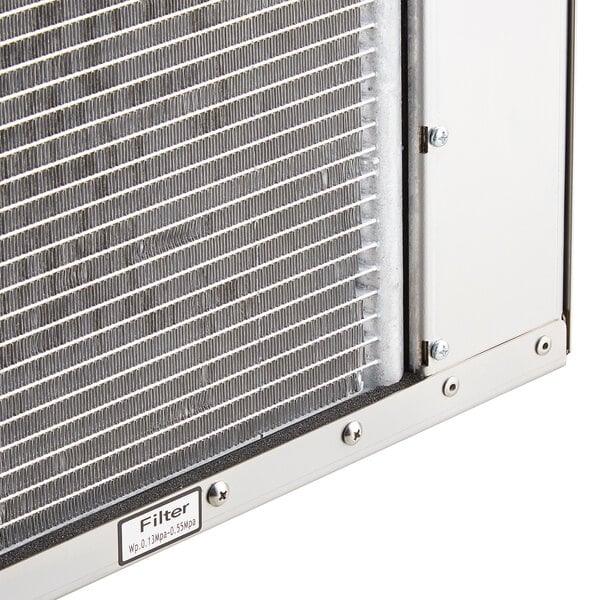

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

Ice Monitoring

This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
The height listed on this product includes the adjustable feet set to their lowest setting.
Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.
Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.
We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.
Overall Dimensions:
Width:
22 Inches
Depth:
32 11/16 Inches
Height:
67 11/16 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Find Parts for this Item

Resources and Downloads

Avantco Ice Machines 194KMCH422BA Specsheet

Specsheet

Opens in new tabModular Ice Machine User’s Manual

Manual

Opens in new tabAvantco Ice - 1 year Limited Parts & Labor Warranty

Warranty

Opens in new tabModular Ice Machines Parts Manual

Parts Manual

Opens in new tabAvantco Ice Machine Compatibility Chart

Compatibility

Opens in new tabModular Ice Machines Buying Guide

Buying Guide

Opens in new tab

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

Specs

Quantity
1/Each
Shipping Weight
220 lb.
Width
22 Inches
Depth
32 11/16 Inches
Height
67 11/16 Inches
Bin Width
22 Inches
Bin Depth
32 11/16 Inches
Bin Height
45 5/16 Inches
Amps
9.4 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
420 Pounds
Ambient Temperature Range
40 - 90 Degrees F
Average Running Decibels
64.67 dB
Bin Storage Capacity
275 lb.
Color
Silver
Condenser Type
Air-Cooled
Features
Storage Bin
Ice Type
Half Size Cubes
Installation Type
Modular
Material
Stainless Steel
Max Decibels
74 dB
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Type
Ice Machines Ice Machines with Bins
Water Inlet Size
3/4 Inches
Water Pressure Range
18 3/4 - 80 PSI
Water Temperature Range
40 - 90 Degrees F
