Name: Avantco Ice KMC-F-422-A 22" Air Cooled Modular Full Cube Ice Machine with 275 lb. Bin - 399 lb.
Brand: Avantco Ice Machines
SKU: 194KMCF422BA
Availability: InStock
Rating: 3.0 (2 reviews)

194kmcf422ba

0:00 / 0:00

Regularly

$2,998.00/Each

Plus Member Price

$2,798.00/Each

Ships free with

Earn up to $89.94 back (8,994 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

Makes up to 399 lb. of full cube ice per day
Durable 304 stainless steel exteriors with polyethylene interiors
Digital controller allows user to quickly identify issues

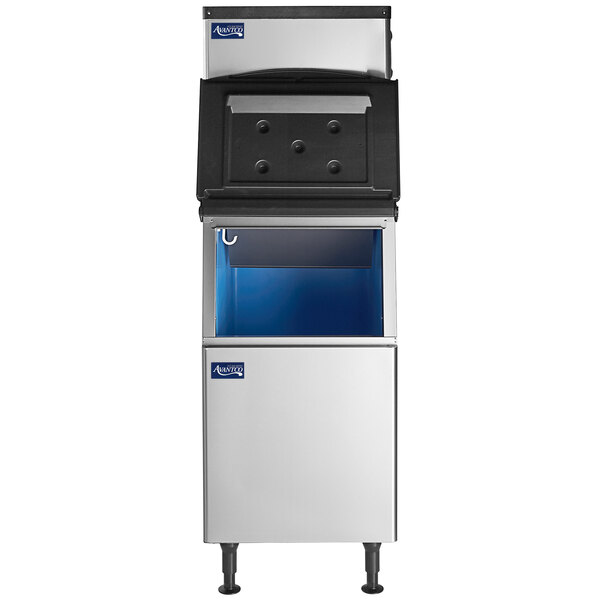

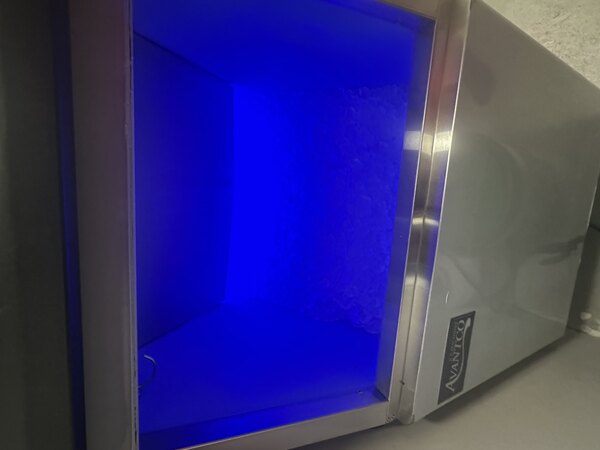

Bright LED lights illuminate the ice bin
Kit includes ice machine, ice bin, and sanitary ice scoop

UPC Code:400015279741

View all Avantco Ice Machines Air Cooled Ice Machines

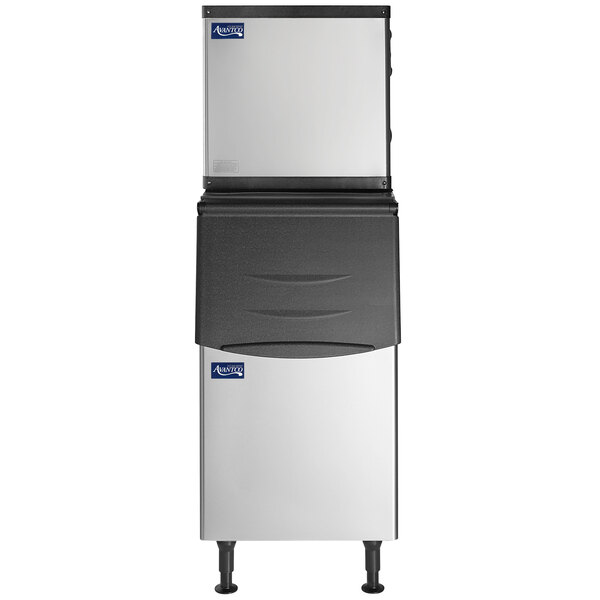

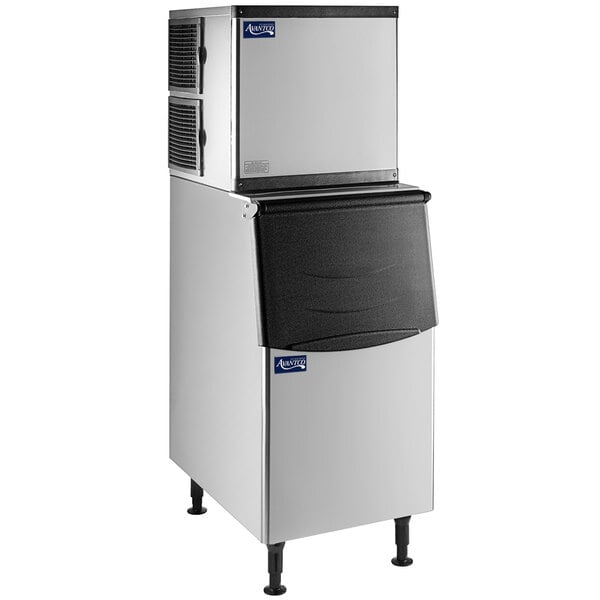

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice KMC-F-422-A 22" air cooled modular full cube ice machine with bin!

Capable of producing up to 399 lb. of full cube ice per day, you'll always have plenty of ice to serve on demand. Not only that, with an included ice bin that holds an impressive 275 lb. of ice, this ice machine and bin duo are perfect for preventing periods of downtime while ice is being made. This kit also comes with an ice scoop for a complete set. This unit requires a 115V electrical connection for operation.

5-15P
This unit comes with a NEMA 5-15P plug.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

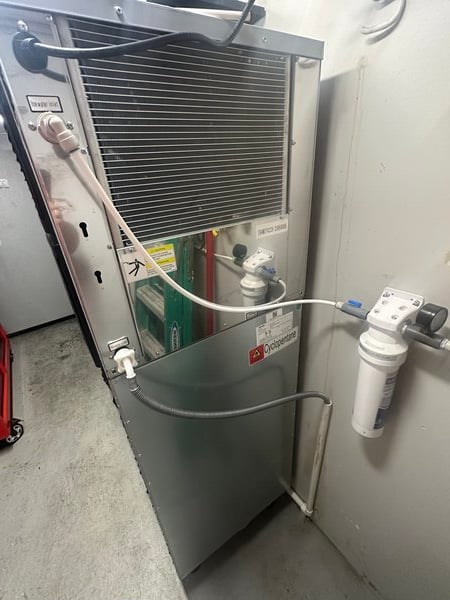

OceanLoch+ Mounting Holes

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

Adjustable legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

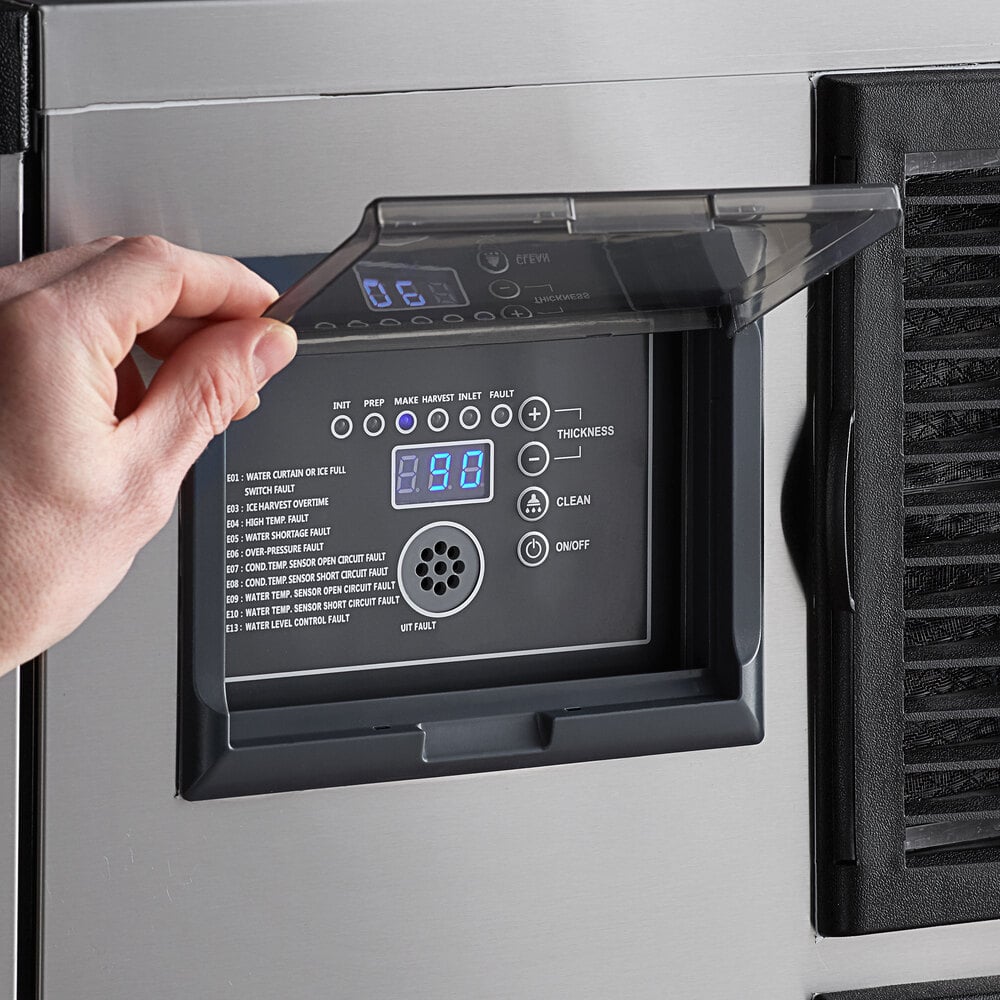

Intuitive Diagnostics

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

Ice Monitoring

This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

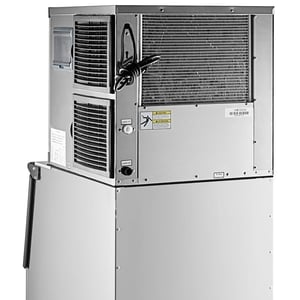

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

Does the height of this item include the feet?

The height listed on this product includes the adjustable feet set to their lowest setting.

Does this Avantco ice machine have backflow prevention?

Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My ice machine has been shut down for awhile, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

What type of environment is best suited for this Avantco Ice Machine?

It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Will this Avantco Ice machine fit on other brands of ice bins and dispensers?

We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.

Overall Dimensions:

Width:: 22 Inches
Depth:: 32 11/16 Inches
Height:: 67 11/16 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

Types of Ice Machines

Quantity: 1/Each
Shipping Weight: 235 lb.
Width: 22 Inches
Depth: 32 11/16 Inches
Height: 67 11/16 Inches
Bin Width: 22 Inches
Bin Depth: 32 11/16 Inches
Bin Height: 45 5/16 Inches
Amps: 9.4 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 115 Volts
24 Hour Ice Yield: 399 Pounds
Ambient Temperature Range: 40 - 90 Degrees F
Average Running Decibels: 63.3 Decibels
Bin Storage Capacity: 275 lb.
BTU Per Hour: 3,207 BTU
Color: Silver
Condenser Type: Air Cooled
Ice Type: Full Size Cubes
Installation Type: Modular
Material: Stainless Steel
Plug Type: NEMA 5-15P
Power Usage: 5.2 kWh per 100 lbs.
Refrigerant Type: R-290
Type: Ice Machines with Bins
Water Inlet Size: 3/4 Inches
Water Pressure Range: 18 3/4 - 80 PSI
Water Temperature Range: 40 - 90 Degrees F
Water Usage: 15 Gallons Per 100 lbs.
