Other Available Sizes:
- Makes up to 399 lb. of full cube ice per day
- Durable 304 stainless steel exterior with polyethylene interior
- Digital controller allows user to quickly identify issues and the current stage of production
- Removable air filter allows for quick cleaning
- R290 refrigerant; 115V; NEMA 5-15P
- Choice 5 Gallon Polypropylene Ice Tote Kit with 12 oz. Scoop, Scoop Holder, Lid, and Mounting Bracket
- Shipping Weight
- 114 lb.
- 22 Inches
- 24 3/8 Inches
- 22 3/8 Inches
- 9.4 Amps
- 60 Hertz
- 1 Phase
- 115 Volts
- 24 Hour Ice Yield
- 399 Pounds
- Ambient Temperature Range
- 40 - 90 Degrees F
- Average Running Decibels
- 63.3 Decibels
- BTU Per Hour
- 3,207 BTU
- Condenser Type
- Air Cooled
- Ice Type
- Full Size Cubes
- Installation Type
- Stainless Steel
- Net Weight
- 115 LBS
- Packaging Dimensions
- 25.8"W x 29.6"D x 24.5"H
- Plug Type
- NEMA 5-15P
- Power kWh/100 lbs. Ice
- 5.2 kWh
- Power Usage
- 5.2 kWh per 100 lbs.
- Refrigerant Type
- Ice Machines
- Water Pressure Range
- 18 3/4 - 80 PSI
- Water Temperature Range
- 40 - 90 Degrees F
- Water Usage
- 15 Gallons per 100 lbs.
Customer questions about this product
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
Does the height of this item include the feet?
The height listed on this product includes the adjustable feet set to their lowest setting.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Why is a water filter automatically added to my cart with this item?
The use of poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality and a compatible water filter will be included when you add this piece of equipment to your cart. You may remove the filter from the cart prior to purchase.
My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
Does this Avantco ice machine have backflow prevention?
Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).

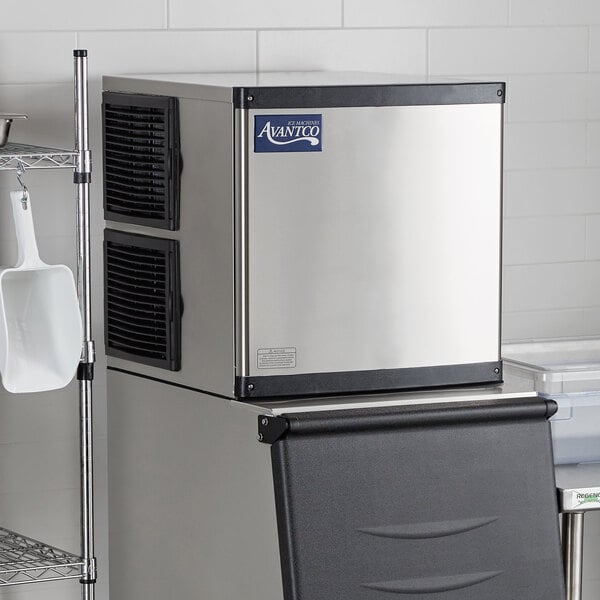

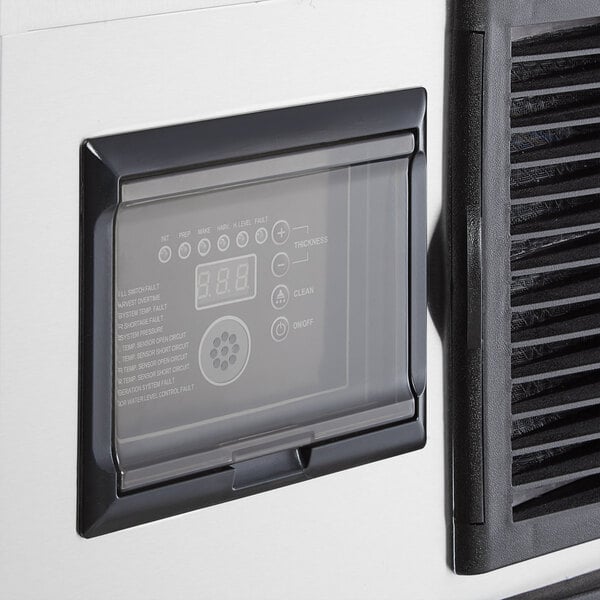

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice MC-F-422-A 22" air cooled modular full cube ice machine! Capable of producing up to 399 lb. of full cube ice per day, you'll always have plenty of ice to serve on demand. At only 22" in width, this narrow unit is great for tight bars, kitchens, and coffee shops. For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

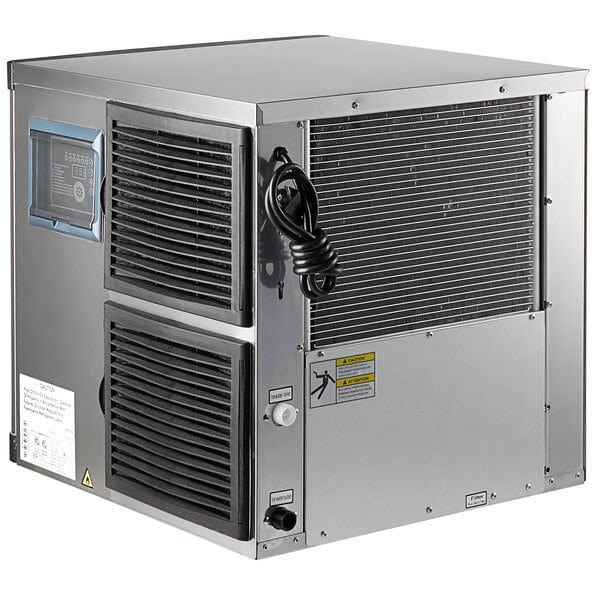

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. A nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance. This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch water filter to the machine to ensure you are serving the cleanest and freshest ice possible. Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. This unit requires a 115V electrical connection for operation.
Depth: 24 3/8"
Height: 22 3/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.
This unit comes with a NEMA 5-15P plug.
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
