Fuel Type: Liquid Propane

Installation Services

Check if installation is currently available for your area.

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 24" deep, 1" thick chrome griddle plate; 4" backsplash
  • (5) 24,000 BTU infrared burners, individually controlled
  • Independent solid state controls; range of 200-550 degrees Fahrenheit
  • 2 high capacity stainless steel grease drawers
  • Liquid propane; 120V, 120,000 BTU
UPC Code:400013253071

Vulcan VCCG60-IR Specs

Quantity
1/Each
Shipping Weight
665 lb.
Width
60 Inches
Depth
33 1/8 Inches
Height
18 13/16 Inches
Cooking Surface Width
60 Inches
Cooking Surface Depth
24 Inches
Phase
1 Phase
Voltage
120 Volts
Backsplash
With Backsplash
Burner BTU
24,000 BTU
Control Type
Thermostatic
Features
Made in America  NSF Listed
Gas Connection Size
3/4 Inches
Number of Burners
5 Burners
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Temperature Range
200 - 550 Degrees F
Total BTU
120,000 BTU
Type
Griddles
Usage
Heavy Duty

Vulcan VCCG60-IR Details

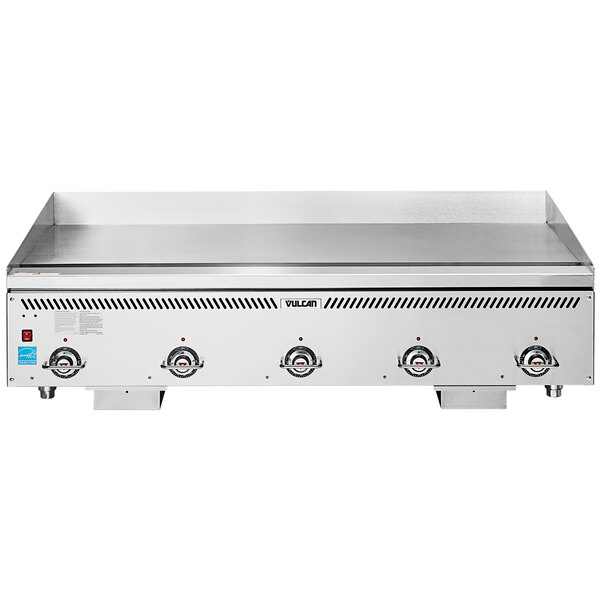

Upgrade your restaurant's grilling capabilities by adding this Vulcan VCCG60-IR liquid propane griddle with infrared burner and a chrome plate to your cooking lineup! Featuring a powerful 24,000 BTU infrared burner for every 12" of griddle plate, this unit offers a total of 120,000 BTU. The 1" thick chrome plated griddle plate is ideal for your high volume business since it recovers quickly and is easier to clean than other types of plates.

Each burner is equipped with its own independent thermostat so that you can ensure the proper temperature in each section of the griddle plate. The infrared design of the burner uses less fuel and utilizes a more efficient radiation style of heating, rather than the standard convection method of atmospheric burners. The solid state controls have a temperature range of 200-550 degrees Fahrenheit, making this unit a great choice for a variety of cooking tasks from melting quesadillas to searing french toast and browning breakfast sausage.

This model has a separate pilot for each pair of burners and a safety feature that shuts off the gas entirely if the pilots go out. Plus, for more efficient operation this model features a dual ignition system for both manual and electric ignition. This griddle has a fully welded stainless steel and aluminized steel chassis frame for longer product life and a "cool bullnose" front ledge design for greater employee safety.

Four 4" adjustable legs keep this unit just above the countertop so that you can easily clean underneath, while a 4" stainless steel backsplash and tapered side splashes protect your walls and surrounding equipment from grease spatter. Plus, each temperature knob includes chrome plated guards to prevent accidental adjustments or knob damage. When you are ready to clean up for the day, it's fast and easy to empty this unit's 2 high capacity 6 qt. grease drawers. A liquid propane connection and a 120V electrical connection are required for operation.

Overall Dimensions:
Width: 60"
Depth: 33 1/8"
Height: 18 13/16"

Cooking Surface Dimensions:
Width: 60"
Depth: 24"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • Made in America

    Made in America

    This item was made in the United States of America.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VCCG60-IR today!

Resources and Downloads for
Vulcan VCCG60-IR

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
