Master-Bilt DD-66 69" Straight Glass Ice Cream Dipping Cabinet

Item number  560dd66MFR number  DD-66

$8,423.05/Each

for details

Accessories & Options

What We Offer

Protect Your Product

Coverage starting at $159.33

Usually Ships in 5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Holds up to (12) 3 gallon ice cream tubs
  • Hinged acrylic dipping compartment lid with full length handle
  • Rear air intake & discharge allows for full front of cabinet graphics
  • Perfect for ice cream shops, diners, and restaurants
  • 115V

UPC Code:400010488292

Works With

View All Items

Master-Bilt DD-66 Specs

Quantity
1/Each
Shipping Weight
545 lb.
Width
69 1/4 Inches
Depth
27 1/2 Inches
Height
50 Inches
Amps
9.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Cabinet Type
Merchandising Open Top
Capacity
16 cu. ft.
Color
White
Compressor Location
Bottom Mounted
Container Display Capacity
12 Cans
Container Storage Capacity
8 Cans
Door Style
Swing
Door Type
Glass
Features
NSF Certified UL Certified
Front Style
Flat
Horsepower
1/2 hp
Number of Doors
2 Doors
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Temperature Range
5 Degrees F
Total Container Capacity
20 Cans
Type
Dipping Cabinets

Master-Bilt DD-66 Details

The Master-Bilt DD-66 ice cream dipping cabinet holds 12 standard 3 gallon ice cream cans for effective merchandising and dipping, with room for 8 more beneath the display racks in storage! Brilliant fluorescent lighting and a tempered glass viewing window ensure that your delicious ice cream looks its best and is highly visible.

This ice cream dipping cabinet features 2 1/4" of foamed-in-place urethane insulation, plus a cold wall evaporator design and a 1/2 hp compressor that maintains internal temperatures between -5 and 5 degrees Fahrenheit. Its stainless steel serving deck, heavy-duty epoxy-coated wire can support racks and an integrated drain with a garden hose connection ensure years of dependable service and easy cleaning.

This ice cream dipping cabinet requires a 115V electrical connection.

Overall Dimensions:
Width: 69 1/4"
Depth: 27 1/2"
Height: 50"
Capacity: 16 cu. ft.

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Certified by NSF

    Certified by NSF

    This item is certified by NSF to applicable standards.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

Need Parts & Accessories?

Show replacement parts and accessories for Master-Bilt DD-66 today!

Find Parts for this Item

Resources and Downloads for Master-Bilt DD-66

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Customer Reviews

Showing 8 of 8 reviews
Review by

Tania S.

Posted on 07/23/2026

Verified Purchase

Rated 2 out of 5 stars
Capacity:
12 Tub
Style:
Straight Glass

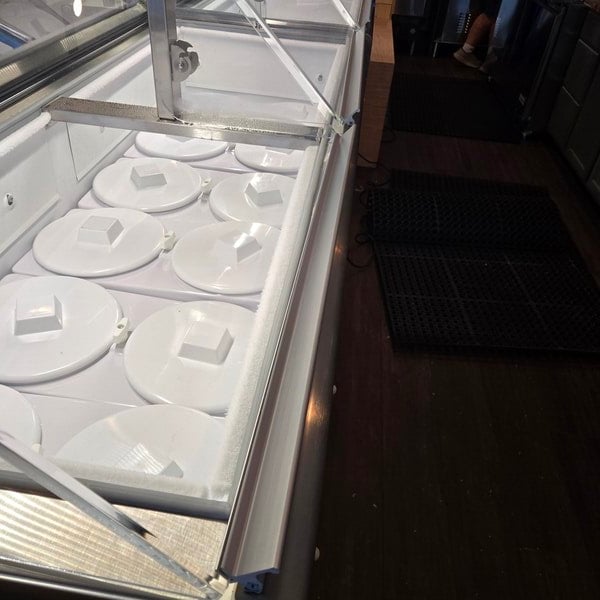

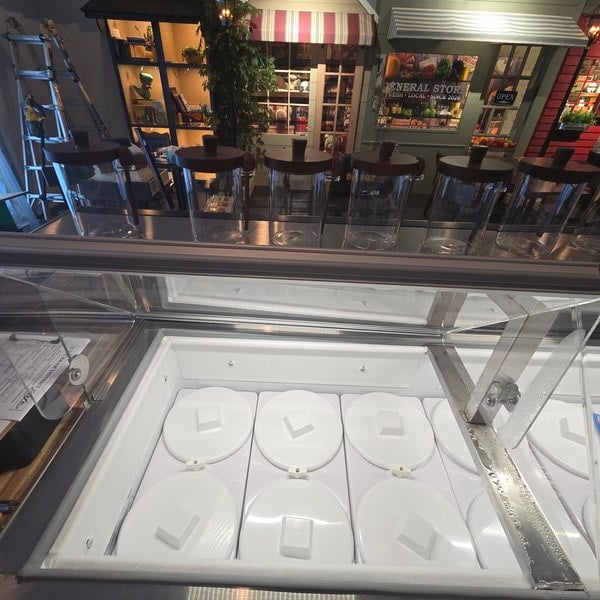

Seems like a well built cabinet, but many issues. First, this longer one has an exposed temperature knob that gets bumped. Not good. Second, the left side door is severely warped, I tried to show it in pics but it's not easy to see. Third, the double covers for the tubs are terrible - you end up scraping ice off the side walls and it ends up in your ice cream. The all-thread is too long for the units that are over the compressor, I had to cut them short to prevent our employees' knuckles from being scratched. Lastly, the ice cream gets soupy up top. We previously had an Avantco 12 tub unit, it was superior (and it coated much less). We thought we'd "upgrade" to Masterbilt but it turned out to be a downgrade. One BIG advantage of the Avantco - the 12 tub unit has a wall in the Read More

Thank you for your review, Tania! We would like to gather more information about your experience with this dipping cabinet. A Customer Solutions Representative will contact you soon.

Review by

Annette N. from Crav'ns

Posted on 08/26/2020

Verified Purchase

Rated 1 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

We purchased this cabinet October 17, 2017, cabinet is very noisy and when it shuts off or turns on, cabinet shakes so much it makes my whole floor shake. I was concerned about this so I contacted Master-bilt directly. Tech support told me the 16 bunker cabinet has a really big compressor so this is normal. Cabinet has been hard to regulate temperature, minor adjustments (quarter turn) causes either too hard to too soft ice cream. Well after 33 months use, our cabinet is no longer working. a few weeks ago we noticed our ice cream was really soft, our temperature dial was all the way up, so on August 4, a local electrician added Freon. This lasted a couple days and temperature began rising again. I called Master-bilt to trouble shoot the issue, having to leave a message (no one has returned Read More

Thank you for your feedback! We’re sorry you did not prefer this product. For recommendations, please contact our Customer Solutions team.

Review by

Changok L.

Posted on 03/02/2020

Verified Purchase

Rated 2 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

We bought an ice cream shop a couple of month ago and bought this ice cream dipping cabinet to replace an old one that was being in use for 30 years or so. We were really excited and so looking forward to this new one. It took some time to plug in and test it out as we were doing a remodel. Unfortunately, we experienced much more disappointments than joy once we set it up and plugged in. 1) The compressor is really, really, really, really noisy. I don't know what to do about that. 2) The dipping cabinet is so deep, it is hard to scoop any ice cream for someone like me who are short, 5'1". The old one we had was just fine for me. This new one however, I will have to get on a stool to scoop. This is really Read More

Thank you for your feedback! We’re sorry you did not prefer this product. For recommendations, please contact our Customer Solutions team.

Review by

Maximilian R. from Rigol Investment Corporation

Posted on 09/19/2018

Verified Purchase

Rated 5 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

This ice cream case is amazing! It is very well built and keeps the ice cream at the perfect temperature for scooping. Not only does it look really nice but it is very functional as well. I am very happy with this purchase and would highly recommend this dipping cabinet.

Review by

Kimberlee M. from KRN Enterprise, LLC

Posted on 07/25/2018

Verified Purchase

Rated 3 out of 5 stars
Capacity:
8 Tub
Style:
Straight Glass

We have had this ice cream dipping cabinet for 8 months and the rubber seals going around the cover has either broken off or is peeling off. The build quality is not that good. Also, this is not a frost free freezer so it needs to be defrosted monthly to keep the ice from building up too much around the sides. The drain at the bottom is small so it clogs very easily, prevent it from completely draining during the defrosting.

Thank you for your review, Kimberlee! We are sorry this Master-Bilt DD-46 48 inch Straight Glass Ice Cream Dipping Cabinet has not worked well for you. A Customer Solutions Representative will contact you soon!

Review by

Mary R.

Posted on 06/14/2018

Verified Purchase

Rated 5 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

The ice cream cabinet is very, very nice. It holds 16 flavors of ice cream and looks very nice in our shop; however it arrived with a dent in the box. Upon opening the box, we found that the end of the cabinet was dented. This was probably done in transit. We were able to pound out the dent to make it look decent. I then contacted webstaurant.com and sent pictures of the damaged box and ice cream dipping cabinet for their review. They were very courteous, and responded quickly to our concerns. They issued a partial credit to us within a week's time for the damage on the cabinet. I am very, very happy with Webstaurant.com, and would definitely order from them. I only wish that we could talk to someone on the phone, but there are no phone numbers and everything has to be handled online.

Review by

Shary T. from The Island Link

Posted on 05/09/2016

Verified Purchase

Rated 5 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

The best freezer we have gotten since opening our ice cream store. It conveniently fits about 24/26 buckets of ice cream. A bit difficult to clean because of its depth.

Review by

Sean F.

Posted on 02/14/2023

Verified Purchase

Rated 4 out of 5 stars
Capacity:
16 Tub
Style:
Straight Glass

Came in missing some pieces, however the manufacturer was very helpful in getting the new parts sent out to us.
