for details

Earn up to $179.01 back (17,901 points)with a Webstaurant Rewards Visa® Credit Card

  • Holds up to (8) 3 gallon ice cream tubs
  • Hinged acrylic dipping compartment lid with full length handle
  • Rear air intake & discharge allows for full front of cabinet graphics
  • Perfect for ice cream shops, diners, and restaurants
  • 115V
Quality Rating:
UPC Code:400010488285
Shipping:Usually Ships in 6-8 Weeks
Master-Bilt DD-46 Specs
Width48 1/4 Inches
Depth27 1/2 Inches
Height50 Inches
Amps7.5 Amps
Hertz60 Hertz
Phase1 Phase
Voltage115 Volts
Cabinet Type Merchandising
Capacity9.6 cu. ft.
Compressor Location Bottom Mounted
Container Display Capacity8 Cans
Container Storage Capacity4 Cans
Door Style Swing
Door Type Glass
Features Made in America

NSF Listed
Front Style Flat
Horsepower1/2 HP
Number of Doors1 Doors
Plug Type NEMA 5-15P
Refrigerant Type R-290
Temperature Range5 Degrees F
Total Container Capacity12 Cans
Type Dipping Cabinets

Master-Bilt DD-46 Details

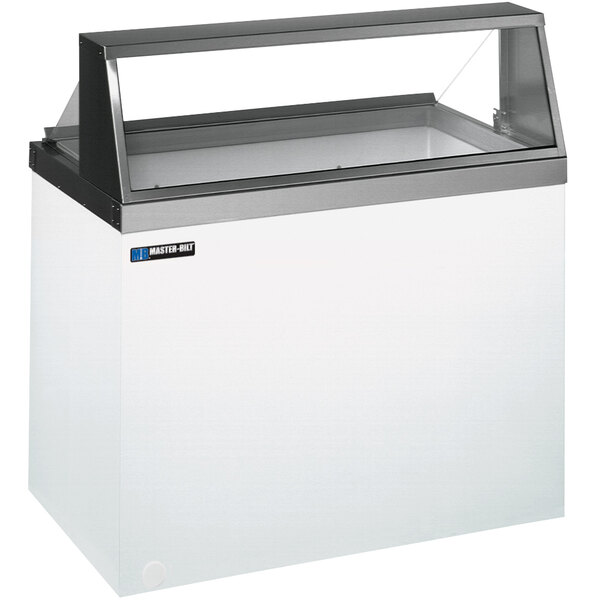

The Master Bilt DD-46 ice cream dipping cabinet holds 8 standard 3 gallon ice cream cans for effective merchandising and dipping, with room for 4 more beneath the display in storage! Brilliant fluorescent lighting and a tempered glass viewing window ensure that your delicious ice cream looks its best and is highly visible.

This ice cream dipping cabinet features 2 1/4" of foamed-in-place urethane insulation, plus a cold wall evaporator design and a 1/2 hp compressor that maintain internal temperatures between -5 and 5 degrees Fahrenheit. Its stainless steel serving deck, heavy duty epoxy-coated wire can support racks and an integrated drain with a garden hose connection ensure years of dependable service and easy cleaning.

This ice cream dipping cabinet requires a 115V electrical connection.

Overall Dimensions
Width: 48 1/4"
Depth: 27 1/2"
Height: 50"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

Resources and Downloads for
Master-Bilt DD-46

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Overall User Rating:

Replace Heading Here

3.0 stars from 1 review


People Talk About:

around ice bottom build building cabinet clogs completely cover cream

Customer Reviews


We have had this ice cream dipping cabinet for 8 months and the rubber seals going around the cover has either broken off or is peeling off. The build quality is not that good. Also, this is not a frost free freezer so it needs to be defrosted monthly to keep the ice from building up too much around the sides. The drain at the bottom is small so it clogs very easily, prevent it from completely draining during the defrosting.

Kimberlee M. from KRN Enterprise, LLC on 07/25/2018

Thank you for your review, Kimberlee! We are sorry this Master-Bilt DD-46 48 inch Straight Glass Ice Cream Dipping Cabinet has not worked well for you. A Customer Solutions Representative will contact you soon!
