Fuel Type: Natural Gas

Installation Services

Check if installation is currently available for your area.

Usually Ships in 3-4 Months from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 63 lb. oil capacity per fryer (189 lb. total)
  • SMART4U 3000 controls offer push button cooking and monitor oil management functions
  • Filtration system uses 15-20% less oil, 33% less energy, and 10-15% less space
  • Exclusive Thermo-tube heat transfer system efficiently transfers energy into the oil
  • Natural gas; 345,000 BTU
UPC Code:400017031897

Frymaster 31814GF 3000 NG Specs

Quantity
1/Each
Shipping Weight
1159 lb.
Width
60 Inches
Depth
33 1/8 Inches
Height
47 3/4 Inches
Fry Pot Width
18 Inches
Fry Pot Depth
14 Inches
Drain Height
11 1/2 Inches
Fry Pot Height
3 3/4 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Burner Style
Tube
Cabinet
Stainless Steel
Capacity
189 lb.
Capacity per Fry Pot
63 lb.
Features
Built-In Filtration System  Energy Star Qualified  Made in America  Programmable Controls
Gas Connection Size
1 Inch
Number of Fry Baskets
3 Fry Baskets
Number of Fry Pots
3 Fry Pots
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Split Pot
Without Split Pot
Total BTU
345,000 BTU
Type
Gas Floor Fryers
Usage
Heavy Duty

Frymaster 31814GF 3000 NG Details

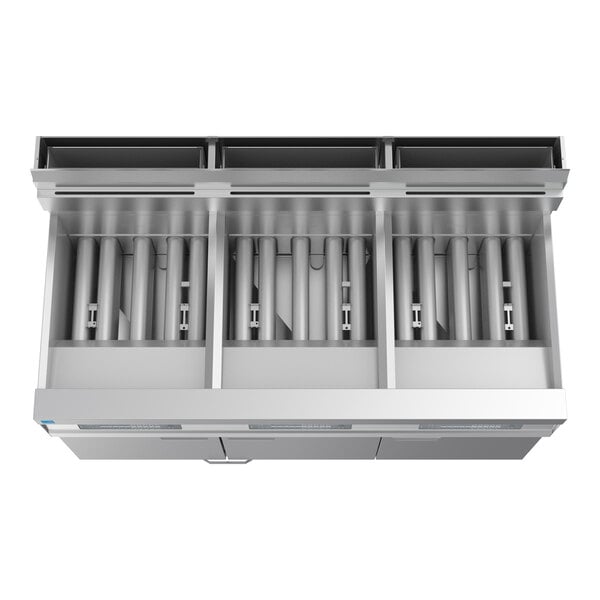

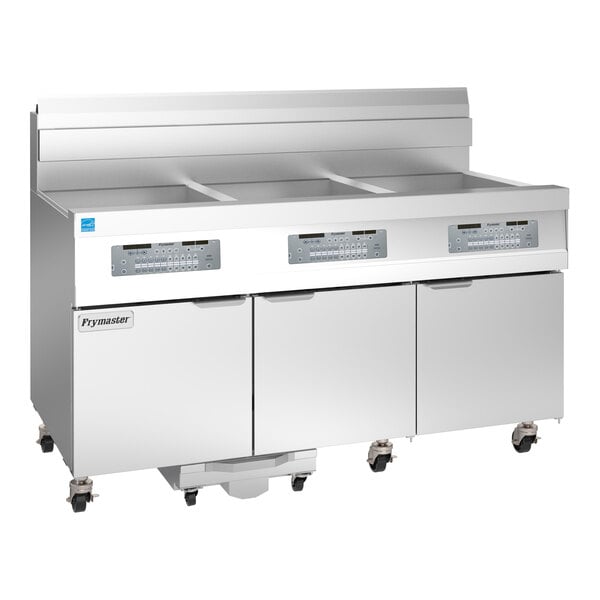

Fry anything from french fries to chicken wings with this Frymaster oil-conserving 3 unit floor fryer with SMART4U 3000 controls! A spacious 63 lb. oil capacity per frypot (189 lb. total) combines with powerful cooking and fast recovery technology to provide you with a unit that keeps pace with customer demands on even the busiest of nights. The SMART4U 3000 controller helps manage and monitor your oil quality, oil life, and general performance of the fryer for the optimal quality of your food.

The fryer's high-output performance is rivaled only by its incredibly efficient engineering! Its exclusive Thermo-Tube heat transfer system efficiently transfers energy into the oil, saving energy and extending oil life. A robust RTD 1 degree compensating temperature probe provides accurate temperature readings to avoid temperature overshoot. Plus, because it detects even the slightest temperature variants, you can be sure that you're always producing the highest quality food, at a consistent rate.

A built-in filtration system further optimizes the quality and life of your oil, keeping it clean and capable of producing flavorful food. And since the filter is contained within the fryer, it eliminates the need for the additional floor and storage space required by portable filtration units! This fryer features stainless steel frypots, doors, sides, and front for impressive durability. A sloping bottom ensures fast draining for easy cleaning, and this unit includes three twin fryer baskets per frypot for added convenience. This fryer boasts 345,000 BTU of cooking power and requires a natural gas connection and a 120V electrical connection for operation.

Overall Dimensions:
Left to Right: 60"
Front to Back: 33 1/8"
Height: 47 3/4"
Frying Area: 18" x 14" x 3 3/4" per frypot
Capacity: 189 lb.

Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1" Gas Connection

    1" Gas Connection

    This unit comes with a 1" gas connection to be installed by a professional.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
