Product Overview

  • Programmable controller with melt cycle, boil out, and cook compensation
  • 63 lb. oil capacity per fryer; 189 lb. total oil capacity
  • Built-in filtration system with 8 gpm pump for longer oil life and better food quality

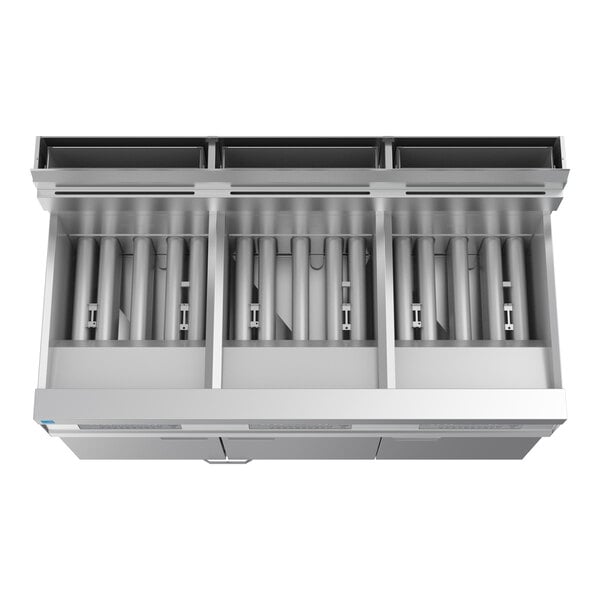

  • Thermo-Tube heat transfer system for efficient oil heating
  • Wide cold zone traps sediment away from cooking area to preserve oil life
  • Durable, corrosion-resistant stainless steel fry pot, door, and cabinet sides
  • Sturdy basket hanger and 3 twin baskets included per fryer
  • 115,000 BTU per fryer; 345,000 BTU total; natural gas
UPC Code:400012687037
Shipping:Usually Ships in 12-15 Weeks
Frymaster 31814GF SMART LANE NAT Specs
Shipping Weight900 lb.
Width60 Inches
Depth33 1/8 Inches
Height47 3/4 Inches
Amps1 - 5 Amps
Hertz60 Hertz
Phase1 Phase
Voltage120 Volts
Burner Style Tube
Cabinet Stainless Steel
Capacity189 lb.
Capacity per Fry Pot63 lb.
Features Built-In Filtration System

Energy Star Qualified

NSF Listed

Programmable Controls
Fry Pot BTU115,000
Gas Inlet Size1 Inches
Number of Fry Baskets3
Number of Fry Pots3
Plug Type NEMA 5-15P
Power Type Natural Gas
Total BTU345,000 BTU
Type Gas Floor Fryers

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?
Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!

Frymaster 31814GF SMART LANE NAT Details

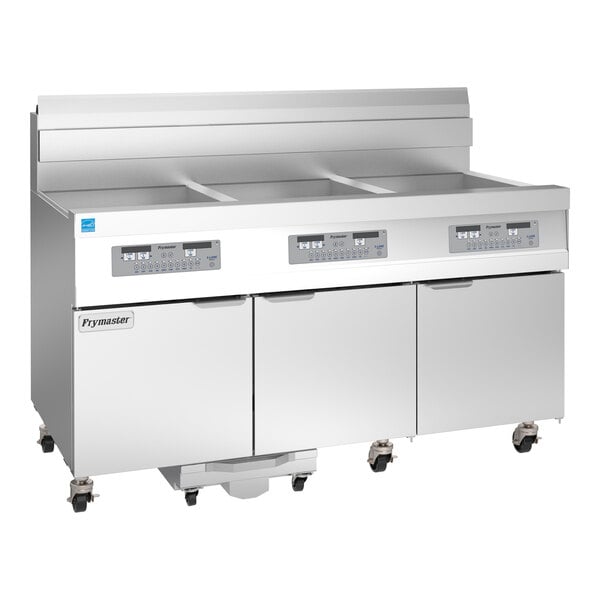

If you are looking for a fryer that can handle your varied menu and high production demands while conserving energy, floor space, and oil, choose this Frymaster 31814GF natural gas oil conserving 189 lb. 3 unit floor fryer system with SMART4U Lane controls and a filtration system. This fryer system contains three fryers with 18" x 14" x 3 3/4" fry pots, each of which can hold 63 lb. of oil.

The fry pots, along with the front door and sides of the cabinet, are made of durable stainless steel for longevity. To help preserve your oil, the fry pots feature wide cold zones to trap sediment away from the cooking area so that it doesn't burn. Each fryer comes with 3 twin fry baskets and sturdy stainless steel basket hangers. Since you can fit three baskets at a time in each of the fry pots, this model allows for oil, footprint, and energy usage reductions when compared with standard 50 lb. fryers!

Since filtering your frying oil can significantly extend the life of the oil to save you money in the long run, this fryer system comes complete with an oil filtration unit. Filtering your oil as needed also ensures that your food is of the highest quality and doesn't have a burnt flavor. The filtration pump has a flow rate of 8 gpm and it is equipped with a 3" drain line for fast, safe, and easy filtering.

The SMART4U Lane controllers feature 10 programmable product buttons and a 40 product library to help you maintain high quality standards. The controls also have temperature check, melt cycle, boil out, cook compensation, and hold timer features. Since you can set different cooking times and recipes for each of the three basket locations, or lanes, you can more easily cook different types of food items at once.

This model requires a natural gas connection and (2) 120V electrical connections for operation.

Overall Dimensions:
Width: 60"
Depth: 33 1/8"
Height: 47 3/4"
Frying Area: 18" x 14"
Capacity: 63 lb. per fryer, 189 lb. total

Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • CSA Design Cert

    CSA Design Cert

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.

  • CSA US

    CSA US

    This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1" Gas Connection

    1" Gas Connection

    This unit comes with a 1" gas connection to be installed by a professional.

  • CSA Blue Flame

    CSA Blue Flame

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
