$7,570.00/Each

Earn up to $227.10 back (22,710 points)with a Webstaurant Rewards Visa® Credit Card

Fuel Type: Natural Gas

Installation Services

Check if installation is currently available for your area.

Usually Ships in 10 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Durable full angle iron frame
  • 5 racks that can hold (5) 18" x 26" baking pans in left to right or front to back positions
  • Dual flow gas system combines direct and indirect heat
  • Interior lights for convenience
  • 14 gauge double-sided porcelainized baking compartment liner for easy clean up
  • Temperature range from 200 - 500 degrees Fahrenheit and solid state manual controls
  • Removable dual tube burners; 1/2 hp blower motor
  • 45,000 BTU; natural gas
UPC Code:400012140495

Blodgett ZEPH200G BASE Specs

Quantity
1/Each
Shipping Weight
585 lb.
Width
38 1/4 Inches
Depth
36 7/8 Inches
Height
32 Inches
Interior Width
29 Inches
Interior Depth
28 1/4 Inches
Interior Height
20 Inches
Amps
6 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
18 x 26 Pan Capacity
5 Pans
Control Type
Dial
Features
Made in America  NSF Listed  Spark / Piezo Ignition
Gas Connection Size
3/4 Inches
Horsepower
1/2 HP
Installation Type
Freestanding
Maximum Temperature
500 Degrees F
Number of Chambers
1 Chamber
Number of Decks
Single
Number of Doors
2 Doors
Number of Racks
5 Racks
Oven Interior Style
Deep Depth
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Size
Full Size
Temperature Range
200 - 500 Degrees F
Total BTU
45,000 BTU

Blodgett ZEPH200G BASE Details

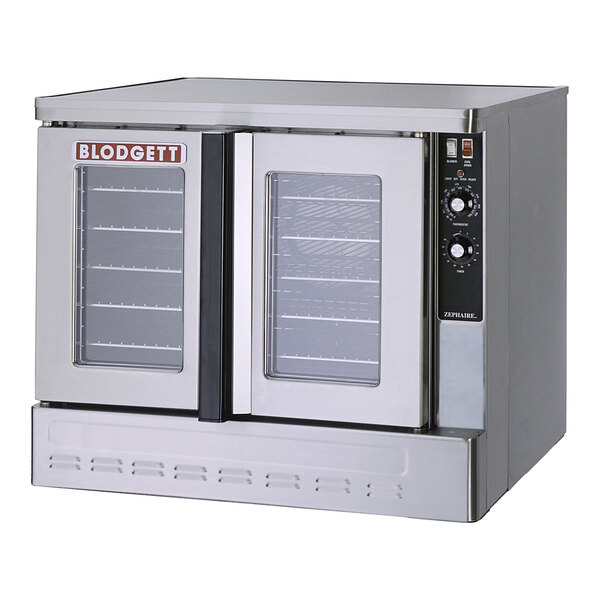

Cooking your bakery's famous streusels, muffins, donuts, and bread will never be easier than with this Blodgett ZEPHAIRE-200-G-NAT natural gas replacement base model bakery depth convection oven! As a base model, this item includes only the oven without any legs or venting connections to offer you the more economical choice of purchasing a single new oven to replace a broken unit in your existing double stacked configuration. Boasting a sturdy iron frame with a stainless steel top, this oven is sure to bring stability and functionality to your kitchen. It features solid state manual controls with an electro-mechanical 60 minute timer for easy adjustment and monitoring of popular food items and also includes a draft diverter at no additional cost to ensure that your kitchen is properly ventilated.

Thanks to a two speed fan and 1/2 hp blower motor, this convection oven efficiently recirculates heated air through its interior compartment to reduce energy consumption and increase performance. This system offers a cost-effective way of cooking your product at a lower temperature for a shorter amount of time, allowing you to get food to the tables faster. The oven is heated through a dual flow gas system that combines direct and indirect heat with removable dual tube burners. The gas shutoff valve on the front provides easy accessibility while the control system boasts electronic spark ignition for ease of use. The unit is controlled by a thermostat with a temperature range from 200 to 500 degrees Fahrenheit, giving you the ability to prepare a wide variety of products. For safety, the blower motor has an automated thermal overload protection mechanism and a control area cooling fan.

The powder-coated handle provides a comfortable grip while operating two dependent doors, which are tightly secured to the frame with a triple-mounted pressure lock design. The interior features five chrome-plated racks that can be configured into eleven rack positions with a minimum of 1 5/8" spacing to ensure that you are getting the most out of your oven, which has the ability to hold up to (5) 18" x 26" standard full size baking pans. In bakery depth ovens, you can arrange the racks in either left to right or front to back positions allowing for a "staggered" effect that improves airflow during baking. A 14 gauge double-sided porcelainized baking compartment liner allows for easy clean up of your unit. As an added benefit, the interior is illuminated, giving you the ability to check on your product without opening the doors and letting excess heat escape. This unit requires natural gas and a 115V electrical connection for operation.

Overall Dimensions:
Left to Right: 38 1/4"
Front to Back: 36 7/8"
Height: 32"

Interior Dimensions:
Left to Right: 29"
Front to Back: 28 1/4"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

In what situation would I want to buy this model?

This unit should only be used to replace an oven in a pre-existing stacked configuration. It does not come with any accessories.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.
