Product Overview

  • Makes up to 420 lb. of half cube ice per day
  • Durable 304 stainless steel exterior with a polyethylene interior
  • Digital controller allows user to quickly identify issues and the current stage of production
  • Includes bright LED lights to illuminate the ice bin and a removable air filter for quick cleaning and maintenance
  • Eco-friendly R290 refrigerant; 115V; NEMA 5-15P
UPC Code:400013671851
Shipping:
Quick Shipping
Usually ships in 1 business day
View all Avantco Ice Machines Air Cooled Ice Machines

Works With

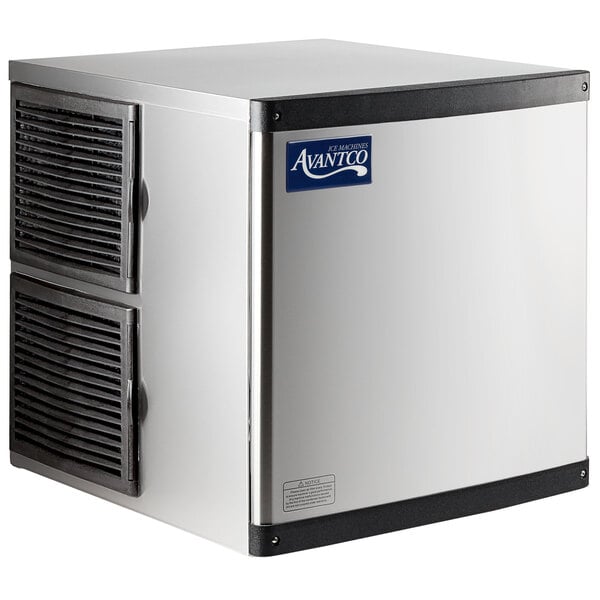

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice MC-420-22-HA 22" air cooled modular half cube ice machine!

Capable of producing up to 420 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand. At only 22" in width, this narrow unit is great for tight bars, kitchens, and coffee shops.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

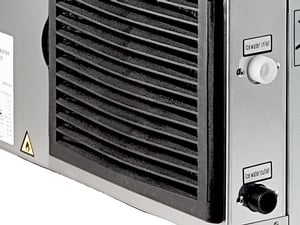

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection.

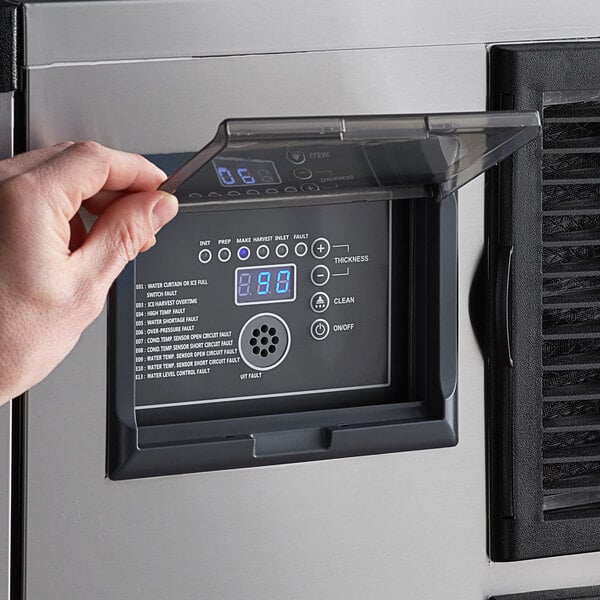

Intuitive Diagnostics

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

OceanLoch Mounting Holes

This unit comes with pre-drilled holes on the back of the unit to mount your OceanLoch water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

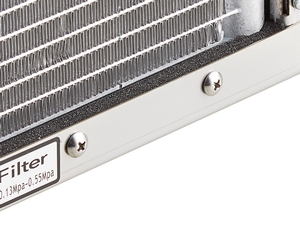

Removable Air Filter

A nickel-plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

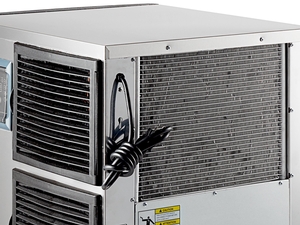

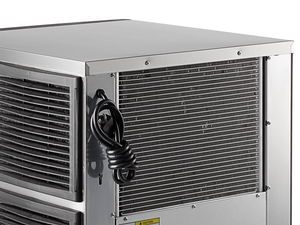

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area.

Stainless Steel construction

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. It is also non-corrosive, making it ideal for settings that are high in moisture and humidity.

Customer Q&AAsk a Question

My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
Why is a water filter automatically added to my cart with this item?
The use of poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality and a compatible water filter will be included when you add this piece of equipment to your cart. You may remove the filter from the cart prior to purchase.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.

Compare to Other Products

Overall Dimensions:
  • Width:22 Inches
  • Depth:24 3/8 Inches
  • Height:22 3/8 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Need Parts & Accessories?

View replacements or accessories for this item

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

  • Types of Ice Machines
  • Restaurant Equipment Certification Marks Explained
    • Specs
    Quantity1/Each
    Width22 Inches
    Depth24 3/8 Inches
    Height22 3/8 Inches
    Amps9.4 Amps
    Hertz60 Hertz
    Phase1 Phase
    Voltage115 Volts
    24 Hour Ice Yield 300 to 500 Pounds

    420 Pounds
    Ambient Temperature Range40 - 90 Degrees F
    BTU Per Hour3,207 BTU
    Condenser Type Air Cooled
    Ice Type Half Size Cubes
    Installation Type Modular
    Material Stainless Steel
    Plug Type NEMA 5-15P
    Power kWh/100 lbs. Ice5.2 kWh
    Refrigerant Type R-290
    Type Ice Machines
    Water Pressure Range18 3/4 - 80 PSI
    Water Temperature Range40 - 90 Degrees F
    Water Usage15 Gallons per 100 lbs.
