Avantco Ice MC-F-322-A 22" Air Cooled Modular Full Cube Ice Machine - 344 lb.
Item number 194mcf322a
Ships free withLearn More
Free Shipping
Regularly
$1,899.00/Each
$1,719.00/Each
Earn up to $56.97 back (5,697 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Not eligible for expedited shipping
Product Overview
- Makes up to 344 lb. of full cube ice per day
- Durable 304 stainless steel exterior with polyethylene interior
- Digital controller allows user to quickly identify issues and the current stage of production
- Removable air filter allows for quick cleaning
- R290 refrigerant; 115V; NEMA 5-15P
UPC Code:400015279604
Works With
View All ItemsMake sure you've always got plenty of fresh ice on hand with the Avantco Ice MC-F-322-A 22" air cooled modular full cube ice machine!
Capable of producing up to 344 lb. of full cube ice per day, you'll always have plenty of ice to serve on demand. At only 22" in width, this narrow unit is great for tight bars, kitchens, and coffee shops.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
OceanLoch+ Mounting Holes
This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

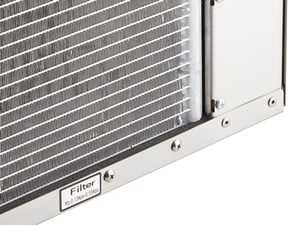

Removable Air Filter
A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

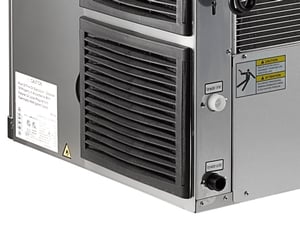

Side-Breathing with Rear Exhaust
Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area.
Intuitive Diagnostics
For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.
Stainless Steel Construction
Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. It is also non-corrosive, making it ideal for settings that are high in moisture and humidity.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
Does the height of this item include the feet?
The height listed on this product includes the adjustable feet set to their lowest setting.
Does this Avantco ice machine have backflow prevention?
Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
My ice machine has been shut down for awhile, how should I restart it?
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
What type of environment is best suited for this Avantco Ice Machine?
It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.
Why should I buy a water filter along with this product?
Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.
Will this Avantco Ice machine fit on other brands of ice bins and dispensers?
We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.
Overall Dimensions:
- Width:
- 22 Inches
- Depth:
- 24 3/8 Inches
- Height:
- 22 3/8 Inches
