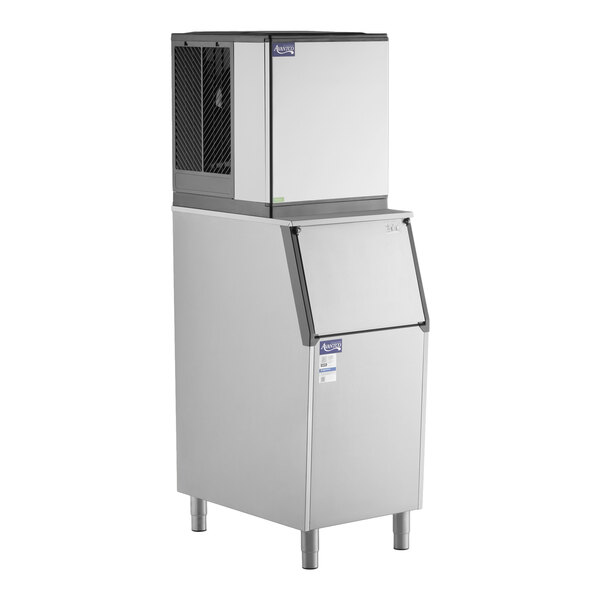

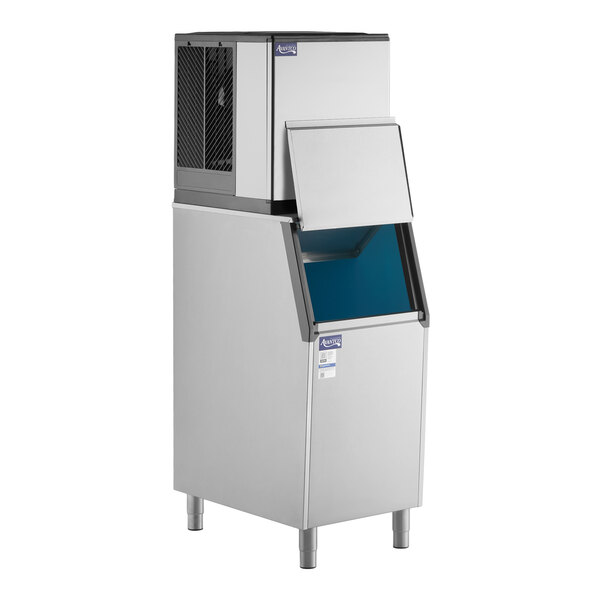

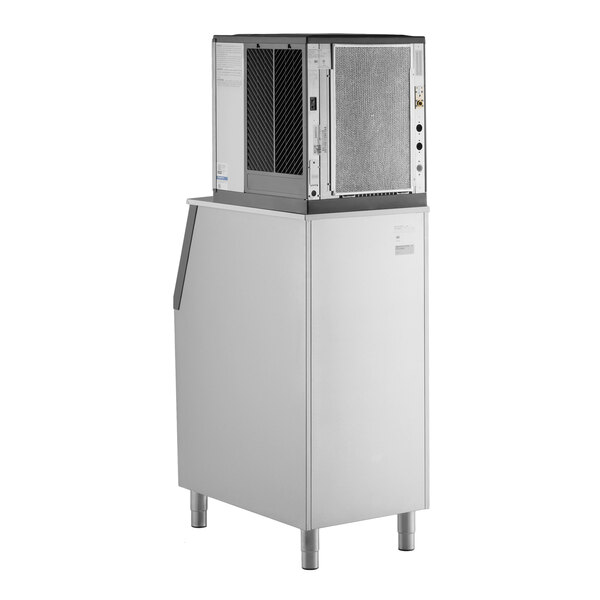

Avantco Ice Diamond EMC-H-422-A 22" Air-Cooled Modular Half Cube Ice Machine with 400 lb. Storage Bin - 431 lb., 115V
Item number 194kemch422ba
Works WithView All Items
Apply, opens link in this tabEarn up to $113.97 back (11,397 points)
(11,397 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 431 lb. of half cube ice per day
- Includes a stainless steel ice storage bin with a 400 lb. capacity
- High-efficiency evaporator ensures optimal ice production
- Smart electronic board monitors machine parameters and displays diagnostics
- Ice machine panels require only a single screwdriver for removal
UPC Code:400017878263
Works With
View All Items
- Quantity
- 1/Each
- Shipping Weight
- 284 lb.
- Width
- 25 5/8 Inches
- Depth
- 27 15/16 Inches
- Height
- 32 5/16 Inches
- Bin Width
- 23 3/16 Inches
- Bin Depth
- 36 1/4 Inches
- Bin Height
- 49 1/4 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 431 Pounds
- Ambient Temperature Range
- 43 - 109 Degrees F
- Bin Storage Capacity
- 400 lb.
- Condenser Type
- Air-Cooled
- Features
- NSF Certified
- Ice Type
- Half Size Cubes
- Installation Type
- Freestanding
- Interior Material
- Polyethylene
- Material
- Stainless Steel
- Plug Type
- Hardwire
- Product Line
- Avantco Ice Diamond
- Refrigerant Type
- R-290
- Stainless Steel Type
- Type 304
- Type
- Ice Machines with Bins
- Water Inlet Size
- 3/8 Inches
- Water Outlet Size
- 1 Inch
- Water Pressure Range
- 14 - 85 PSI
- Water Temperature Range
- 35 - 95 Degrees F
Details
Make sure you've always got plenty of fresh ice on hand with this Avantco Ice Diamond ice machine! This ice machine provides high-volume ice production in a compact footprint. It produces up to 431 lb. of half cube ice per day and stores up to 400 lb. of ice in the included storage bin. It operates using R-290 refrigerant for reduced energy usage, and it has a high-efficiency evaporator to ensure optimal ice production and a reliable performance. Plus, its advanced water distributer enhances drop-off precision and efficiency.
This ice machine is easy to use with a lighted on / off rocker switch on its back panel. Its smart electronic board monitors all of the machine parameters and displays its diagnostics. This unit features a frame made of type 304 stainless steel for long-lasting durability. Each of its panels can be removed with a single screwdriver to simplify maintenance. It requires a 115V electrical connection for operation.
This included storage bin is made of durable 304 stainless steel with an impact- and scratch-resistant polyethylene liner. The liner's 1-piece build and rounded edges simplify cleaning, while the bin's ergonomic design enhances user comfort and handling. This bin is insulated with high-density polyurethane foam and has a heavy-duty metal closure for a tight seal. Its drain system channels water directly to the outlet to remain clean and dry. With height-adjustable stainless steel legs, it is easy to level on uneven surfaces and clean underneath.
Kit Includes:
- Avantco ice machine (194EMCH422A)
- Avantco stainless steel ice storage bin (194EBIN40022)
Ice Machine Dimensions:
Width: 25 5/8"
Depth: 27 15/16"
Height: 32 5/16"
Ice Bin Dimensions:
Width: 23 3/16"
Depth: 36 1/4"
Height: 49 1/4"
Capacity: 400 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
NSF Certified
This item is certified by NSF to applicable standards.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
