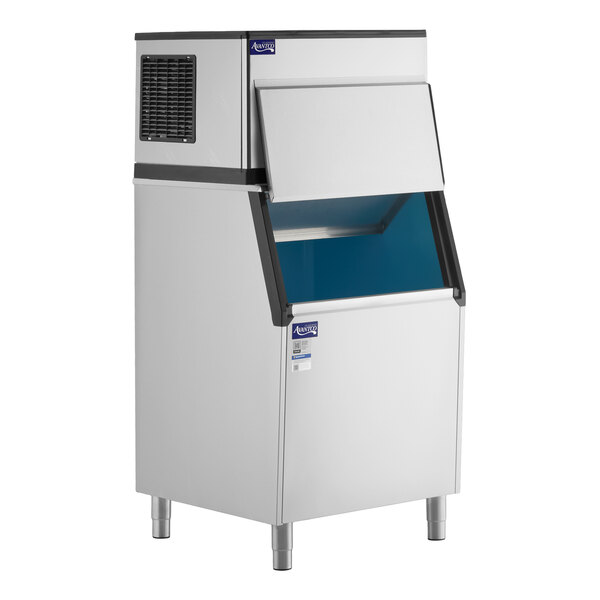

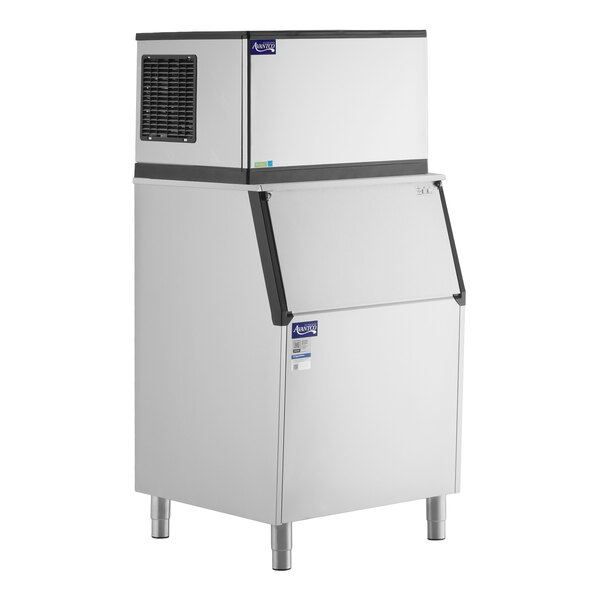

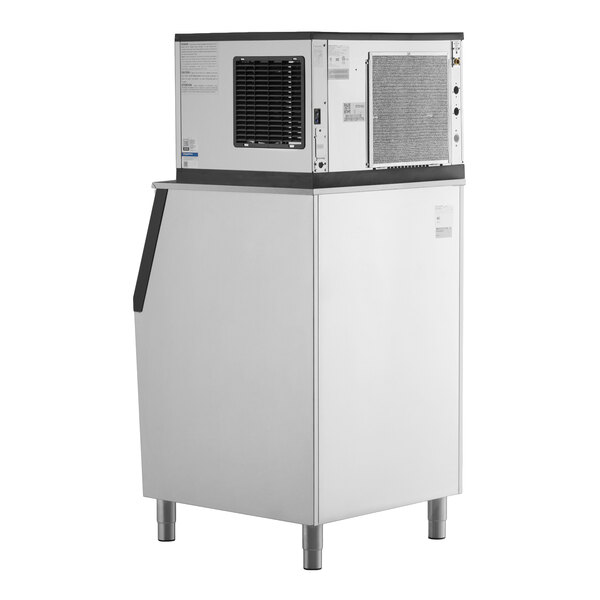

Avantco Ice Diamond EMC-H-530-A 30" Air-Cooled Modular Half Cube Ice Machine with 500 lb. Storage Bin - 518 lb., 115V

Item number  194kemch530ba

Ships free withLearn More
New
Free Shipping
Regularly

$3,829.00/Each

$3,579.00/Each

Accessories & Options

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Produces up to 518 lb. of half cube ice per day
  • Includes a stainless steel ice storage bin with a 500 lb. capacity
  • High-efficiency evaporator ensures optimal ice production
  • Smart electronic board monitors machine parameters and displays diagnostics
  • Ice machine panels require only a single screwdriver for removal

UPC Code:400017878287

View All Products From Avantco Ice MachinesView all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

Specs

Quantity
1/Each
Shipping Weight
303 lb.
Width
33 Inches
Depth
27 Inches
Height
24 Inches
Bin Width
33 7/16 Inches
Bin Depth
35 1/16 Inches
Bin Height
47 5/8 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
518 Pounds
Ambient Temperature Range
43 - 109 Degrees F
Bin Storage Capacity
500 lb.
Condenser Type
Air Cooled
Features
NSF Certified
Ice Type
Half Size Cubes
Installation Type
Freestanding
Interior Material
Polyethylene
Material
Stainless Steel
Plug Type
Hardwire
Product Line
Avantco Ice Diamond
Refrigerant Type
R-290
Stainless Steel Type
Type 304
Type
Ice Machines with Bins
Water Inlet Size
3/8 Inches
Water Outlet Size
1 Inch
Water Pressure Range
14 - 85 PSI
Water Temperature Range
35 - 95 Degrees F

Details

Make sure you've always got plenty of fresh ice on hand with this Avantco Ice Diamond ice machine! This ice machine provides high-volume ice production in a compact footprint. It produces up to 518 lb. of half cube ice per day and stores up to 500 lb. of ice in the included storage bin. It operates using R-290 refrigerant for reduced energy usage, and it has a high-efficiency evaporator to ensure optimal ice production and a reliable performance. Plus, its advanced water distributer enhances drop-off precision and efficiency.

This ice machine is easy to use with a lighted on / off rocker switch on its back panel. Its smart electronic board monitors all of the machine parameters and displays its diagnostics. This unit features a frame made of type 304 stainless steel for long-lasting durability. Each of its panels can be removed with a single screwdriver to simplify maintenance. It requires a 115V electrical connection for operation.

This included storage bin is made of durable 304 stainless steel with an impact- and scratch-resistant polyethylene liner. The liner's 1-piece build and rounded edges simplify cleaning, while the bin's ergonomic design enhances user comfort and handling. This bin is insulated with high-density polyurethane foam and has a heavy-duty metal closure for a tight seal. Its drain system channels water directly to the outlet to remain clean and dry. With height-adjustable stainless steel legs, it is easy to level on uneven surfaces and clean underneath.

Kit Includes:
- Avantco ice machine (194EMCH530A)
- Avantco stainless steel ice storage bin (194EBIN50030)

Ice Machine Dimensions:
Width: 33"
Depth: 27"
Height: 24"

Ice Bin Dimensions:
Width: 33 7/16"
Depth: 35 1/16"
Height: 47 5/8"
Capacity: 500 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
