$889.00/Each

Ships free with Plus
  • Dual outlets simultaneously supply multiple pieces of equipment
  • 162,000 gal. capacity; 15 GPM flow rate; 0.2 micron rating
  • Maximum operating pressure: 125 PSI
  • Sanitary Quick Change (SQC) with 1/4 of a turn
  • Reduces bacteria, chlorine taste, and odor
UPC Code: 016145209918
Shipping:
3M DP Systems

3M DP Systems

Provide top-quality water with 3M Water Filtration Products! 3M's dual port systems offer two outlets for function with multiple pieces of equipment. This makes them ideal for combo use with ice, coffee, steam or cold beverage machines. One side even has built-in scale inhibition to protect equipment from scale buildup. These models also feature high flow rates and capacities. Plus, with multi-stage filtration, no pre-filter is needed! Each model uses Integrated Membrane Pre-Activated Carbon Technology. This filtration media includes an activated carbon block and membrane that reduce chlorine taste and odor. This lowers the level of particulates, cyst, and in select 3M models, even bacteria in water. They even help prolong cartridge life and reduce change-out frequency. The Sanitary Quick-Change encapsulated cartridges enable fast, easy removal as well. For superior quality and efficiency, count on 3M dual port systems.

Copy and paste the embed code above.

Serving top-quality water is easy with the help of 3M's dual port systems! Learn more about these efficient systems by watching this video.

3M Water Filtration Products 5624102 Specs
Width 29 5/16 Inches
Height 26 3/8 Inches
Capacity 162,000 Gallons
Filter Type Scaling

Sediment

Taste
Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating .2 Microns
NSF Listed Yes
Service Flow Rate 15 GPM
Style Sanitary Quick Change
Type Filtration Systems

3M Water Filtration Products 5624102 Details

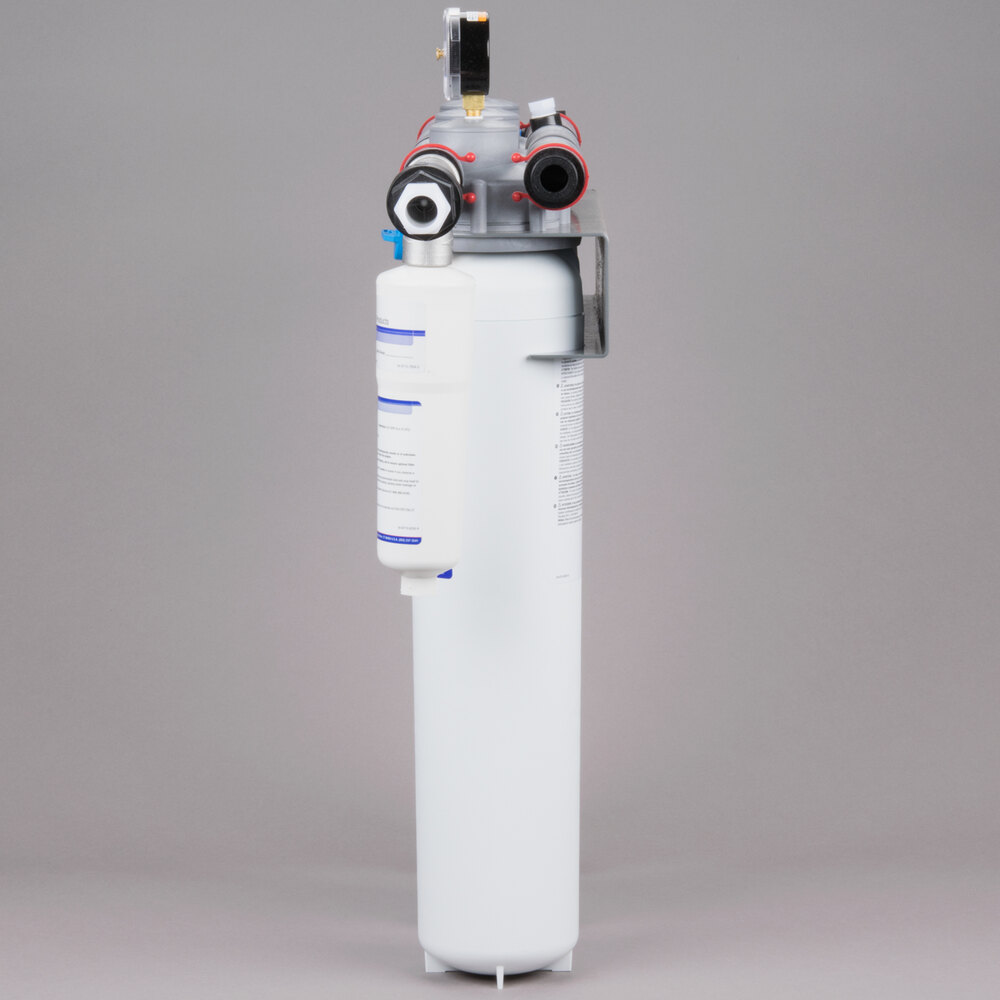

This 3M Water Filtration Products DP390 dual port water filtration system helps to simultaneously provide consistent high-quality water for multiple applications of cold beverages, ice, and coffee at a combined flow rate of up to 15 GPM! Dual outlet connections allow two separate streams to exit the manifold with reduced sediments, odors, and chlorine taste, while one stream has added scale inhibition media to protect the evaporator plates of an ice machine or the heating coils of a coffee brewer. A built-in bacteria inhibitor reduces up to 99.99% of common water-borne heterotrophic bacteria.

The 3M Water Filtration Products DP390 dual port water filtration system boasts a revolutionary Integrated Membrane Pre-Activated Carbon Technology ("IMPACT") dual-zone media cartridge construction that provides superior throughput and cartridge life. It has a Sanitary Quick Change (SQC) encapsulated cartridge design that allows for fast and easy cartridge change-outs with just a quarter turn.

3/4" NPT horizontal inlet and outlet ports allow direct or easily adaptable connections to existing plumbing lines. The 3M Water Filtration Products DP390 dual port water filtration system has a .2 micron rating.

Overall Dimensions:
Width: 29 5/16"
Height: 26 3/8"

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
