  • Dual outlets simultaneously supply multiple pieces of equipment
  • 108,000 gal. capacity; 10 GPM flow rate; 0.2 micron rating
  • Maximum operating pressure: 125 PSI
  • Sanitary Quick Change (SQC) with 1/4 of a turn
  • Reduces bacteria, chlorine taste, and odor
UPC Code: 016145210884
Shipping:
View all 3M Water Filtration Products Water Filtration Systems and Cartridges for Ice Machines

3M Water Filtration Products

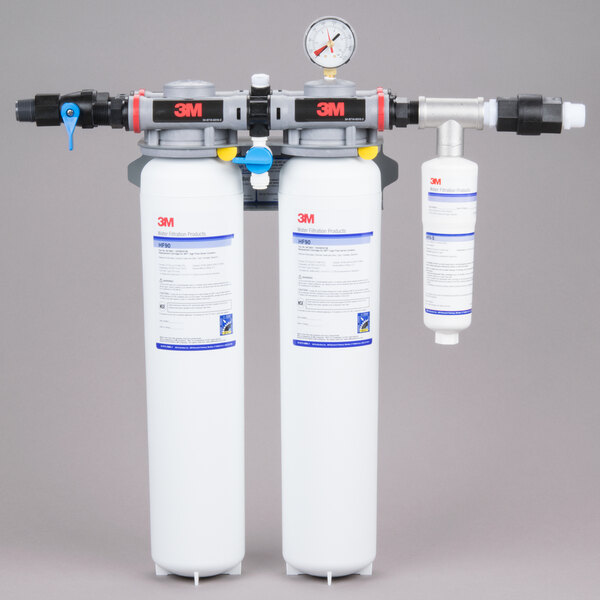

Reduce costly service calls with this 3M Water Filtration Products DP290 ice machine water filtration system.

This unique filtration system includes everything you need to ensure that your water produces enjoyable cold beverages, ice, and coffee for your customers! Its dual outlet connections allow two separate streams to exit the manifold; one to equipment needing scale inhibition, and the other not. To help protect your expensive equipment, this system helps prevent damage to valuable internal components which can decrease efficiency or even cause extensive long-term damage. With many ice machine warranties being voided if poor quality water is used, this well-rounded system becomes a must-add accessory since it filters for sediment and scale as well as chlorine taste and odor.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

"3 m always make amazing products that are built to last . Nothing is better than this filter right here. Buy one and you will see the difference"

Read More Reviews

Purifies Water

This system boasts an impressive 0.2 micron rating that effectively filters out even the smallest sediment so that you can be confident your ice will be made with the clearest, cleanest water possible. It inhibits scale from building up on the evaporator plates of your ice machine or the heating coils of your coffee brewer, while also eliminating unpleasant chlorine taste and odor from water and ice.

Quick, Sanitary Changeout

Changing the cartridge is as simple as flipping the release tab and turning. And since the media is totally encapsulated by the housing there's no chance of contamination.

Efficient Flow Rate

This system is rated to treat up to 108,000 gallons at a rate of up to 10 GPM, allowing it to quickly and efficiently filter high volumes of water.

Shut-Off Valve Assembly

A shut-off valve assembly is included so that you can stop the flow of water right at the source, effectively eliminating the need for external shut-off valves.

Convenient Filter Head

The DP290 dual port water filtration system includes a filter head with 3/4" horizontal inlet and outlet ports for simple connection to existing plumbing lines. For added convenience, it also comes with a gauge for easy pressure monitoring and an integrated bracket so that you can easily mount it to a wall. The dual port design provides high flow rates, handles higher capacities, and features all of the benefits of a multi-equipment filtration system in a small size.

3M DP Systems

3M DP Systems

Serving top-quality water is easy with the help of 3M's dual port systems! Learn more about these efficient systems by watching this video.

Transcript Embed
Provide top-quality water with 3M Water Filtration Products! 3M's dual port systems offer two outlets for function with multiple pieces of equipment. This makes them ideal for combo use with ice, coffee, steam or cold beverage machines. One side even has built-in scale inhibition to protect equipment from scale buildup. These models also feature high flow rates and capacities. Plus, with multi-stage filtration, no pre-filter is needed! Each model uses Integrated Membrane Pre-Activated Carbon Technology. This filtration media includes an activated carbon block and membrane that reduce chlorine taste and odor. This lowers the level of particulates, cyst, and in select 3M models, even bacteria in water. They even help prolong cartridge life and reduce change-out frequency. The Sanitary Quick-Change encapsulated cartridges enable fast, easy removal as well. For superior quality and efficiency, count on 3M dual port systems.

Copy and paste the embed code above.
Overall Dimensions:
  • Width: 23 5/16 Inches
  • Height: 26 3/8 Inches

Resources and Downloads for
3M Water Filtration Products 5624201

Spec Sheet Specsheet Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

3M Water Filtration Products 5624201 Specs
Width 23 5/16 Inches
Height 26 3/8 Inches
Capacity 108,000 Gallons
Filter Type Scaling

Sediment

Taste
Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating .2 Microns
NSF Listed Yes
Service Flow Rate 10 GPM
Style Sanitary Quick Change
Type Filtration Systems
