Ships free with Plus
  • Dual outlets to simultaneously supply multiple pieces of equipment
  • 70,000 gal. capacity; 6.68 GPM flow rate; 0.2 micron rating
  • Maximum operating pressure: 125 PSI
  • Sanitary Quick Change (SQC) with 1/4 of a turn
  • Reduces bacteria, scale, chlorine taste, and odor
UPC Code: 00016145242236
3M DP Systems

3M DP Systems

Provide top-quality water with 3M Water Filtration Products! 3M's dual port systems offer two outlets for function with multiple pieces of equipment. This makes them ideal for combo use with ice, coffee, steam or cold beverage machines. One side even has built-in scale inhibition to protect equipment from scale buildup. These models also feature high flow rates and capacities. Plus, with multi-stage filtration, no pre-filter is needed! Each model uses Integrated Membrane Pre-Activated Carbon Technology. This filtration media includes an activated carbon block and membrane that reduce chlorine taste and odor. This lowers the level of particulates, cyst, and in select 3M models, even bacteria in water. They even help prolong cartridge life and reduce change-out frequency. The Sanitary Quick-Change encapsulated cartridges enable fast, easy removal as well. For superior quality and efficiency, count on 3M dual port systems.

Copy and paste the embed code above.

Serving top-quality water is easy with the help of 3M's dual port systems! Learn more about these efficient systems by watching this video.

3M Water Filtration Products 5625501 Specs
Width 23 5/16 Inches
Height 18 1/16 Inches
Capacity 70,000 Gallons
Filter Type Bacteria / Viruses





Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating .2 Microns
Service Flow Rate 6.68 GPM
Style Sanitary Quick Change
Type Filtration Systems

Customer questions about this product

My water filter hasn’t been used since the COVID-19 shutdowns, does my cartridge need replaced?
If you haven’t used your water filter for a prolonged period of time, the cartridges should be replaced. Leaving a filter unused means that water has sat in the cartridge and there is potential for micro biologic growth. Please reference your user manual or contact customer service with any questions.
Ask your own question!

3M Water Filtration Products 5625501 Details

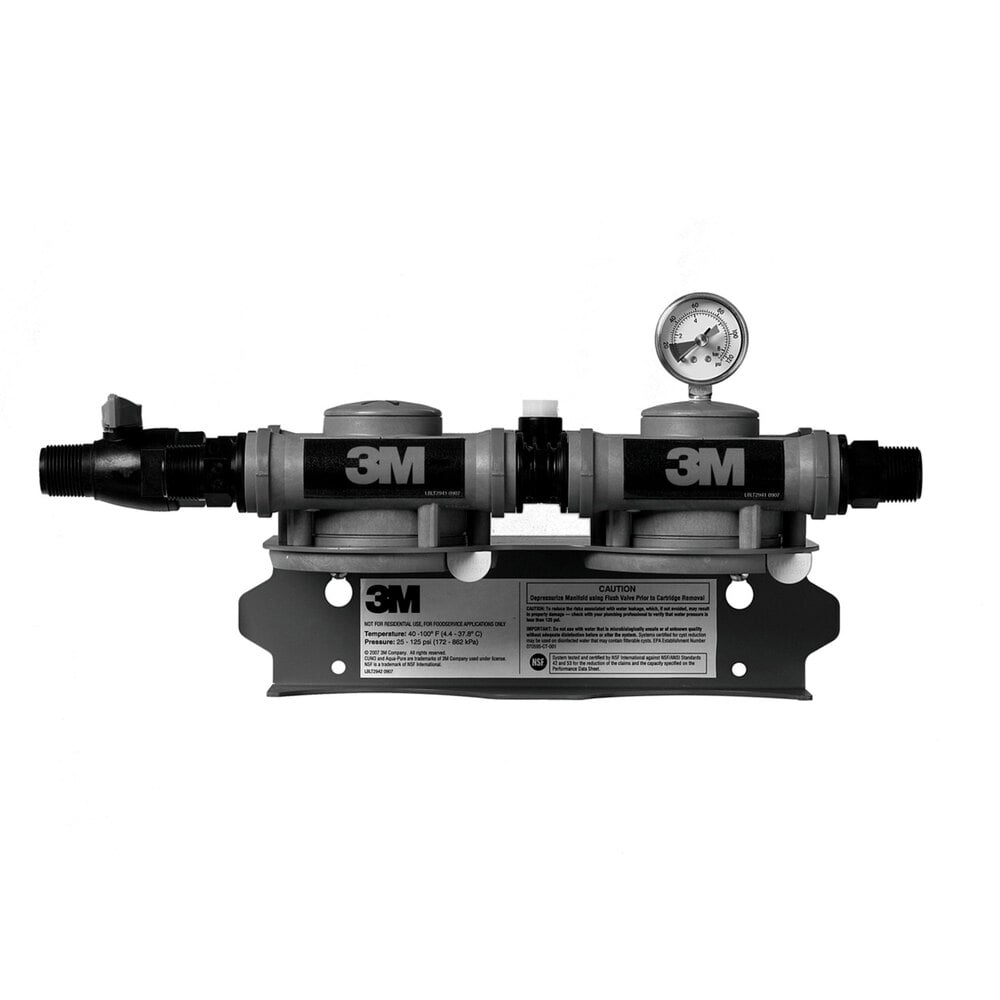

This 3M DP260 water filter system is the perfect way to provide top-quality water for your business! This system is designed to filter for scale, cysts, bacteria, sediment, and chlorine taste / odor in your water supply, and is a great choice when you need to operate multiple ice machines, coffee brewers, carbonators, and cold beverage units simultaneously. This keeps your water tasting fresh and clean, while preventing the buildup of stubborn hard water deposits that can clog water inlets and reduce effectiveness, which ultimately saves you on repair bills and prolongs the life of your equipment. It boasts a 0.2 micron rating and a flow rate of 6.68 GPM, while its 12 month / 70,000 gallon capacity changeout time gives you plenty of use between cartridge replacements.

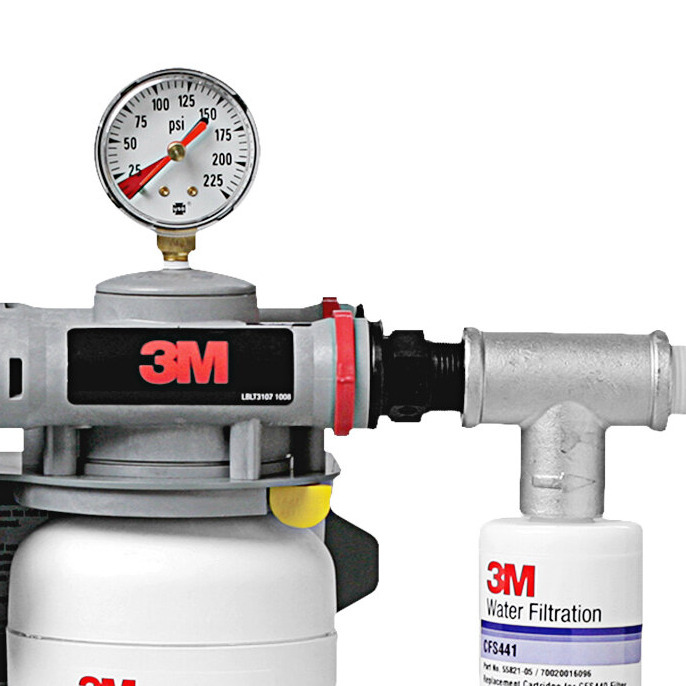

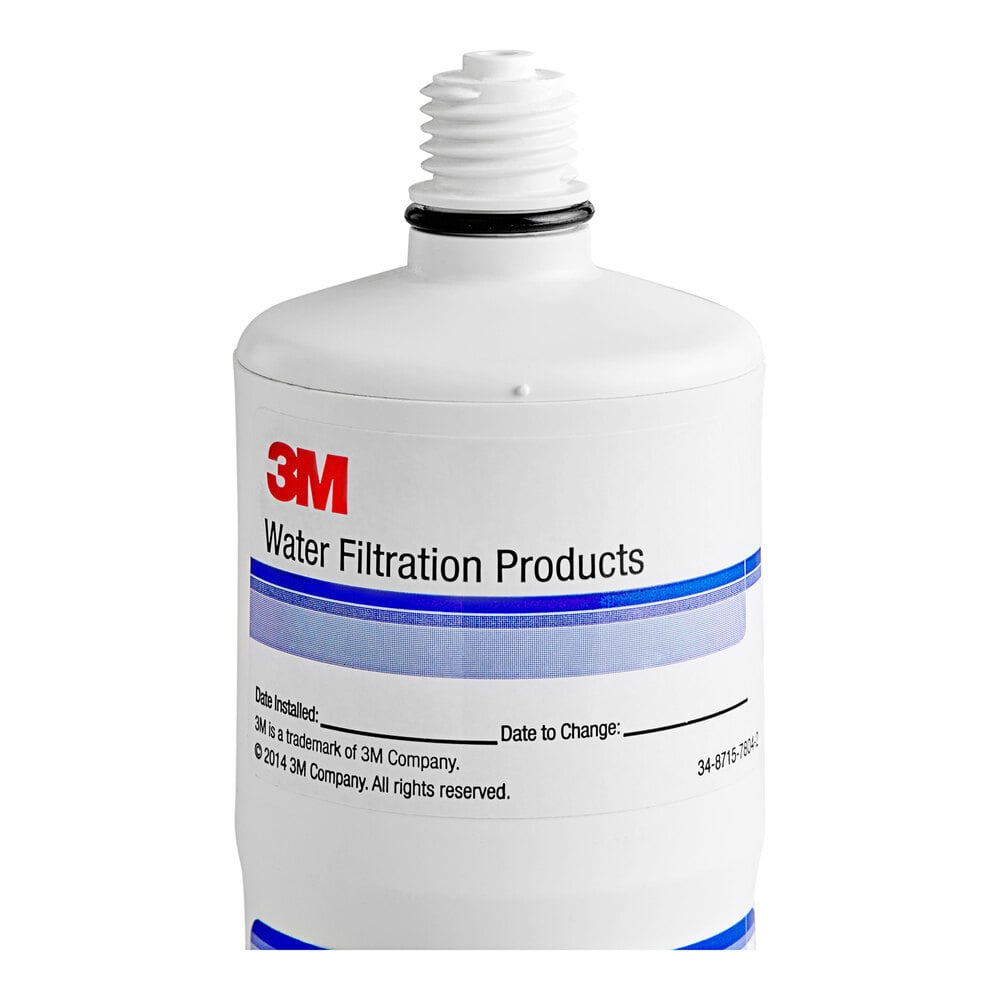

The filter comes with a dual-zone media cartridge that combines a membrane with pre-activated carbon to provide superior throughput and cartridge life. Two separate streams exit the manifold. Both streams have reduced sediment and chlorine taste / odor. One stream also has added scale-inhibition media from a dedicated cartridge. And when it is time to replace the cartridge, the process couldn't be easier thanks to its encapsulated quick-change design. Simply give the cartridge a 1/4 turn to remove, and replace with a new one. The system comes with a 2-cartridge manifold, pressure gauge, inlet water shutoff valve, outlet check valves, mounting brackets, (2) filter cartridges, and (1) scale inhibition cartridge. The inlet and outlet connections are 3/4" NPT.

Overall Dimensions:
Width: 23 5/16"
Height: 18 1/16"

  • 3/4

    3/4" Water Connection

    This unit comes with a 3/4" water connection.

Resources and Downloads for
3M Water Filtration Products 5625501

3M DP260 Specsheet Specsheet 3M Dual Port Manifold Water Filtration Systems Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: 3M Water Filtration Products DP260 High Flow Series Multi-Equipment Water Filtration System - 0.2 Micron Rating and 6.68 GPM

    5.0 stars from 1 review


    People Talk About:

    machine restaurants recommended love instalation Ice home filter expresso excellent
    Water totally tasty. I love this filter. The instalation is very easy. My expresso machine, Ice machine, working excellent. Completely recommended for restaurants and home.
