  • Dual outlets to simultaneously supply multiple pieces of equipment
  • 54,000 gal. capacity; 5 GPM flow rate; 0.2 micron rating
  • Maximum operating pressure: 125 PSI
  • Reduces particulate, chlorine taste, and odor
  • Sanitary Quick Change (SQC) with 1/4 of a turn
Quality Rating:
UPC Code: 016145209604

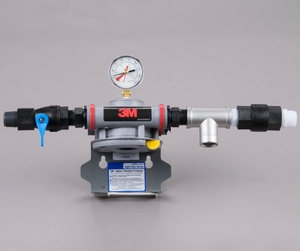

Reduce costly service calls with this 3M Water Filtration Products DP190 dual port water filtration system.

This unique filtration system includes everything you need to ensure that your water produces enjoyable cold beverages, ice, and coffee for your customers! Its dual outlet connections allow two separate streams to exit the manifold; one to equipment needing scale inhibition, and the other not. To help protect your expensive equipment, this system helps prevent damage to valuable internal components which can decrease efficiency or even cause extensive long-term damage. With many ice machine warranties being voided if poor quality water is used, this well-rounded system becomes a must-add accessory since it filters for sediment and scale as well as chlorine taste and odor.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Purifies Water

This system boasts an impressive 0.2 micron rating that effectively filters out even the smallest sediment so that you can be confident your equipment will be fed only the clearest, cleanest water possible. It inhibits scale from building up on the evaporator plates of your ice machine or the heating coils of your coffee brewer, while also eliminating unpleasant chlorine taste and odor from water and ice.

Quick, Sanitary Changeout

Changing the cartridge is as simple as flipping the release tab and turning. And since the media is totally encapsulated by the housing there's no chance of contamination.

Efficient Flow Rate

This system is rated to treat up to 54,000 gallons at a rate of up to 5 GPM, allowing it to quickly and efficiently filter high volumes of water.

Shut-Off Valve Assembly

A shut-off valve assembly is included so that you can stop the flow of water right at the source, effectively eliminating the need for external shut-off valves.

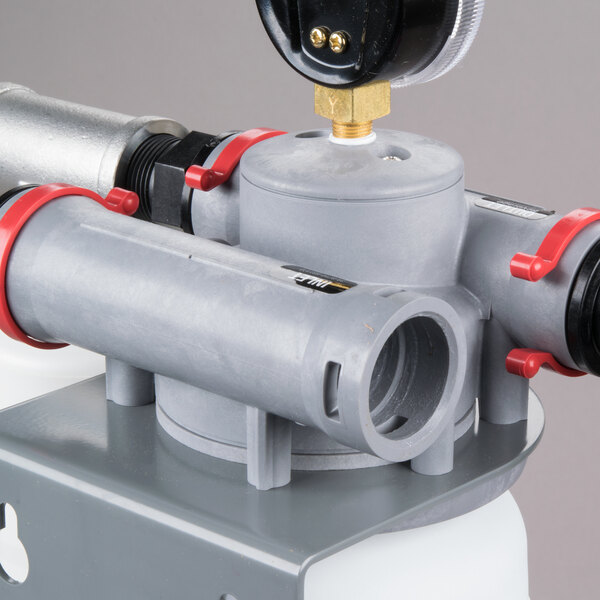

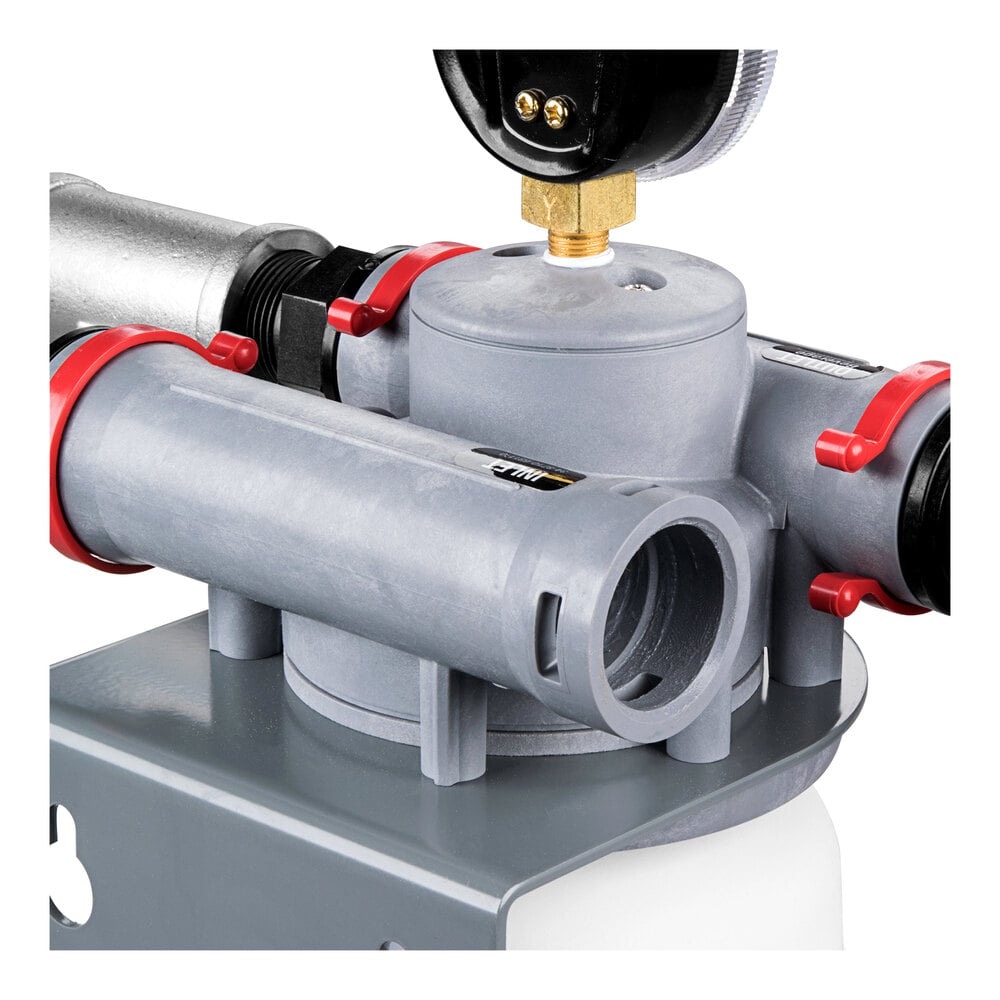

Convenient Filter Head

The DP190 dual port water filtration system includes a filter head with 3/4" horizontal inlet and outlet ports for simple connection to existing plumbing lines. For added convenience, it also comes with a gauge for easy pressure monitoring and an integrated bracket so that you can easily mount it to a wall. The dual port design provides high flow rates, handles higher capacities, and features all of the benefits of a multi-equipment filtration system in a small size.

3M DP Systems

Serving top-quality water is easy with the help of 3M's dual port systems! Learn more about these efficient systems by watching this video.

Provide top-quality water with 3M Water Filtration Products! 3M's dual port systems offer two outlets for function with multiple pieces of equipment. This makes them ideal for combo use with ice, coffee, steam or cold beverage machines. One side even has built-in scale inhibition to protect equipment from scale buildup. These models also feature high flow rates and capacities. Plus, with multi-stage filtration, no pre-filter is needed! Each model uses Integrated Membrane Pre-Activated Carbon Technology. This filtration media includes an activated carbon block and membrane that reduce chlorine taste and odor. This lowers the level of particulates, cyst, and in select 3M models, even bacteria in water. They even help prolong cartridge life and reduce change-out frequency. The Sanitary Quick-Change encapsulated cartridges enable fast, easy removal as well. For superior quality and efficiency, count on 3M dual port systems.

Copy and paste the embed code above.
Overall Dimensions:
  • Width: 17 1/4 Inches
  • Height: 24 3/16 Inches

Resources and Downloads for
3M Water Filtration Products 5624301

Spec Sheet Specsheet Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: 3M Water Filtration Products DP190 Dual Port Water Filtration System - .2 Micron Rating and 5.0 GPM

    5.0 stars from 5 reviews


    People Talk About:

    water drinks filter machine hard ice tea coffee Fountain feeds
    We are highly impressed in this product! This product has been a game changer in our water. It does not take up to much space which is helpful and it is a very important piece in our establishment. We recommend this product for anyone who is looking for a easy to use water filtration system.
    He is a water filtration system with excellent installation and excellent performance. After filtration, the water quality is very good..3M is the world's top 500 enterprise. It is trustworthy.
    The best water filter around! Yes, buy it, don't worry about the cost! This is a MUST have if you serve crafted drinks. Our water is so bad without it, we would have not been able to do business without it. Really good, clean water! Small in design and easy to setup, we have it running our coffee, teas, and ice machine.
    Completely awesome in so many ways. Bottom line: if you want your drinks to taste good, you have to have good water. This seems like a no-brainer, but you would be surprised how much improvement an item like this can make your drinks from either a tea urn or a fountain dispenser go from okay to fantastic in the customer's eyes (or mouth, I guess!). If you have hard water in your location, this makes a world of difference to the taste of any drink you make. it's very easy to install, as well as maintain by changing the filter with a simple twist. Some things to know: It has two output ports. One goes to your fountain drink machine, which doesn't pass through the scale inhibitor cartridge. Fountain drinks are by their nature very acidic, and therefore don't need any treatment for hard water. The other output is for your ice machine or tea/coffee urns. Tea and coffee are beverages dominated by subtle flavors, and they cross-react with hard water in a very bad way. Ice machines are another story altogether, as hard water can turn your expensive machine into a rather large paperweight. This filter system is the Cadillac of the filter world, and you need one. Read Less Read More
    This water filter works flawless for our restaurant - it's dual port and feeds both our ice machine and our Bunn tea brewer. A great investment to feed your equipment filtered water! Unless you are a plumber I would suggest hiring a licensed plumber to install it.
