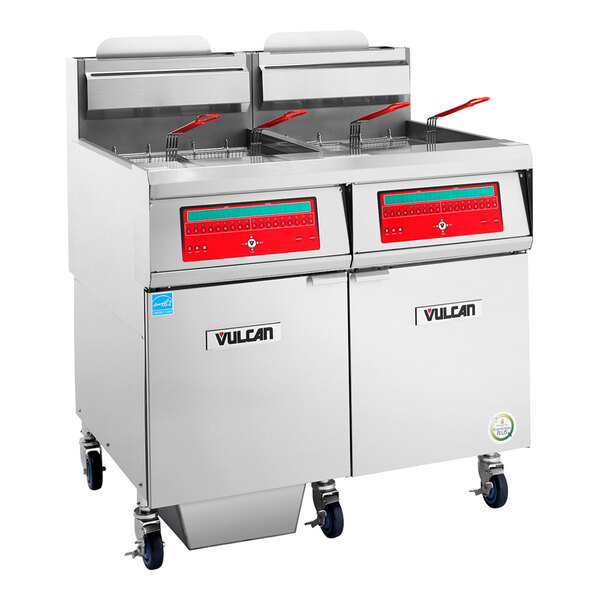

Vulcan 2VHG70CF-LP QuickFry Series 140 lb. Liquid Propane 2 Unit Floor Fryer with Computer Controls and KleenScreen PLUS Filtration System - 200,000 BTU

Vulcan 2VHG70CF LP Details

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With 2 tanks and a total oil capacity of 140 lb., this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting an 18 1/8" x 14 1/8" frying area per tank, this tube-style fryer system delivers 200,000 BTU of power. Each tank includes 2 twin fryer baskets with plastic-coated handles, allowing you to get started as soon as the tanks are filled. This fryer produces up to 111 lb. of 1/4" french fries per hour per tank. With an energy efficiency rating of 58%, it provides an impressive performance with reduced operating costs.

This fryer has user-friendly programmable computer controls with digital character displays that allow the operator to cook with actual time or compensating time. It comes with software for programming menu items offline through a USB interface or the menu can be downloaded from the touchpad onto a USB. It has optional single, dual, and triple lanes, 18 menu timers that display the product cook times and names, and automatic and manual boil-out modes. Each tank can be individually adjusted between 150 and 390 degrees Fahrenheit, and its digital displays can show the temperature in Fahrenheit or Celsius. This accurate temperature control combined with the unit's six heat exchanger tubes per tank allows the oil temperature to recover rapidly as food is immersed. An electric matchless ignition system combined with 3 melt modes allows you to gradually heat up your oil and help preserve its life.

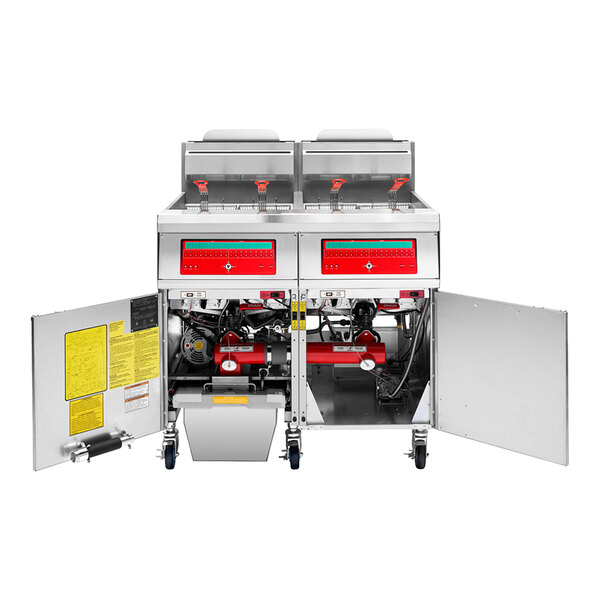

This fryer's dry fire safety prevention sequence prevents the fryer from turning on if there is no oil in the tank. A high-limit indicator shuts off the gas connection and standing pilot if the oil temperature is too high, while the drain valve interlock switch automatically turns off the gas burners when draining oil. The built-in, one-touch KleenScreen PLUS filtration system rapidly removes impurities to improve the quality and taste of your product while extending the life of the oil by 200-400%. Its 1/3 hp motor and pump circulate frying compound at a rate of 8 GPM, while its 462 sq. in. mesh screen filters from 2 sides.

The cabinets and fry tanks are made of durable stainless steel. The included tank brush and clean-out rod simplify cleaning, while a 1 1/4" full port drain valve ensures hassle-free oil removal. The (4) 6" casters, 2 locking, make it easy to move for cleaning or lock in place during use. This unit's filter battery comes with a 16-gauge stainless steel filter pan with a 90 lb. capacity, a filter screen assembly, and a 6' high-temperature discard hose. This unit requires liquid propane and a 120V, 1-phase electrical connection for operation.

Overall Dimensions:
Left to Right: 39 3/16"
Front to Back: 32 11/16"
Height: 47 3/4"

Fry Pot Dimensions (Per Tank):
Width: 18 1/8"
Depth: 14 1/8"
Cooking Depth: 4 1/2"
Capacity: 70 lb.
