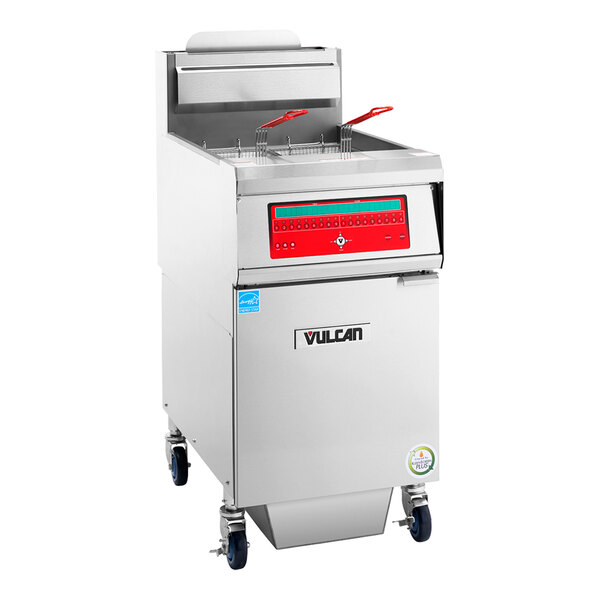

Vulcan 1VHG70CF-LP QuickFry Series 70 lb. Liquid Propane Floor Fryer with Computer Controls and KleenScreen PLUS Filtration System - 100,000 BTU

Vulcan 1VHG70CF LP Details

Deliver basket after basket of freshly fried foods to your customers with this Vulcan QuickFry series floor fryer! With an oil capacity of 70 lb., this unit is ideal for industrial kitchens, restaurants, cafeterias, and other foodservice establishments. Boasting an 18 1/8" x 14 1/8" frying area, this tube-style fryer system delivers 100,000 BTU of power. Two twin fryer baskets with plastic-coated handles are included, allowing you to get started as soon as you fill the tank. This fryer produces up to 111 lb. of 1/4" french fries per hour. With an energy efficiency rating of 58%, it provides an impressive performance with reduced operating costs.

This fryer has user-friendly programmable computer controls with a digital character display that allows the operator to cook with actual time or compensating time. It comes with software for programming menu items offline through a USB interface or the menu can be downloaded from the touchpad onto a USB. It has optional single, dual, and triple lanes and 18 menu timers that display the product cook times and names. It features 10 countdown timers, an auto and manual boil-out mode, and a digital temperature display that shows Fahrenheit or Celsius. This fryer can be precisely adjusted between 150 and 390 degrees Fahrenheit. This accurate temperature control combined with the unit's 4 heat exchanger tubes allows the oil temperature to recover rapidly as food is immersed. An electric matchless ignition system combined with 3 melt modes allows you to gradually heat up your oil and help preserve its life.

This fryer's dry fire safety prevention sequence prevents the fryer from turning on if there is no oil in the tank. A high-limit indicator shuts off the gas connection and standing pilot if the oil temperature is too high, while the drain valve interlock switch automatically turns off the gas burners when draining oil. The built-in, one-touch KleenScreen PLUS filtration system rapidly removes impurities to improve the quality and taste of your product while extending the life of the oil by 200-400%. Its 1/3 hp motor and pump circulate frying compound at a rate of 8 GPM, while its 462 sq. in. mesh screen filters from 2 sides.

Both the cabinet and fry tank are made of durable stainless steel. The included tank brush and clean-out rod simplify cleaning, while a 1 1/4" full port drain valve ensures hassle-free oil removal. The (4) 6" casters, 2 locking, make it easy to move for cleaning or lock in place during use. This unit's filter battery comes with a 16-gauge stainless steel filter pan with a 90 lb. capacity, a filter screen assembly, and a 4' high-temperature discard hose. This unit requires liquid propane and a 120V, 1-phase electrical connection for operation.

Overall Dimensions:
Left to Right: 19 11/16"
Front to Back: 32 11/16"
Height: 47 3/4"

Fry Pot Dimensions:
Width: 18 1/8"
Depth: 14 1/8"
Cooking Depth: 4 1/4"
Capacity: 70 lb.
