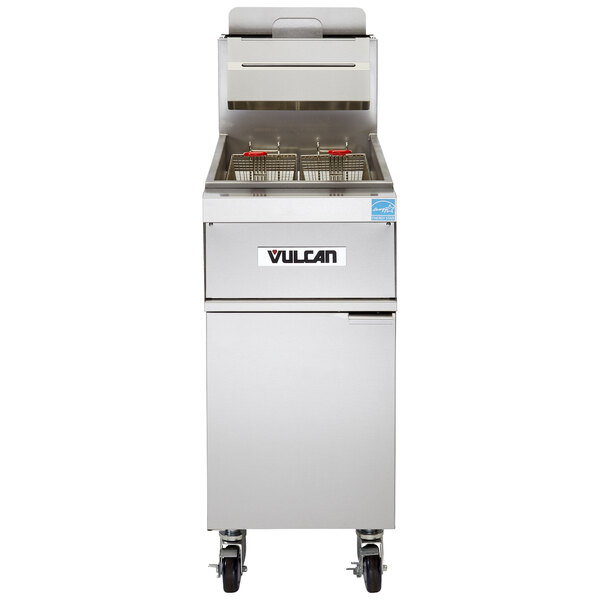

Vulcan 1TR85AF-1 PowerFry3 Natural Gas 85-90 lb. Floor Fryer with Solid State Analog Controls and KleenScreen Filtration System - 90,000 BTU
$10,657.10/EachShips free with Plus
Phone number must be able to receive text messages
Message and data rates may apply. You may opt-out at any time by sending STOP to +17172887303. (Note: if you texted STOP but would like to restart, text START, and make sure your number below is correct.)
Or call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)
Other Available Fuel Types:
- 85-90 lb. oil capacity
- Solid state analog control knob with 2 melt modes
- Fast recovery that reacts within 2 degrees Fahrenheit of set temperature
- Exclusive ThreePass heat transfer system yields 60.0% cooking and 72% thermal efficiency
- Energy-saving SoftStart ignition system extends oil life
- 1-touch button activates KleenScreen filtration system
- Durable stainless steel construction with twin fry baskets
- 90,000 BTU, 120V, requires natural gas
White Glove Delivery - Available -What is White Glove service?
Carlisle 4011200 Sparta 24" High-Heat Fryer Brush with Looped Teflon® Bristles
plus $44.99 /Each
Carlisle 4011105 Sparta 23" High-Heat Fryer Brush with L-Tip Teflon® Bristles
plus $23.49 /Each
Dormont 1675KIT48 Deluxe SnapFast® 48" Gas Connector Kit with Two Elbows and Restraining Cable - 3/4" Diameter
plus $123.99 /Each
30" Fryer Clean Out Rod with Handle
plus $6.49 /Each
|Vulcan 1TR85AF-1 Specs|
|Depth||34 3/8 Inches|
|Height||47 1/8 Inches|
|Fry Pot Width||19 1/2 Inches|
|Fry Pot Depth||18 1/4 Inches|
|Capacity||85 - 90 lb.|
|Capacity per Fry Pot||85 - 90 lb.|
|Energy Star Qualified||Yes|
|Features||Built-In Filtration System|
|Fry Pot BTU||90,000|
|Gas Inlet Size||3/4 Inches|
|Made in America||Yes|
|Number of Fry Baskets||2|
|Number of Fry Pots||1|
|Power Type||Natural Gas|
Customer questions about this product
- My business is at a high elevation; does this change anything when I order gas cooking equipment?
- Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Vulcan 1TR85AF-1 Details
Deliver basket after basket of freshly fried foods to your customers with this Vulcan 1TR85AF-1 PowerFry3 85-90 lb. natural gas floor fryer with solid state analog controls and KleenScreen filtration! With an oil capacity of 85-90 lb., this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 19 1/2" x 18 1/4" frying area, this tube-style fryer delivers 90,000 BTU of power and comes with 2 twin fry baskets, so you can get to frying as soon as you fill the tank!
Equipped with a user-friendly solid state analog control knob behind the fryer door, this unit's temperature can be adjusted from 200-390 degrees Fahrenheit in just a few simple steps. The control allows the unit to react within 2 degrees Fahrenheit of the set temperature, which provides faster recovery and improves overall performance. A SoftStart ignition system combines with 2 selectable melt modes to allow you to gradually heat up your oil and help preserve its life, while also using less BTUs. By maintaining an idle temperature setting that only uses 5575 BTU of power, the fryer conserves energy and proves to be a very efficient addition to your equipment lineup.
This fryer features Vulcan's exclusive ThreePass heat transfer system that passes heat to the oil for a much quicker recovery, yielding 60.0% cooking and 72% thermal efficiency. At its maximum production rate, the flue temperatures are less than 750 degrees Fahrenheit! Plus, to ensure safety for all employees, a hi-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. A large V-shaped cold zone at the bottom of the fry tank prevents crumbs and other debris from burning, which extends the life of your shortening. For ultimate oil preservation, the KleenScreen filtration system aids by removing impurities, which improves the quality and taste of your product. A 1 1/4" full port drain valve makes oil removal a quick and hassle-free process.
Both the cabinet and fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean out rod. When you need to clean behind the fryer, the 6" casters provide easy maneuverability. This unit requires natural gas and a 120V electrical connection for operation.
Left to Right: 21"
Front to Back: 34 3/8"
Height: 47 1/8"
Frying Area: 19 1/2" x 18 1/4"
Oil Capacity: 85-90 lb.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
CSA Blue Flame
This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.
CSA Design Cert
This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.
This unit comes with a NEMA 5-15P plug.
3/4" Gas Connection
This unit comes with a 3/4" gas connection.
