Fuel Type: Liquid Propane
Installation Services
Product Overview
- 85-90 lb. oil capacity
- Solid state analog control knob with 2 melt modes
- Fast recovery that reacts within 2 degrees Fahrenheit of set temperature
- Exclusive ThreePass heat transfer system yields 60.0% cooking and 72% thermal efficiency
- Energy-saving SoftStart ignition system extends oil life
- Hi-limit shut off for operator safety
- Durable stainless steel construction with twin fry baskets
- 90,000 BTU, 120V, requires liquid propane
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
$49.99/Case
- Noble Chemical 8 oz. / 240 mL Fryclone Ready-to-Use Fryer Oil Stabilizer and Filter Powder - 72/Case
$52.99/Case
$68.99/Case
$119.99/Each
$1,459.99/Each
$6.79/Each
$27.29/Each
$7,641.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 267 lb.
- Width
- 21 Inches
- Depth
- 34 3/8 Inches
- Height
- 47 1/8 Inches
- Fry Pot Width
- 19 1/2 Inches
- Fry Pot Depth
- 18 1/4 Inches
- Amps
- 6 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Burner Style
- Tube
- Cabinet
- Stainless Steel
- Capacity
- 85 - 90 lb.
- Features
- Energy Star Qualified Made in America NSF Listed
- Gas Connection Size
- 3/4 Inches
- Number of Fry Baskets
- 2 Fry Baskets
- Number of Fry Pots
- 1 Fry Pot
- Plug Type
- NEMA 5-15P
- Power Type
- Liquid Propane
- Split Pot
- Without Split Pot
- Temperature Range
- 200 - 390 Degrees F
- Total BTU
- 90,000 BTU
- Type
- Gas Floor Fryers
Vulcan 1TR85A Details

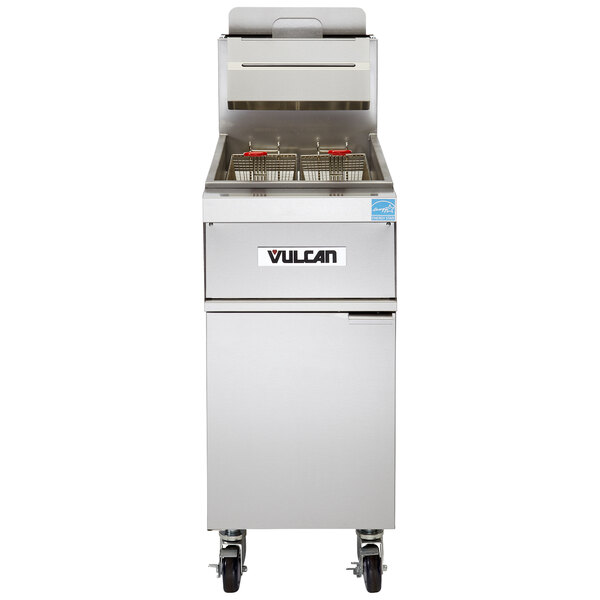

Deliver basket after basket of freshly fried foods to your customers with this Vulcan 1TR85A-2 PowerFry3 85-90 lb. liquid propane floor fryer with solid state analog controls! With an oil capacity of 85-90 lb., this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 19 1/2" x 18 1/4" frying area, this tube-style fryer delivers 90,000 BTU of power and comes with 2 twin fry baskets, so you can get to frying as soon as you fill the tank!
Equipped with a user-friendly solid state analog control knob behind the fryer door, this unit's temperature can be adjusted from 200-390 degrees Fahrenheit in just a few simple steps. The control allows the unit to react within 2 degrees Fahrenheit of the set temperature, which provides faster recovery and improves overall performance. A SoftStart ignition system combines with 2 selectable melt modes to allow you to gradually heat up your oil and help preserve its life, while also using less BTUs. By maintaining an idle temperature setting that only uses 5575 BTU of power, the fryer conserves energy and proves to be a very efficient addition to your equipment lineup.
This fryer features Vulcan's exclusive ThreePass heat transfer system that passes heat to the oil for a much quicker recovery, yielding 60.0% cooking and 72% thermal efficiency. At its maximum production rate, the flue temperatures are less than 750 degrees Fahrenheit! Plus, to ensure safety for all employees, a hi-limit indicator shuts off the gas connection and standing pilot if the oil temperatures get too high. A large V-shaped cold zone at the bottom of the fry tank prevents crumbs and other debris from burning, which extends the life of your shortening and improves the taste of your product. A 1 1/4" full port drain valve makes oil removal a quick and hassle-free process.
Both the cabinet and fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean out rod. When you need to clean behind the fryer, the 6" casters provide easy maneuverability. This unit requires liquid propane and a 120V electrical connection for operation.
Overall Dimensions:
Left to Right: 21"
Front to Back: 34 3/8"
Height: 47 1/8"
Frying Area: 19 1/2" x 18 1/4"
Oil Capacity: 85-90 lb.
Please check the Compatibility resource for information on items that work with this product.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I modify this item?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
5-15P
This unit comes with a NEMA 5-15P plug.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
Made in America
This item was made in the United States of America.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
