Fuel Type: Natural Gas
Installation Services
Product Overview
- 4 open top burners rated at 32,000 BTU each
- 24" manual griddle rated at 36,000 BTU
- Includes a standard oven rated at 38,000 and a storage cabinet base
- Durable stainless steel body components; includes 6" adjustable stainless steel legs
- 202,000 BTU output; natural gas
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 604 lb.
- Width
- 47 1/4 Inches
- Depth
- 34 1/2 Inches
- Height
- 57 Inches
- Griddle Width
- 24 Inches
- Nominal Width
- 48 Inches
- Burner BTU
- 32,000 BTU
- Control Type
- Manual
- Features
- NSF Listed
- Gas Connection Size
- 1 Inch
- Griddle BTU
- 36,000
- Installation Type
- Freestanding
- Number of Burners
- 4 Burners
- Number of Ovens
- 1 Oven
- Number of Racks
- 1 Rack
- Power Type
- Natural Gas
- Range Base Style
- Standard Oven / Storage Base
- Top Configuration
- Burners with Right Griddle
- Total BTU
- 202,000 BTU
Garland / US Range U48-4G24RS-0004 Details

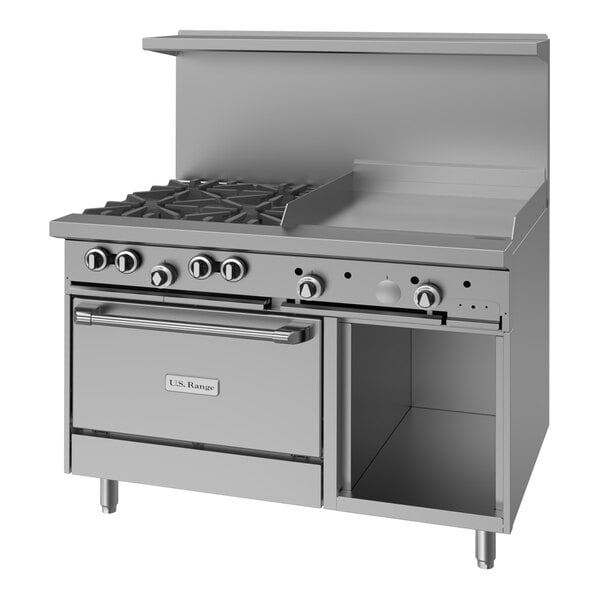

Outfit your kitchen with this U.S. Range U48-4G24RS natural gas 4 burner 48" range with 24" manual griddle, 26" standard oven, and cabinet base! This powerful range comes packed with features that enhance its convenience and usability - a necessity for your commercial kitchen.
Each of the 4 open top, two-piece, cast iron burners is set in an ergonomic, split grate. The two-piece burner design makes cleaning up spills easier, and the split grates are easier to lift off than heavy, bulky, one-piece grates.
For greater versatility, this model also features a 24" manual griddle on the right side of the range! It has a durable 5/8" thick steel griddle plate with a 23" surface depth. The manual, hi/lo, griddle controls are great for the operator who enjoys cooking by feel.
For your low volume baking and warming needs, this unit comes with a standard oven base. It features a robust "H" style cast iron burner and a nickel-plated oven rack with a 3-position removable guide. Plus, its porcelain bottom and door liner makes cleanup a snap, and its 26 1/4" width fits standard sheet pans in both directions. The oven features an easy-to-modulate snap action oven thermostat with a temperature range from low to 500 degrees Fahrenheit. This wide temperature range with precision adjustment means you can use the oven for holding, as well! Beside the oven, this range also has a storage cabinet in the base to keep frequently-used items close by.
Designed to make kitchen tasks easier, this range features a large, 27" deep work surface that is designed for more capacity. Plus, it has a 5" front plate rail that gives you a cool place to set tools and also prevents burns if employees brush against the front of the range. In addition, it comes equipped with a stainless steel backguard, removable shelf, and 6" adjustable stainless steel legs so you have everything you need to set up your cooking line. This unit requires a natural gas connection for operation.
Overall Dimensions:
Width: 47 1/4"
Depth: 34 1/2"
Height: 57"
Working Height: 36"
Oven Dimensions:
Width: 26 1/4"
Depth: 26"
Height: 13"
Griddle Dimensions:
Width: 24"
Depth: 23"
Thickness: 5/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I cancel my order for this Garland item if I change my mind?
Can I modify this item?
Can this Garland product be shipped directly to my home?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
1" Gas Connection
This unit comes with a 1" gas connection to be installed by a professional.
