Product Overview

  • Stainless steel exterior, anodized aluminum interior
  • "D-Width" models offer maximum interior storage capacity in a narrow footprint
  • INTELA-TRAUL microprocessor control system
  • Integrated door lock ensures product security
  • 3 adjustable wire shelves
  • 1/3 hp compressor uses R-450A refrigerant
  • 2" thick, non-CFC polyurethane foam insulation
  • 6" adjustable legs
UPC Code:400010776863

Traulsen AHT132DUT-FHS Specs

Quantity
1/Each
Shipping Weight
290 lb.
Width
24 Inches
Depth
35 Inches
Height
83 1/4 Inches
Interior Width
18 5/8 Inches
Interior Depth
29 1/2 Inches
Interior Height
58 7/16 Inches
Amps
8 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Capacity
17.7 cu. ft.
Compressor Location
Top Mounted
Construction
Stainless Steel and Aluminum
Door Style
Swing
Door Type
Solid
Dutch Half Doors
Without Dutch Half Doors
Features
Made in America  NSF Listed  Spec Line
Horsepower
1/3 HP
Installation Type
Freestanding
Number of Doors
1 Door
Number of Shelves
3 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-450A
Sections
1 Section
Temperature Range
34 - 38 Degrees F

Customer questions about this product

How many wire shelves come with this unit?

This unit comes standard with three wire shelves per section. Please consult the Shelving Options sheet for more information, or contact our Special Orders department for additional shelving and tray slide options.

Should items be stored on top of a refrigerator with a top mounted compressor?

No, for ventilation and protection of the refrigeration system, nothing should sit on top of a unit with a top mounted compressor.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!

Traulsen AHT132DUT-FHS Details

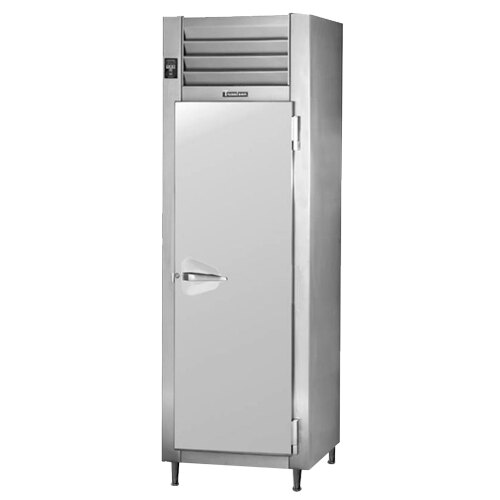

The Traulsen AHT132DUT-FHS one section 17.7 cu. ft. narrow reach in refrigerator uses its INTELA-TRAUL microprocessor controls to deliver unparalleled accuracy and performance for your commercial kitchen. As the industry's most advanced technology for controlling and monitoring temperatures, the easy-to-use INTELA-TRAUL controls provide HACCP temperature monitoring and are even NAFEM Data Protocol compliant to deliver the results you expect for years to come.

This high performance, "D-Width" one section reach in refrigerator features a durable stainless steel exterior that will stand up to the demands of your busy kitchen, and offers maximum storage capacity within a space saving, narrow footprint. This narrow refrigerator features a self-closing door that includes a convenient stay-open feature when opened past 120 degrees. A gasket-protecting metal door pan and removable vinyl magnetic door gaskets ensure durability and outstanding temperature preservation. The spacious, anodized aluminum interior of this narrow refrigerator comes standard with automatic incandescent lighting, and three adjustable wire shelves capable of supporting 225 lb. each.

The top mounted 1/3 hp compressor, environmentally friendly R-450A refrigerant and high density, foamed-in-place insulation ensure outstanding temperature preservation and efficiency. Its top mounted design prevents dust, food, and spills from damaging the compressor's fan intake.

Overall Dimensions:
Width: 24"
Depth: 35"
Height: 83 1/4"

Interior Dimensions:
Width: 18 5/8"
Depth: 29 1/2"
Height: 58 7/16"
Capacity: 17.7 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Need Parts & Accessories?

Show replacement parts and accessories for Traulsen AHT132DUT-FHS today!

Resources and Downloads for
Traulsen AHT132DUT-FHS

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Traulsen equipment has a 3 year parts and labor warranty. Traulsen compressors have a 5 year warranty. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
