Name: Norlake KODB7788-C Kold Locker 8' x 8' x 7' 7" Outdoor Walk-In Cooler
Brand: Norlake
SKU: 596KDB7788C
Price: 14913 USD
Availability: LimitedAvailability

A white metal Norlake Kold Locker walk-in cooler with an open door.

A Norlake Kold Locker walk-in cooler with a black square with white text on it.

0:00 / 0:00

Note: Representative Model Shown

$14,913.00/Each

Ships free with Plus

Accessories & Options

Door HingeRequired

Exterior Kickplate Type

Interior Kickplate Type

Optional - Alternate Floor Plans

Optional - Compressor Extended Warranty

Earn up to $447.39 back (44,739 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Flush coil design keeps all cooling components outside
Made with 26 gauge corrosion-resistant embossed galvanized steel
4" thick insulation maintains consistent temperatures
Externally-mounted thermometer allows for easy temperature monitoring
Designed for outdoor use

UPC Code:400010121823

View all Norlake Walk-In Coolers / Refrigerators

Quantity: 1/Each
Shipping Weight: 1587 lb.
Width: 96 Inches
Depth: 96 Inches
Height: 91 Inches
Door Width: 26 Inches
Nominal Width: 8 Feet
Nominal Depth: 8 Feet
Door Height: 78 Inches
Height (with refrigeration unit): 106 Inches
Nominal Height: 7 3/5 Feet
Refrigeration Unit Height: 15 Inches
Amps: 6.38 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 115 Volts
BTU Per Hour: 6,700 BTU
Capacity: 485 cu. ft.
Compressor Location: Top Mounted
Door Style: Swing
Door Type: Solid
Features: LED Lighting Made in America NSF Listed
Floor: With Floor
Horsepower: 3/4 hp
Plug Type: NEMA 5-15P
Refrigerant Type: R-290
Refrigeration Type: Self-Contained
Temperature Range: 35 - 38 Degrees F
Usage: Outdoor

Norlake KODB7788-CX Details

The Norlake Kold Locker 8' x 8' x 7' 7" outdoor walk-in cooler offers versatility and superior storage space all in one easy-to-assemble unit!

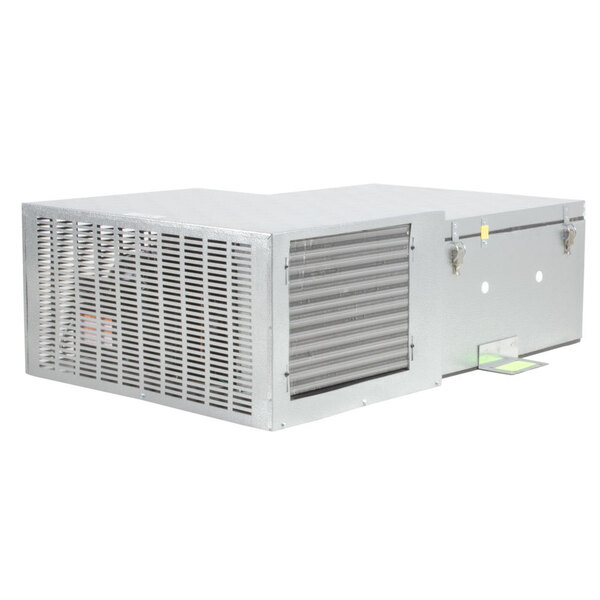

An innovative, self-contained, top-mounted Capsule Pak cooling unit provides 100% usable interior storage space by utilizing a flush coil design, which keeps all cooling components outside the walk-in cooler. Ambient controls and a refrigeration hood ensure the Capsule Pak functions properly at temperatures down to -20 degrees Fahrenheit.

The 3/4 hp, 115V cooling unit has a temperature range of 35 to 38 degrees Fahrenheit. The self-contained Capsule Pak installs easily and uses R290 refrigerant.

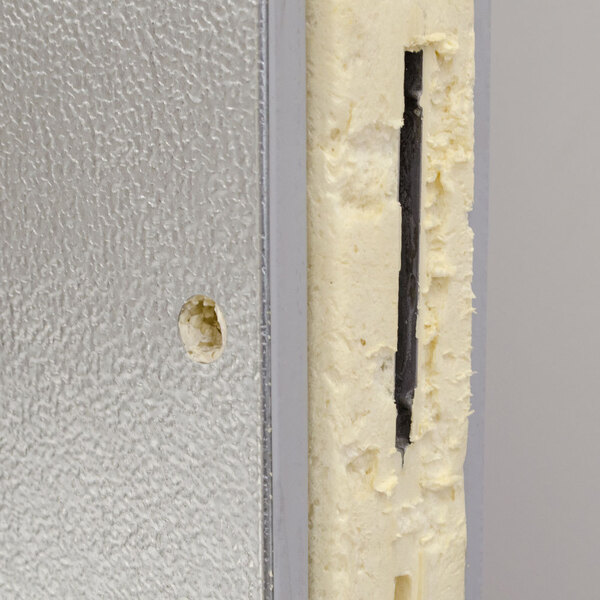

The panels on the Norlake Kold Locker outdoor walk-in cooler are made of coated 26 gauge corrosion-resistant embossed galvanized steel. The panels are insulated with 4" thick CFC-free HFC polyurethane to maintain consistent temperatures. An aluminum floor seals the structure and provides a durable surface for storage.

A weather protection kit is included to protect the Kold Locker from the elements. It includes 35 mm-thick roof materials, flashing strips, and roof trim.

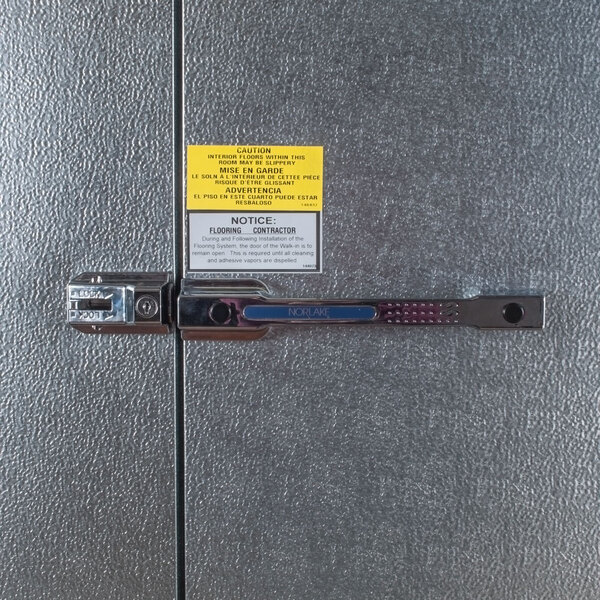

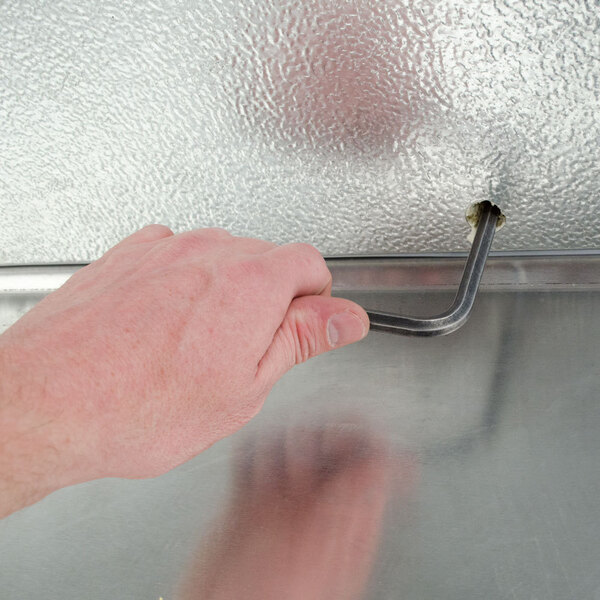

A self-closing door secures easily to the Norlake Kold Locker walk-in with cam lift hinges and has a 26" opening. A NL9800 deadbolt locking handle with independent padlock and an inside safety release protects your supplies and your employees. An externally mounted digital thermometer allows you to easily verify that the walk-in is maintaining the correct temperature, while a vapor proof light provides excellent interior visibility.

Overall Dimensions:
Width: 96"
Depth: 96"
Height (without refrigeration unit): 91"
Height (with refrigeration unit): 106"
Capsule Pak Height: 15"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

5-15P
This unit comes with a NEMA 5-15P plug.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
Made in America
This item was made in the United States of America.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Questions & Answers

Looking For Specific Info?

Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Are there any restrictions for where these outdoor, walk-in Norlake units can be used?

For the most part, these units are ready to be used almost anywhere. If you live in Florida, however, your unit may need to be modified to conform to local codes. If you are shipping this unit to Florida, please contact our Customer Service for help.

How can I determine the size of this product's interior?

The interior of a Norlake cooler can be determined by subtracting 8" from each exterior measurement. Each side panel is 4" thick, and each exterior measurement contains two panels. For Norlake freezers, the panels will be 4"-5" thick, so subtracting 8"-10" from each exterior measurement will give you a good idea of interior size.

My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?

Oregon residents: The state of Oregon charges a tagging fee for inbound shipments of this item. You will be contacted regarding this fee after placing your order.

If you have any questions, please contact Special Orders prior to making your purchase.

Where will the door be located on my walk-in unit?

The "Walk-In Floor Plans" document on this page has a diagram with all of the possible floor plan options for Norlake walk-in units. This shows the standard and alternate door configurations for each size option.

If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.

Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.

If you do not choose another floor plan, you will be shipped the standard configuration.

Will I need any additional components for my outdoor walk-in?

Yes, depending on the state in which you live, you may need additional accessories for your unit to be compliant with your local codes.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

When I order this product, can I request liftgate delivery?

This item is too large and heavy for a liftgate. It can be delivered with a truck-level loading dock or forklift. Contact our Customer Solutions team prior to placing your order if you would like to discuss other delivery options.
