Product Overview
- Offers versatility and superior food storage space all in one easy-to-assemble unit
- Capsule Pak cooling unit provides 100% usable interior storage space
- Self-contained Capsule Pak installs easily and uses R290 refrigerant
- Panels are made of coated 26 gauge corrosion-resistant embossed galvanized steel
- Self-closing door secures easily to the walk-in with cam lift hinges and has a 26" opening
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$439.99/Each
$354.99/Each
$8.92/Each
$222.08/Each
$902.68/Each
$301.48/Each
$63.49/Each
$53.49/Each
- Quantity
- 1/Each
- Shipping Weight
- 1412 lb.
- Width
- 72 Inches
- Depth
- 168 Inches
- Height
- 88 Inches
- Door Width
- 26 Inches
- Nominal Width
- 6 Feet
- Nominal Depth
- 14 Feet
- Door Height
- 78 Inches
- Height (with refrigeration unit)
- 103 Inches
- Nominal Height
- 7 1/3 Feet
- Refrigeration Unit Height
- 15 Inches
- Amps
- 12.28 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- BTU Per Hour
- 6,700 BTU
- Capacity
- 616 cu. ft.
- Compressor Location
- Top Mounted
- Door Style
- Swing
- Door Type
- Solid
- Features
- LED Lighting Made in America NSF Listed
- Floor
- Without Floor
- Horsepower
- 3/4 HP
- Plug Type
- NEMA 5-20P
- Refrigerant Type
- R-290
- Refrigeration Type
- Self-Contained
- Temperature Range
- 35 - 38 Degrees F
- Usage
- Indoor
Customer questions about this product
How can I determine the size of this product's interior?
My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?
If you have any questions, please contact Special Orders prior to making your purchase.

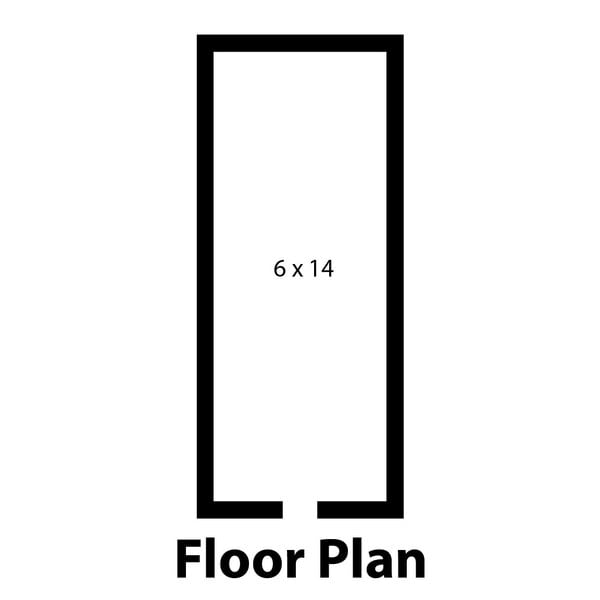

Where will the door be located on my walk-in unit?
If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.
Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.
If you do not choose another floor plan, you will be shipped the standard configuration.
Can this item fit through a standard height 80" doorway ?
When I order this product, can I request liftgate delivery?
Norlake KLB74614-CX Details

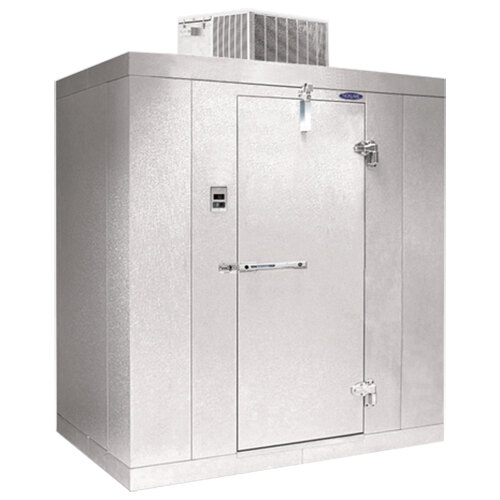

The Norlake Kold Locker 6' x 14' x 7' 4" indoor walk-in cooler offers versatility and superior storage space all in one easy-to-assemble unit!
An innovative, self-contained, top-mounted Capsule Pak cooling unit provides 100% usable interior storage space by utilizing a flush coil design, which keeps all cooling components outside the walk-in cooler.
The 3/4 hp, 115V cooling unit has a temperature range of 35 to 38 degrees Fahrenheit. The self-contained Capsule Pak installs easily and uses R290 refrigerant.

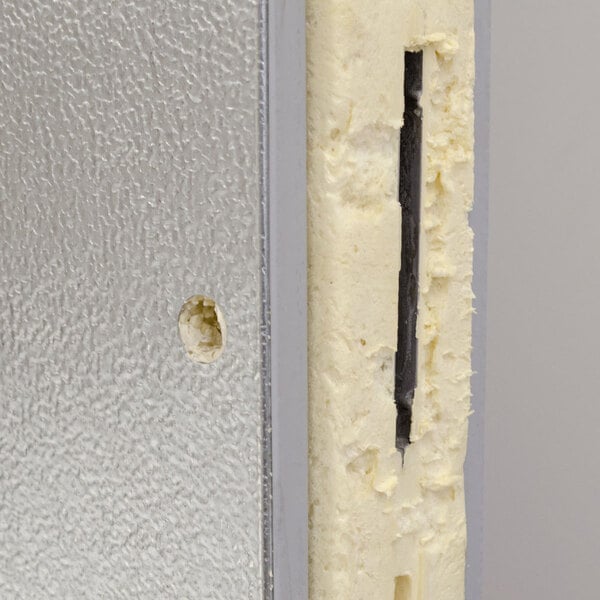

The panels on the Norlake Kold Locker indoor walk-in cooler are made of coated 26 gauge corrosion-resistant embossed galvanized steel. The panels are insulated with 4" thick CFC-free HFC polyurethane to maintain consistent temperatures. To stop conductivity at floor level, vinyl sealers are included on all floorless models.
An electric vaporizer unit evaporates condensed water inside the walk-in, eliminating the need for a drain line.

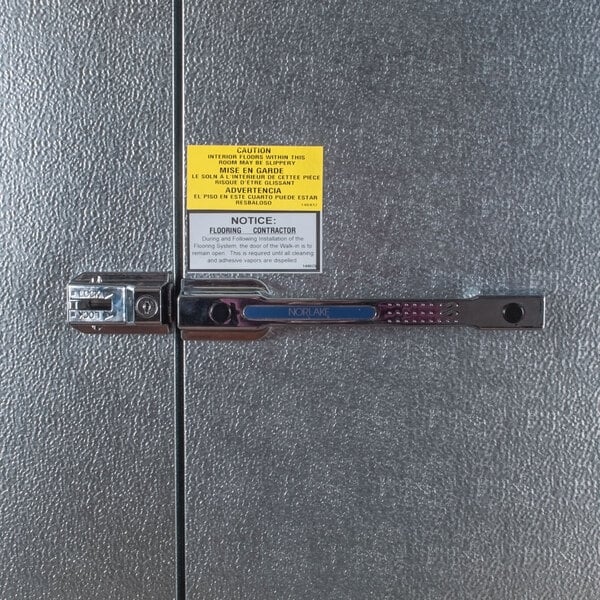

A self-closing door secures easily to the Norlake Kold Locker walk-in with cam lift hinges and has a 26" opening. A NL9800 deadbolt locking handle with independent padlock and an inside safety release protects your supplies and your employees. An externally mounted digital thermometer allows you to easily verify that the walk-in is maintaining the correct temperature, while a vapor proof light provides excellent interior visibility.
Capsule Pak Height: 15"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Made in America
This item was made in the United States of America.
5-20P
This unit comes with a NEMA 5-20P plug.
