Product Overview
- Versatile, high-speed oven delivers speeds up to 80% faster than a conventional oven
- Tri-plex technology offers high performance by combining microwave, convection, and impingement heat
- Access to over 100 programmed recipes on the KitchenConnect program with Wi-Fi or ethernet access
- Quick pre-heat and ventless operation to save energy; does not require a hood
- 2023 Kitchen Innovations Award recipient for progressively boosting efficiency and productivity
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 225 lb.
- Width
- 18 1/8 Inches
- Depth
- 26 15/16 Inches
- Height
- 24 7/16 Inches
- Interior Width
- 16 5/16 Inches
- Interior Depth
- 16 5/16 Inches
- Interior Height
- 6 5/8 Inches
- Amps
- 30 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208/240 Volts
- Wattage
- 6,000 Watts
- Application
- Maximum Performance Ovens
- Capacity
- 1.18 cu. ft.
- Color
- Black Silver
- Control Type
- Touchscreen
- Door Type
- Solid
- Features
- Programmable Ventless
- Finish
- Stainless Steel
- Heating Source
- Microwave, Impinged Convection, & Radiant
- Hinge Location
- Bottom
- Installation Type
- Countertop
- Maximum Temperature
- 527 Degrees F
- Number of Chambers
- 1 Chamber
- Number of Doors
- 1 Door
- Plug Type
- NEMA 6-30P
- Power Type
- Electric
- Type
- Rapid Cook Ovens
Merrychef X16SBMV6DFL1CLUS Details

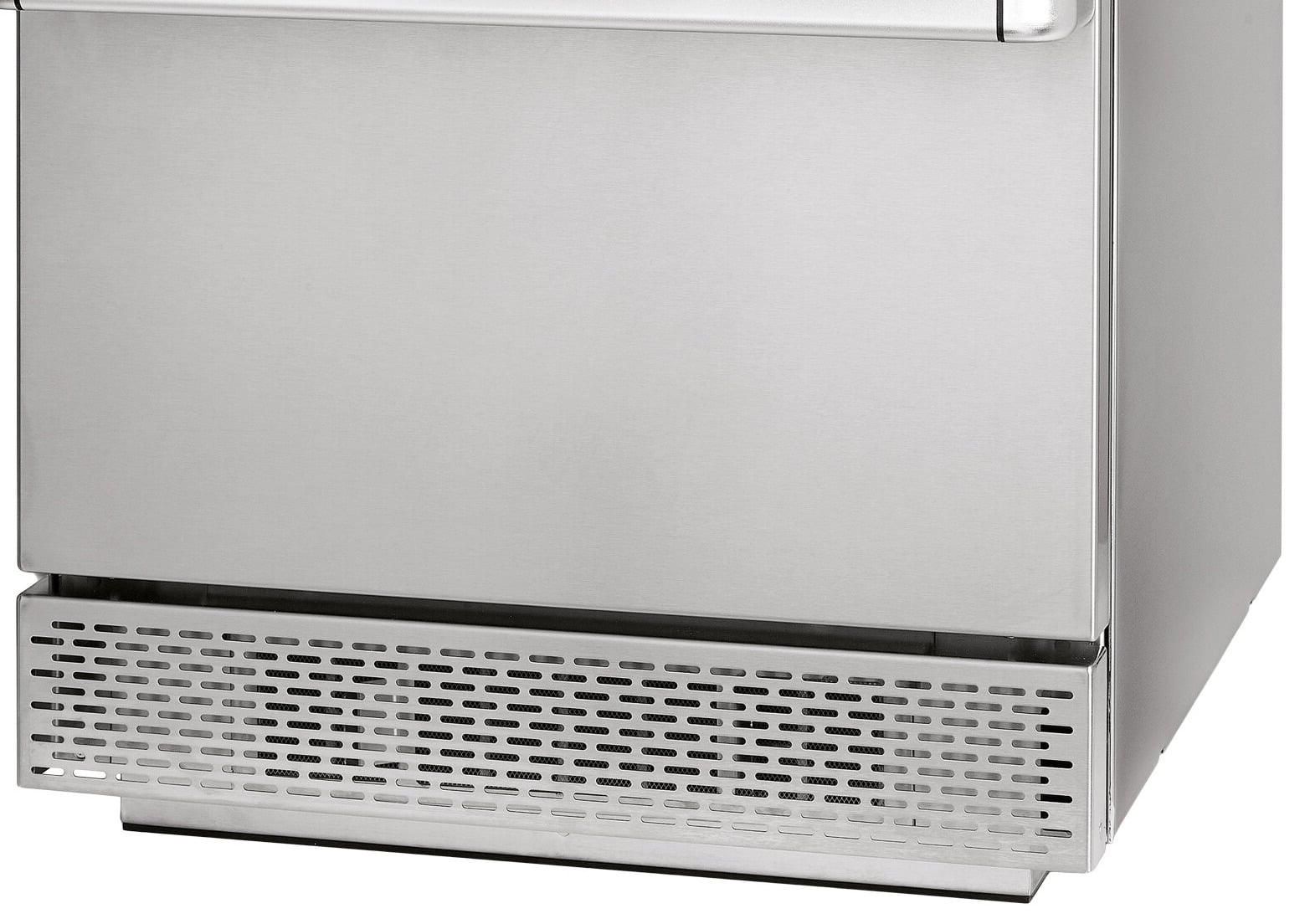

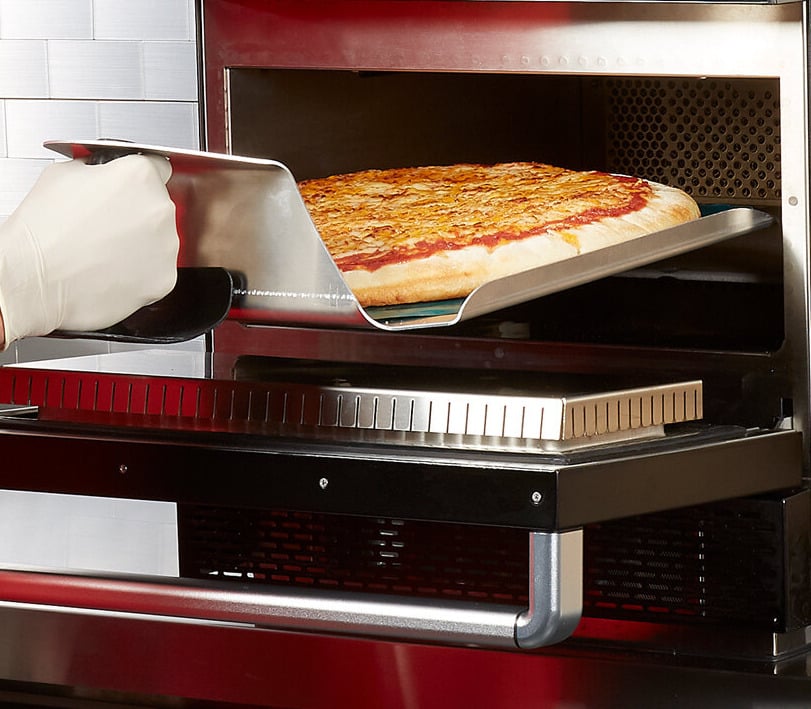

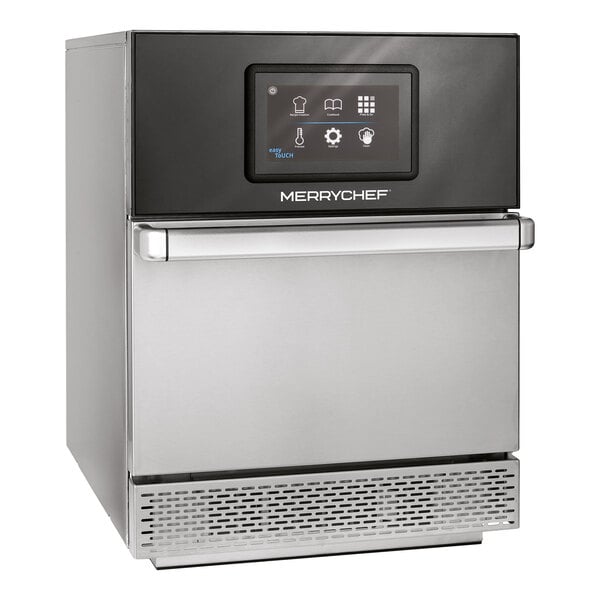

Cut down on cooking times and produce consistent, quality food at up to 80% faster than a conventional oven with the Merrychef conneX16 oven with stainless steel finish. Great for toasting subs, heating sandwiches, grilling, or warming frozen pizza at kiosks, concession stands, cafes, and quick-serve restaurants, the conneX16 features tri-plex technology with microwave, impingement, and convection heating to produce quality results at top speeds. This all-in-one unit allows you to prepare and cook food as it is ordered, which will reduce waste and costs. Plus, its built-in catalytic converter allows it to be operated without a venting system - which saves energy! Instead, a removable easy access front mounted air filter helps to maintain the performance and cleanliness of the unit and its surrounding area. This helps to keep a quiet and efficient environment in any kitchen.
Because of its ventless design, the oven is easy to place in your kitchen, as it doesn't require a hood for operation; however, as local codes may vary, please contact your local regulatory authority to confirm that ventless operation is permitted.
This unit has one of the largest cavity-to-width ratios with a stainless steel 12" x 12" cooking cavity inside of the 14" wide unit, making it the perfect unit for when space is a premium. When finished, the stainless steel body and large rounded interior corners are easy to clean.

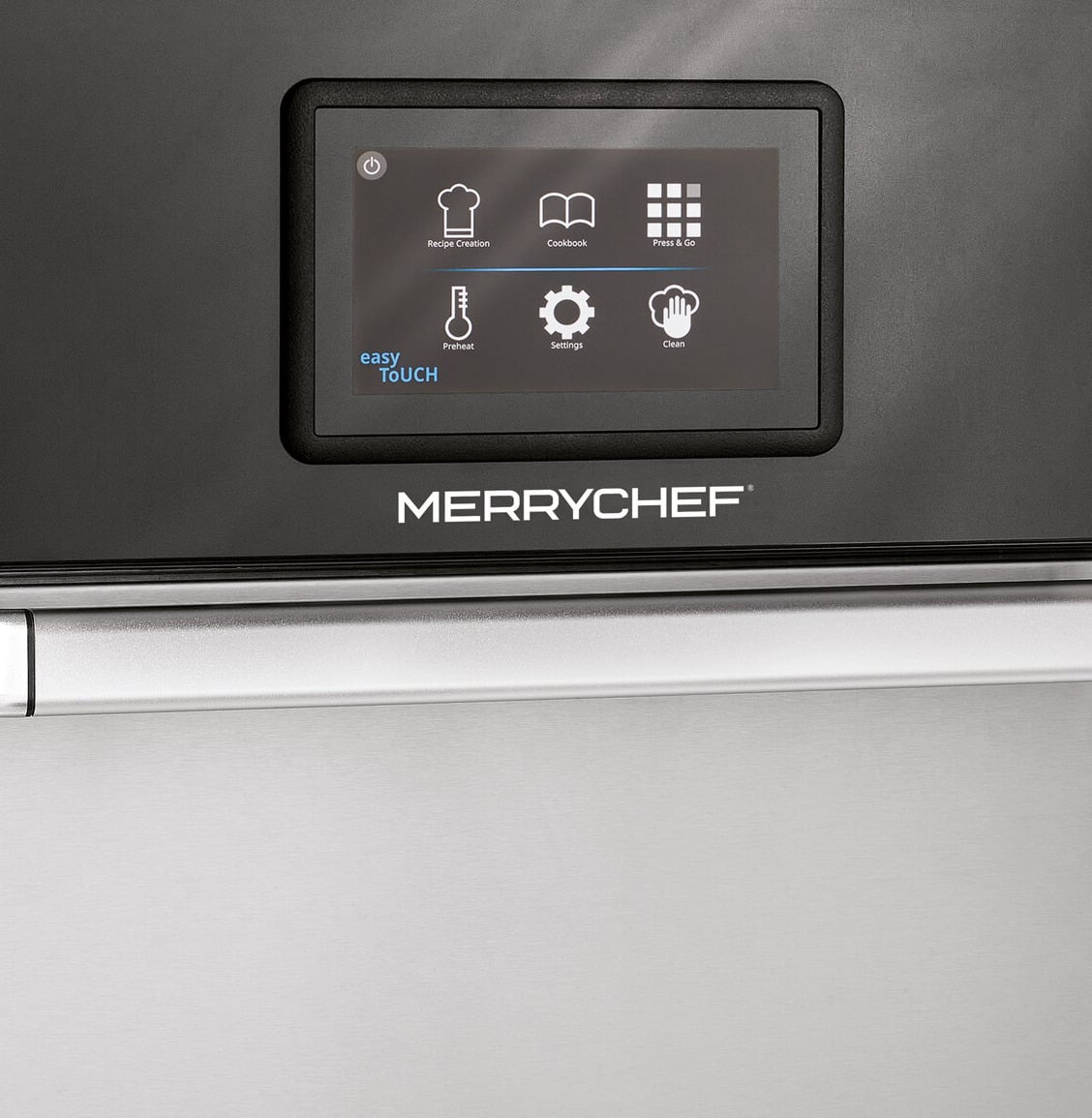

Designed with user convenience in mind, the conneX16 features the easyTouch 2.0 control panel, an icon-based color touch screen that comes with 100 pre-programmed recipes. This enables you to provide a wide variety menu to customers and in return increase sales! Wi-Fi and ethernet connectivity allows recipe pre-programmed recipes. Programs can easily be updated and ovens can be monitored from a far with the industry leading Welbilt KitchenConnect platform.
The Merrychef conneX16 also features a cool-touch door exterior for increased operator comfort and safety. It requires a 208/240V electrical connection for operation. The unit should not be stacked. With three different cooking levels for a variety of food items, this unit saves you time and energy and is a great addition to any establishment with a need to serve quality food in a short amount of time.
Oven Includes:
- flat cook plate
- guarded hand paddle with supporting sides
- full size cooking tray
- cool down pan
- cook plate liner
Overall Dimensions:
Width: 18 1/8"
Depth: 26 3/16"
Height: 24 15/16"
Interior Dimensions:
Width: 16 5/16"
Depth: 16 5/16"
Height: 6 5/8"
Capacity: 1.2 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
6-30P
This unit comes with a NEMA 6-30P plug.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
Kitchen Innovations Award Winner
This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.
