Name: Halifax LPSHO648 Type 1 Low Ceiling Sloped Front Commercial Kitchen Hood with PSP Makeup Air (Hood Only) - 6' x 48"
Brand: Halifax
SKU: 421LPSHO648
Price: 2369 USD
Availability: LimitedAvailability

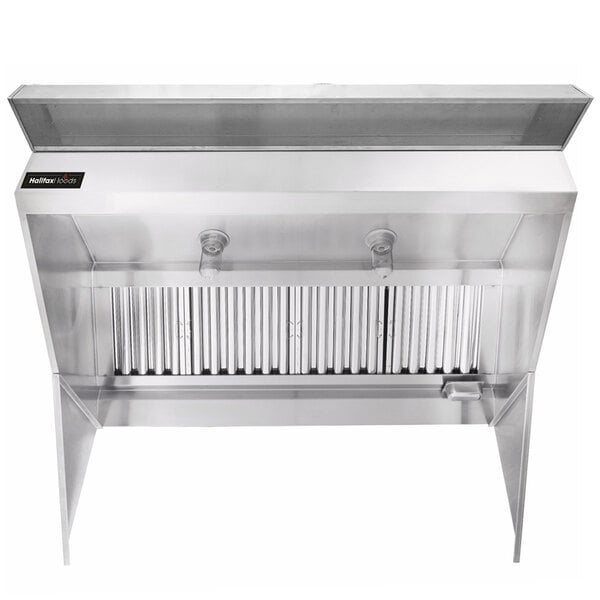

A stainless steel Halifax commercial kitchen hood with a vent.

Note: 6' hood shown

Only

$2,369.00/Each

Accessories & Options

Earn up to $71.07 back (7,107 points)with a Webstaurant Rewards Visa® Credit Card

Size: 6'

Usually Ships in 5-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

Type 1 hood for grease-producing equipment; designed to use PSP makeup air
Includes sloped-front hood canopy only; exhaust and supply fans sold separately
18-gauge 430 stainless steel construction on all exposed surfaces
For ceilings under 10'

UPC Code:400013631107

View all Halifax Commercial Kitchen Hoods

Quantity: 1/Each
Shipping Weight: 372 lb.
Length: 6 Feet
Depth: 48 Inches
Height: 12 - 24 Inches
Ceiling Height: Under 10'
Features: Made in America
Fire Suppression: Optional Fire Suppression
Plug Type: Hardwire
Style: PSP Makeup Air Hoods
Type: Type 1

Details

Keep your kitchen free of hazardous grease buildup with this Halifax LPSHO648 6' x 48" type 1 commercial kitchen hood. This unit is suitable for use over any equipment that has a surface operating temperature under 700 degrees Fahrenheit, and that is required by fire code to have a type 1 hood - this includes fryers, griddles, charbroilers, conveyor pizza ovens, or any equipment that produces grease during the cooking process. The hood removes the grease-laden vapors produced by your equipment and prevents them from accumulating in places where they could become a fire or sanitation hazard, leaving your kitchen clean and safe to use!

It is designed to use PSP (perforated supply plenum) makeup air, which introduces supply air into the room through the front of the hood. Makeup air is important in applications where the kitchen doesn't have enough fresh air coming in to replace the air exhausted by the hood, since your hood requires this replacement air to perform to specifications and remove grease, smoke, and VOCs effectively. It contains the hood only, the exhaust fan and fresh air / makeup fans are sold separately.

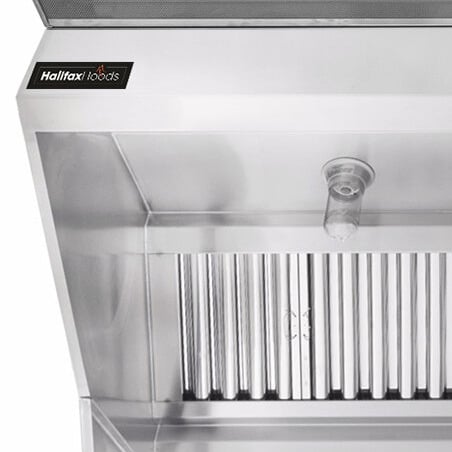

The hood uses (2) 20" x 20" and (2) 20" x 16" baffle-type filters, and the filters are made from stainless steel to provide durability and make cleaning easy. Grease extracted by the filter is collected in a grease trough, which drains into a stainless steel grease cup for disposal. 18-gauge 430 stainless steel is used on all exposed surfaces to give it excellent durability and cleanability, while the MIG-welded frame provides seamless, liquid-tight joints. The hood features a sloped-front canopy design that is great for low ceilings, providing extra front clearance and comfort for chefs, and dropping down close to the equipment in the back. This model is also engineered with a 3" air gap on the back of the hood, which provides clearance and protection for combustible walls where code requires.

2 pre-wired lights illuminate the equipment under your hood so that you can easily see what you're doing while cooking, and they require a 115V electrical connection to the junction box. This hood should be used in applications where the ceiling is under 10' tall. 4 hanger brackets are included to make installation easy. It must be hard-wired, cords and plugs are not included.

Overall Dimensions:
Length: 6'
Depth: 48"
Height (Front): 12"
Height (Back): 24"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

This product is considered hazardous under US DOT shipping regulations. Due to the hazardous shipping restrictions, this item requires a signature for delivery and cannot be returned. We are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

How do I choose the right hood for my application and local codes?

Each local jurisdiction has different rules and regulations regarding exhaust hoods. We recommend you contact your local authority to obtain the specific requirements and regulations for your intended application in your respective jurisdiction before placing your order; typically the approval authority will be the building, fire, or health department. We may also reach out to gather additional information about the layout of your application to help ensure that this hood will meet your needs and suggest modifications so that you are getting the best performance possible for your specific layout. For further assistance in selecting the right hood for your application, please contact our Customer Solutions team.

How do I know what size hood I need?

To be compliant with NFPA and International Mechanical Code, canopy hoods must be sized to have a minimum 6” (152mm) overhang beyond the top horizontal edge of the surface of the cooking appliance on all sides. To size your hood accordingly, measure the horizontal distance (width) of the cooking surface, add 12" to cover the 6" for each side, and round up to the nearest foot. Example: You have a 36” flat top griddle, 24” charbroiler, 24” range, and a 16” deep fryer. This setup has a total width of 100", plus 12" for overhang, which is 112" or 9 feet 4". Round this up to a 10' hood.

I am interested in an “island” type hood in the middle of the kitchen. Where can I order this type of Hood?

Island hoods require a quote from our special orders team. Please email Customer Solutions with any questions.

I am interested in ordering fire suppression with my hood, what is involved in that process?

Fire suppression systems are frequently required by code for type 1 hoods, and need to be designed to fit the specific layout of your cooking line.

Kidde Systems use APC (Aqueous Potassium Carbonate) wet chemical fire suppression. The tank is typically exposed unless a cabinet is requested. They come pre-filled.

Ansul Systems use Ansulex wet chemical fire suppression. The tank is typically installed in a wall-mounted cabinet. They must be filled and charged.

Both systems meet UL300 standards, and will require a certified fire safety installer to hook up, test, and pass inspection.

Follow these simple steps to add a system to your hood!

1.) Choose whether you would like an Ansul Deluxe or Kidde fire suppression system for your hood, under the "Fire Suppression" dropdown. The Ansul Deluxe system includes the gas shut-off valve, enclosure, chemical, and nitrogen cartridge.

2.) A member of our team will reach out to gather more information about your application so that the fire suppression system can be configured correctly. The sooner you provide answers to these questions, the sooner we can proceed with your order!

3.) If our team has any additional questions or concerns based on the information provided, we will work with you to resolve them and find the correct fire suppression solution for your business.

Is anything else needed to process my hood order?

Yes! In the Resources & Downloads section we list 2 forms – Receiving Agreement & Order Acknowledgement. These forms are required by the manufacturer to begin processing your order. We encourage you to promptly complete these forms after your order has been placed and email them directly to [email protected] with your order number in the subject line. If you selected Fire Suppression as part of your hood package, please also complete and submit the Fire Suppression Layout form located in the Resources & Downloads section. A member of our team will also contact you after the hood is ordered to ensure completion of the forms and processing of the order.

My wall / ceiling is made from combustible materials. Will that pose a problem?

Many common building materials are considered non-combustible such as stone, brick, plaster, steel, concrete, and glass; however, if your walls, studs, joists, or ceiling are made of combustible materials such as light-weight wood framing or heavy timber, special accommodations must be made if the hood will be mounted within 18 inches of the combustible material. Some materials, such as drywall or drop tile, may vary based upon local codes. We recommend you consult your Authority Having Jurisdiction (AHJ) if there are any specific questions regarding what is considered a combustible material. We will work with you to determine if adjustments are necessary using the information you provide in the dropdowns and after your order is placed.

Ask your own question!

Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
UL Listed, Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in Canada.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
