Product Overview

  • Type 2 hood for heat and fume removal only; exhaust-only system
  • Includes box-style hood canopy only; exhaust fan sold separately
  • 18-gauge 430 stainless steel construction on all exposed surfaces
  • For ceilings 10' or higher
UPC Code:400013631459


Shipping Weight
310 lb.
7 Feet
48 Inches
20 Inches
Ceiling Height
10' or Over
Made in America
Fire Suppression
Without Fire Suppression
Heat Removal Hoods
Type 2

Customer questions about this product

How do I choose the right hood for my application and local codes?

Each local jurisdiction has different rules and regulations regarding exhaust hoods. We recommend you contact your local authority to obtain the specific requirements and regulations for your intended application in your respective jurisdiction before placing your order; typically the approval authority will be the building, fire, or health department. We may also reach out to gather additional information about the layout of your application to help ensure that this hood will meet your needs and suggest modifications so that you are getting the best performance possible for your specific layout. For further assistance in selecting the right hood for your application, please contact our Customer Solutions team.

How do I know what size hood I need?

To be compliant with NFPA and International Mechanical Code, canopy hoods must be sized to have a minimum 6” (152mm) overhang beyond the top horizontal edge of the surface of the cooking appliance on all sides. To size your hood accordingly, measure the horizontal distance (width) of the cooking surface, add 12" to cover the 6" for each side, and round up to the nearest foot. Example: You have a 36” flat top griddle, 24” charbroiler, 24” range, and a 16” deep fryer. This setup has a total width of 100", plus 12" for overhang, which is 112" or 9 feet 4". Round this up to a 10' hood.

I am interested in an “island” type hood in the middle of the kitchen. Where can I order this type of Hood?

Island hoods require a quote from our special orders team. Please email Customer Solutions with any questions.

Is anything else needed to process my hood order?

Yes! In the Resources & Downloads section we list 2 forms – Receiving Agreement & Order Acknowledgement. These forms are required by the manufacturer to begin processing your order. We encourage you to promptly complete these forms after your order has been placed and email them directly to [email protected] with your order number in the subject line. If you selected Fire Suppression as part of your hood package, please also complete and submit the Fire Suppression Layout form located in the Resources & Downloads section. A member of our team will also contact you after the hood is ordered to ensure completion of the forms and processing of the order.

Ask your own question!

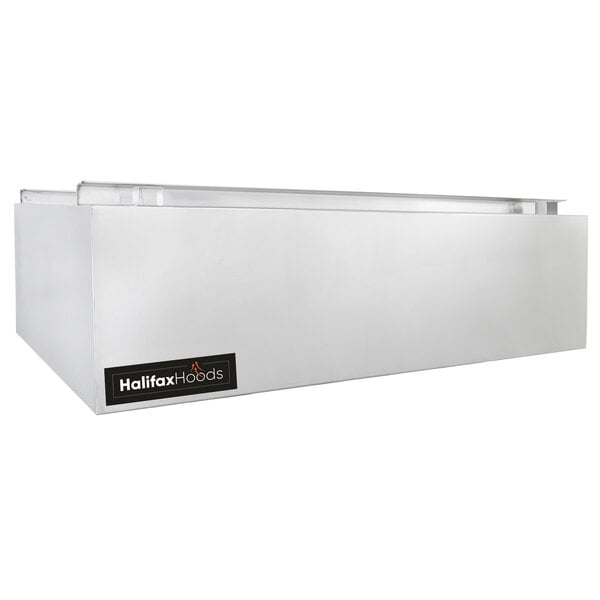

Keep your kitchen free of heat and fumes with this Halifax HRHO748 7' x 48" type 2 heat and fume removal hood. This unit is suitable for use over any equipment that has a surface operating temperature under 600 degrees Fahrenheit, and that is required by fire code to have a type 2 hood - this includes equipment such as ovens and small kitchen appliances. It is not designed for use over grease-producing equipment. The hood removes heat and any odors produced by your equipment to make your kitchen a much more comfortable place for employees to work! It is an exhaust-only design with no makeup or supply fan and contains the hood only, the exhaust fan is sold separately.

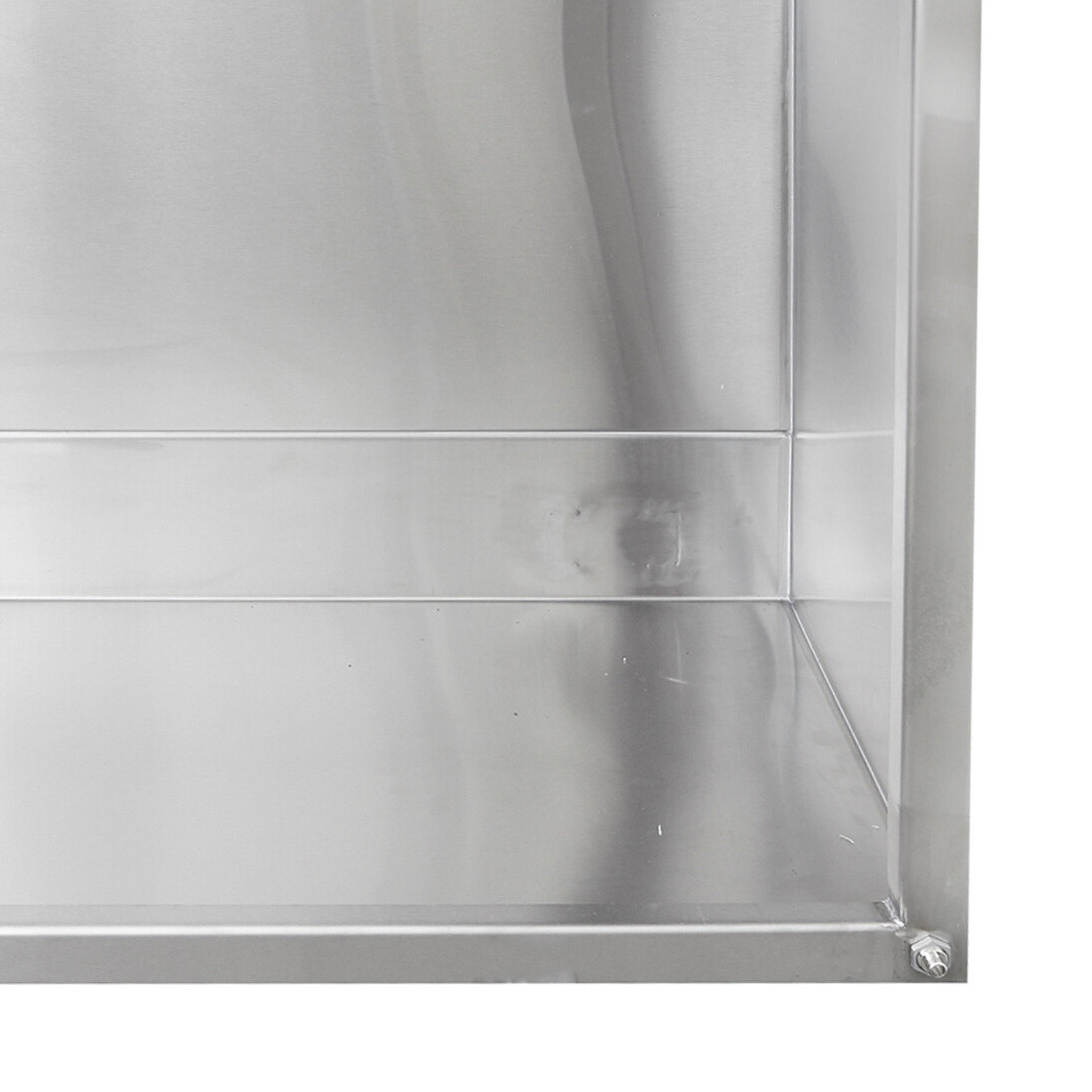

The hood uses (1) 14" x 14" wire mesh filter. 18-gauge 430 stainless steel is used on all exposed surfaces to give it excellent durability and cleanability, while the MIG-welded frame provides seamless, liquid-tight joints. The hood features a box-style canopy design to provide superior performance.

This hood should be used in applications where the ceiling is 10' or taller. 4 hanger brackets are included to make installation easy.

Overall Dimensions:
Length: 7'
Depth: 48"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
