Fuel Type: Liquid Propane
Installation Services
Product Overview
- (5) 30,000 BTU "U" shaped burners
- Front drain for easy transfer of grease into another container
- Stainless steel front, sides, side griddle splashguards, and backsplash
- 6" adjustable stainless steel legs
- Individual electronic thermostat (150-450 degrees Fahrenheit) for each burner
- 1" thick griddle plate
- Independent thermostatic controls
- 120V; liquid propane
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 765 lb.
- Width
- 60 Inches
- Depth
- 35 5/8 Inches
- Height
- 23 3/8 Inches
- Voltage
- 120 Volts
- Burner BTU
- 0 - 30 BTU
- Burner Style
- U-Shaped
- Control Type
- Thermostatic
- Features
- NSF Listed
- Gas Connection Size
- 3/4 Inches
- Installation Type
- Countertop
- Number of Burners
- 5 Burners
- Plate Thickness
- 1 Inch
- Plug Type
- NEMA 5-15P
- Power Type
- Liquid Propane
- Temperature Range
- 150 - 450 Degrees F
- Total BTU
- 150,000 BTU
- Type
- Griddles
- Usage
- Heavy Duty
Garland / US Range CG-60F LP Details

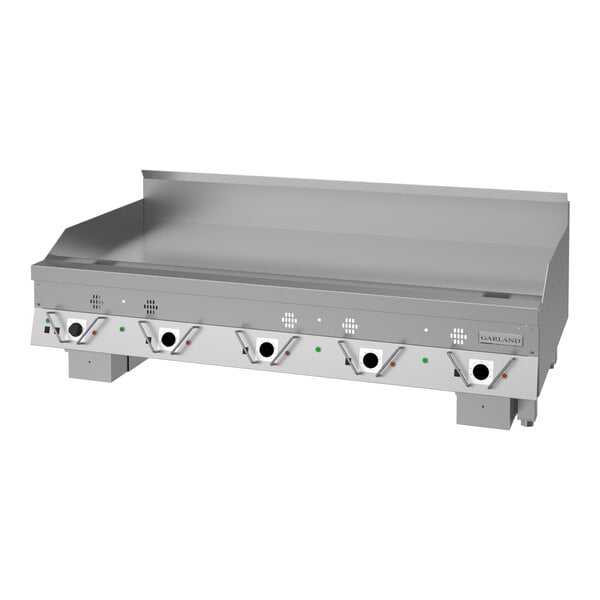

The Garland CG-60F 60" Master series production griddle boasts five powerful 30,000 BTU U-shaped burners across its 60" width, each with precise thermostatic controls. It is the griddle of choice for high volume chain restaurants, busy drive-thrus, and other applications that require rapid heat-up, recovery, even heating, and durability.
Its 1" thick griddle plate ensures even heating and heat retention, and each thermostatic control has its own on/off switch to help you conserve energy during off-peak times. Thermostatic controls offer more precise temperature settings for consistency and easy use.
The included sidesplashes, 7 5/8" backsplash, and front full-width grease trough are made of stainless steel. This model also has stainless steel front grease chute extensions that make it easy to transfer grease into another container for disposal, making cleanup simple when you are finished cooking for the day. Four 6" adjustable legs facilitate easy under-griddle access for cleaning. This model requires a 120V electrical connection and a liquid propane connection for operation.
Overall Dimensions:
Left to Right: 60"
Front to Back: 35 5/8"
Height: 23 3/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I cancel my order for this Garland item if I change my mind?
Can this Garland product be shipped directly to my home?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
5-15P
This unit comes with a NEMA 5-15P plug.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
