Product Overview

  • 60 lb. oil capacity per fryer (180 lb. total); 18" x 14" x 4 1/4" frying area per frypot
  • Programmable controller with 10 programmable product buttons and a 40 product library, melt cycle, boil out, and cook compensation
  • Filtration system is a convenient way to save money by using 15-20% less oil, upwards of 33% less energy, and 10-15% less space
  • Exclusive Thermo-tube heat transfer system efficiently transfers energy into the oil
  • 208V, 3 Phase, 51 kW
UPC Code:400013285171

Frymaster 31814EF SMART4U LANE 208/3 Specs

Quantity
1/Each
Shipping Weight
815 lb.
Height
45 3/8 Inches
Amps
144 Amps
Phase
3 Phase
Voltage
208 Volts
Wattage
51 Kilowatts
Capacity
180 lb.
Element Style
Ribbon
Features
Built-In Filtration System  Energy Star Qualified  Made in America  NSF Listed  Programmable Controls
Number of Fry Baskets
3 Fry Baskets
Number of Fry Pots
3 Fry Pots
Plug Type
Hardwire
Power Type
Electric
Type
Electric Floor Fryers
Usage
Heavy Duty

Frymaster 31814EF SMART4U LANE 208/3 Details

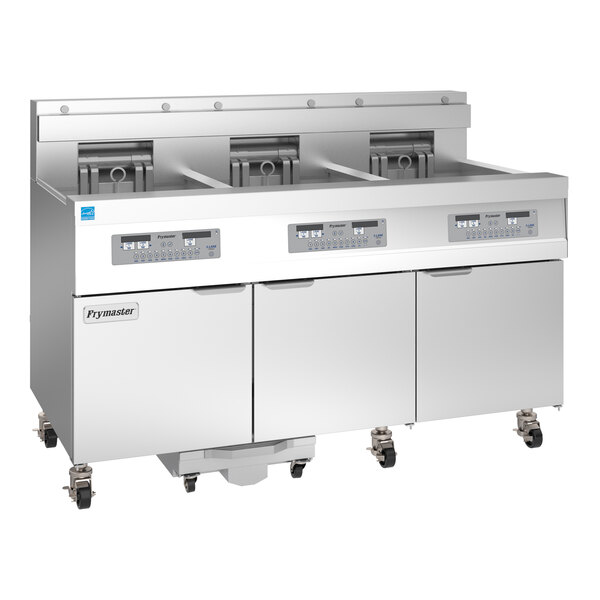

Fry anything from french fries to chicken wings with this Frymaster 31814EF 3 unit floor fryer with SMART4U Lane controls! A spacious 60 lb. oil capacity per frypot (180 lb. total) combines with powerful cooking and fast recovery technology to provide you with a unit that keeps pace with customer demands on even the busiest of nights. This model boasts renowned SMART4U Lane controllers that feature 10 programmable product buttons and a 40 product library to help you maintain high quality standards. The controls also have temperature check, melt cycle, boil out, cook compensation, and hold timer features. Since you can set different cooking times and recipes for each of the three basket locations, or lanes per frypot, you can more easily cook different types of food items at once.

The fryer's high-output performance is rivaled only by its incredibly efficient engineering! Its exclusive Thermo-Tube heat transfer system efficiently transfers energy into the oil, saving energy and extending oil life. A robust RTD 1 degree compensating temperature probe provides accurate temperature readings to avoid temperature overshoot. Plus, because it detects even the slightest temperature variants, you can be sure that you're always producing the highest quality food, at a consistent rate.

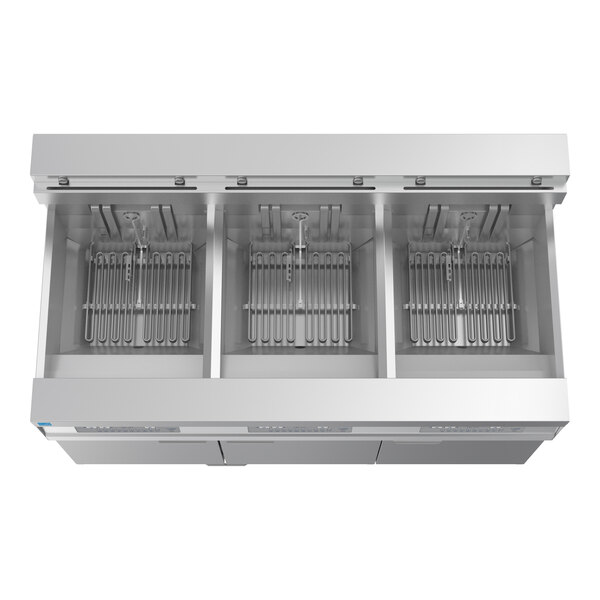

A built-in filtration system further optimizes the quality and life of your oil, keeping it clean and capable of producing flavorful food. And since the filter is contained within the fryer, it eliminates the need for the additional floor and storage space required by portable filtration units! This fryer features stainless steel frypots, doors, sides, and front for impressive durability. A sloping bottom ensures fast draining for easy cleaning and includes three twin fryer baskets per frypot for added convenience. This fryer boasts 51 kW of cooking power and requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Left to Right: 60"
Front to Back: 30 7/8"
Height: 45 3/8"
Frying Area: 18" x 14" x 4 1/4" per frypot
Capacity: 180 lb.

Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
