This product is no longer available. We've left this page up for reference only.

Usually Ships in 12-15 Weeks from manufacturer

Lead times vary based on manufacturer stockEstimated shipping time tooltip

Product Overview

  • 60 lb. oil capacity per fryer (180 lb. total); 18" x 14" x 4 1/4" frying area per frypot
  • SMART4U 3000 controls offer push button cooking for up to 20 products and monitor oil management functions
  • Filtration system is a convenient way to save money by using 15-20% less oil, upwards of 33% less energy, and 10-15% less space
  • Exclusive Thermo-tube heat transfer system efficiently transfers energy into the oil
  • 208V, 3 Phase, 51 kW
UPC Code:400013285515

Frymaster 31814EF SMART4U 3000 208/3 Specs

Shipping Weight
815 lb.
45 3/8 Inches
3 Phase
208 Volts
51 Kilowatts
180 lb.
Element Style
Built-In Filtration System

Energy Star Qualified

Made in America

NSF Listed

Programmable Controls
Number of Fry Baskets
Number of Fry Pots
Plug Type
Power Type
Electric Floor Fryers

Frymaster 31814EF SMART4U 3000 208/3 Details

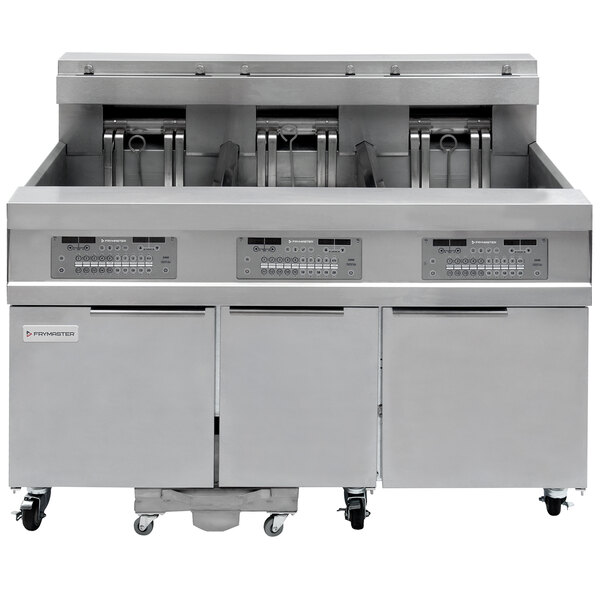

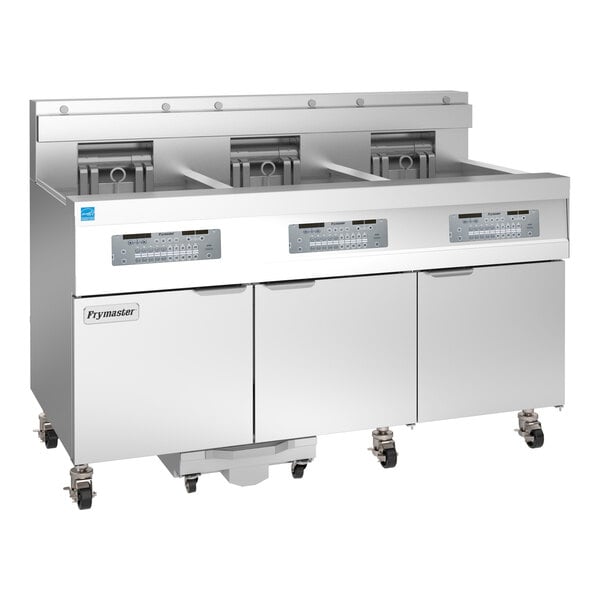

Fry anything from french fries to chicken wings with this Frymaster 31814EF 3 unit floor fryer with SMART4U 3000 controls! A spacious 60 lb. oil capacity per frypot (180 lb. total) combines with powerful cooking and fast recovery technology to provide you with a unit that keeps pace with customer demands on even the busiest of nights. This model boasts renowned SMART4U 3000 controllers that time the cook cycle and signal an audible alarm when cooking is complete, while also offering simple push button cooking for up to 20 products! The controllers top off the oil automatically for simple maintenance and monitor oil management functions like cook counts, time-to-filter alerts, and step-by-step instructions for filtering, oil disposal, and boil-out. Each controller also has a melt cycle, a lighted digital display, and other helpful features.

The fryer's high-output performance is rivaled only by its incredibly efficient engineering! Its exclusive Thermo-Tube heat transfer system efficiently transfers energy into the oil, saving energy and extending oil life. A robust RTD 1 degree compensating temperature probe provides accurate temperature readings to avoid temperature overshoot. Plus, because it detects even the slightest temperature variants, you can be sure that you're always producing the highest quality food, at a consistent rate.

A built-in filtration system further optimizes the quality and life of your oil, keeping it clean and capable of producing flavorful food. And since the filter is contained within the fryer, it eliminates the need for the additional floor and storage space required by portable filtration units! This fryer features stainless steel frypots, doors, sides, and front for impressive durability. A sloping bottom ensures fast draining for easy cleaning and includes three twin fryer baskets per frypot for added convenience. This fryer boasts 51 kW of cooking power and requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Left to Right: 60"
Front to Back: 30 7/8"
Height: 45 3/8"

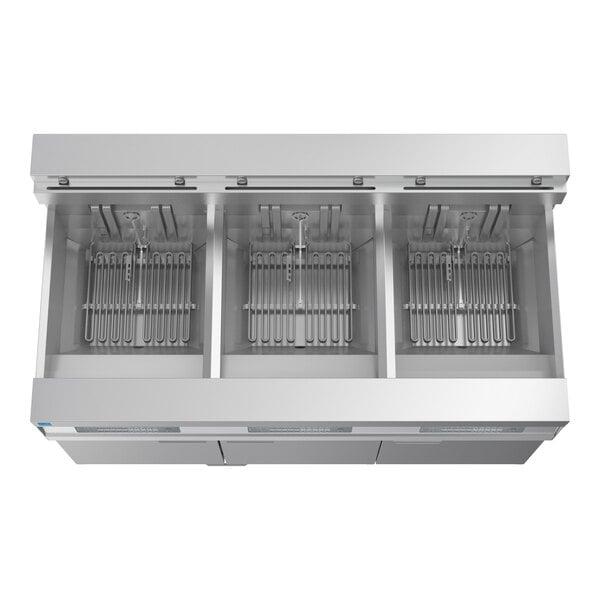

Frying Area: 18" x 14" x 4 1/4" per frypot
Capacity: 180 lb.

Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for
Frymaster 31814EF SMART4U 3000 208/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note that this item is subject to a 15% export warranty administration fee for all international orders.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
