Fuel Type: Liquid Propane

Installation Services

Check if installation is currently available for your area.

Usually Ships in 3-4 Months from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • SMART4U Lane controls simplify the cooking and cleaning procedures
  • 63 lb. gas tube frypot with 3 twin-sized baskets
  • Wide cold zone
  • Thermo-tube heat transfer system
  • 119,000 BTU power output
  • (4) 3" adjustable swivel casters
  • Liquid Propane
UPC Code:400011676339

Frymaster 11814G SMART LANE LP Specs

Quantity
1/Each
Shipping Weight
225 lb.
Width
20 Inches
Depth
33 1/8 Inches
Height
47 3/4 Inches
Fry Pot Width
18 Inches
Fry Pot Depth
14 Inches
Fry Pot Height
3 3/4 Inches
Amps
1 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Burner Style
Tube
Cabinet
Stainless Steel
Capacity
63 lb.
Features
Energy Star Qualified  Made in America  NSF Listed  Programmable Controls
Gas Connection Size
3/4 Inches
Number of Fry Baskets
3 Fry Baskets
Number of Fry Pots
1 Fry Pot
Power Type
Liquid Propane
Split Pot
Without Split Pot
Total BTU
119,000 BTU
Type
Gas Floor Fryers

Frymaster 11814G SMART LANE LP Details

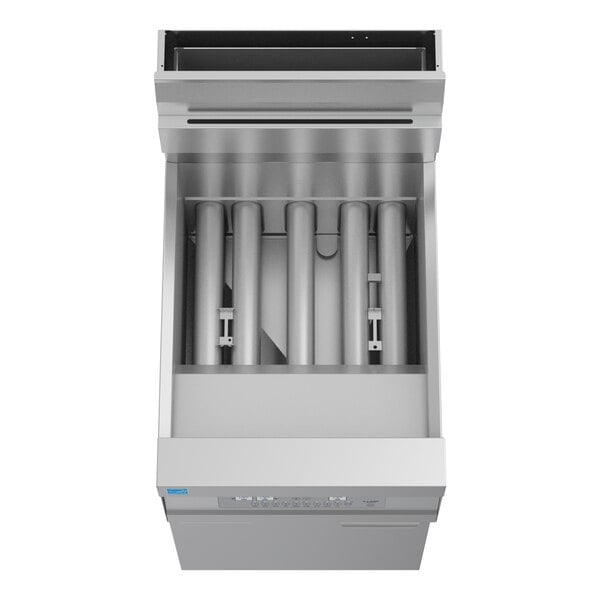

This Frymaster 11814G single high-production liquid propane fryer saves you space while still performing at a high efficiency level. Its Thermo-tube heat transfer system features 6" diameter tubes that provide an unmatched heat-to-oil transfer, effectively using less energy to provide the necessary degree of heat and extending the oil life. The tubes are made with highly durable, stainless steel alloy flow baffles, which are essential for the efficient transfer of the energy input to the surrounding oil.

Also contributing to the fryer's energy and oil efficient design is its SMART4U Lane control system. This system eliminates the guess work from oil management by walking the operator through every facet of operation and maintenance. It features programmable product buttons that offer cook time and oil temperature accuracy for specific kinds of food. Its digital display conveniently shows oil temperature, cook counts, and filter operation guidance, all of which are essential to maintaining the fryer's quality production and energy efficiency.

This fryer is made of stainless steel and is capable of withstanding use for long hours on a daily basis. Its 63 lb. capacity frypot enables you to use 3 twin-sized baskets at a time, allowing for a large quantity of food to be cooked. Also, the frypot is conveniently sloped toward the front of the fryer and this, combined with the wide cold zone and large drain line, makes it easy to remove sediment and old oil. The 4 3" adjustable swivel casters provide enhanced maneuverability, which means cleaning behind the unit is a breeze. Comes with 120V controls.

Overall Dimensions
Width: 20"
Depth: 33 1/8"
Height: 47 3/4"


Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
