This product is no longer available. We've left this page up for reference only.

Installation Services

Check if installation is currently available for your area.

Enter ZIP Code >

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Heavy-duty stainless steel construction
  • Constant dish rack movement offers faster washing and rinsing
  • Low water and energy usage
  • Built-in diagnostic system provides service logs and troubleshooting assistance
  • 219 racks/hr; 0.59 gal/rack; 208V
UPC Code:400015798235

Moyer Diebel MD66 Specs

Shipping Weight
1000 lb.
82 Inches
58 3/8 Inches
Conveyor Length
66 Inches
60 Hertz
3 Phase
208 Volts
15 Kilowatts
Booster Wattage
16 - 27 Kilowatts
Left to Right
High or Low Temp
High Temp
Interior Clearance
20 Inches
Racks Per Hour
Conveyor Dishwashers
Wash Horsepower
1 - 2 HP
Water Inlet Size
3/4 Inches
Water Usage
0.59 Gallons Per Rack

Customer questions about this product

How can I be sure that this product will fit my space?

Upon receiving the order, a member of our Special Order Team will contact you to confirm the specifications of your order’s measurements to be sure that your Conveyor Dishwasher will fit exactly as expected.

Ask your own question!

Moyer Diebel MD66 Details

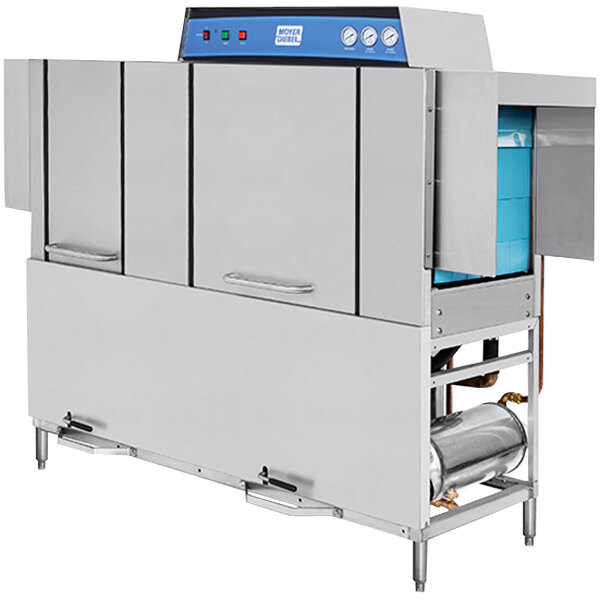

Streamline your dishwashing operation with the Moyer Diebel MD66 66" single tank rack conveyor dishwashing machine with 22" prewash. Feeding left to right, the anti-jam conveyor system provides smooth and near constant movement of the dish rack, resulting in consistent and thorough washing and rinsing. Thanks to its built-in diagnostic system, this machine offers service logs and intelligent troubleshooting to assist with cutting down on service calls. (2) 20" x 20" racks, one flat and one peg, included to hold soiled wares.

This high-performance machine cleans up to 219 racks per hour using only 0.59 gallons per rack! A 22" prewash is designed to loosen up stuck on food particles for a more complete wash. Constructed of easy-to-clean stainless steel, this machine is built tough to hold up to the wear-and-tear of being used in a high-volume commercial kitchen. Connections include a vent fan interlock connection and a table limit switch, as well as single point water and electrical connections. This unit requires a 208V electrical connection for operation. It requires a 3/4" NPT water connection and has a 1 1/2" NPT manual ball valve drain.

Overall Dimensions:
Width: 82"
Depth: 28 1/2"
Height: 58 3/8"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
