Product Options

Earn up to $913.02 back (91,302 points)with a Webstaurant Rewards Visa® Credit Card

  • Uses 0.68 gallons per rack
  • Up to 225 racks per hour
  • 208V, 3 Phase
UPC Code:400010104956
Shipping:Usually Ships in 2-3 Weeks
Jackson AJX66H R-L 208/3 Specs
Quantity1/Each
Width82 Inches
Depth31 Inches
Height75 1/2 Inches
Conveyor Length66 Inches
Amps60.1 Amps
Hertz60 Hertz
Phase3 Phase
Conveyor Horsepower1/4 HP
Conveyor Speed6.2 Feet Per Minute
High or Low Temp High Temp
Interior Clearance25 Inches
Minimum Water Inlet Temperature 110 Degrees F (140 Recommended)
NSF Listed Yes
Plug Type Hardwire
Racks Per Hour225
Type Conveyor Dishwashers
Wash Horsepower2 HP
Wash Tank Capacity21 gal.
Water Inlet Size1/2 Inches
Water Temperature180 Degrees F
Water Usage0.68 Gallons Per Rack

Jackson AJX66H R-L 208/3 Details

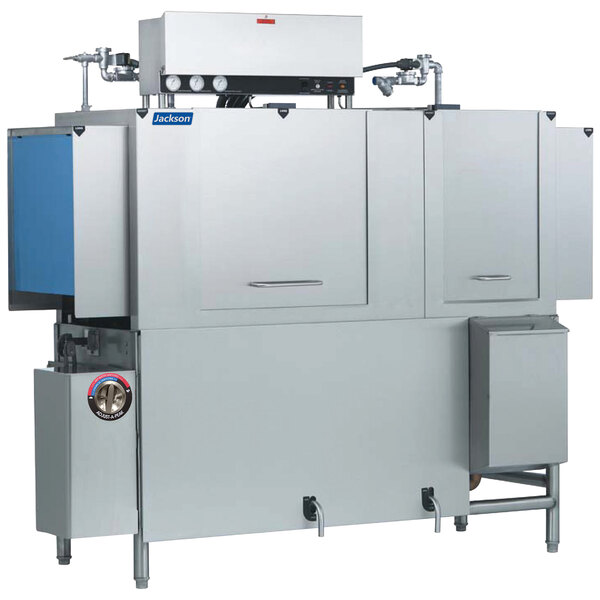

The Jackson AJX-66 can clean up to 225 racks per hour! With 25" of clearance, it's able to accommodate oversize sheet pans, mixing bowls, and other large kitchen items.

A full 18" of clearance between the wash and rinse cycles reduces "splashover" of wash water onto rinsed dishware. Additionally, this 66" model has a 22" pre-wash section with 2 upper and 1 lower pre-wash arms.

The Jackson AJX-66 conveyor dish machine features manifold-style wash arms that are easy to remove and provide superior wash action. Its exclusive "Energy Guard" system saves water and energy. Three "triggers" activate and deactivate wash and rinse cycles when the rack passes by them, reducing wasted water and electricity.

Other useful features include easy-to-use electromechanical controls, adjustable conveyor speed, durable stainless steel scrap baskets, and fully automatic operation, including auto-fill. It requires a 208V, 3 phase electrical connection.

Overall Dimensions:
Width: 82"
Depth: 31"
Height: 75 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection.
